102 Connecting the LAN Interface Units to the System

Connecting an LIU to the System

To connect an LIU directly to the cross-connect panel, proceed as follows:
(1) Locate the six-conductor Teladapt cord shipped with the LIU.
(2) Plug one end of the cord into the assigned Teladapt jack. This may be a jack on
(3) Run the cable to the LIU and plug it into the rear of the LIU. (See Fig. 11-3.)

Removing an LIU from Service

To remove an LIU from service, make sure all port personalities on the LIU and the
LIU itself have been courtesied down in System Administrative Services first.
(Courtesying down is a function in SAS that allows software and hardware units to
be taken out of service individually, without interfering with other functioning
units.) For procedures for removing an LIU from service, see the Guide to System
Administrative Services, 450-1011-301.

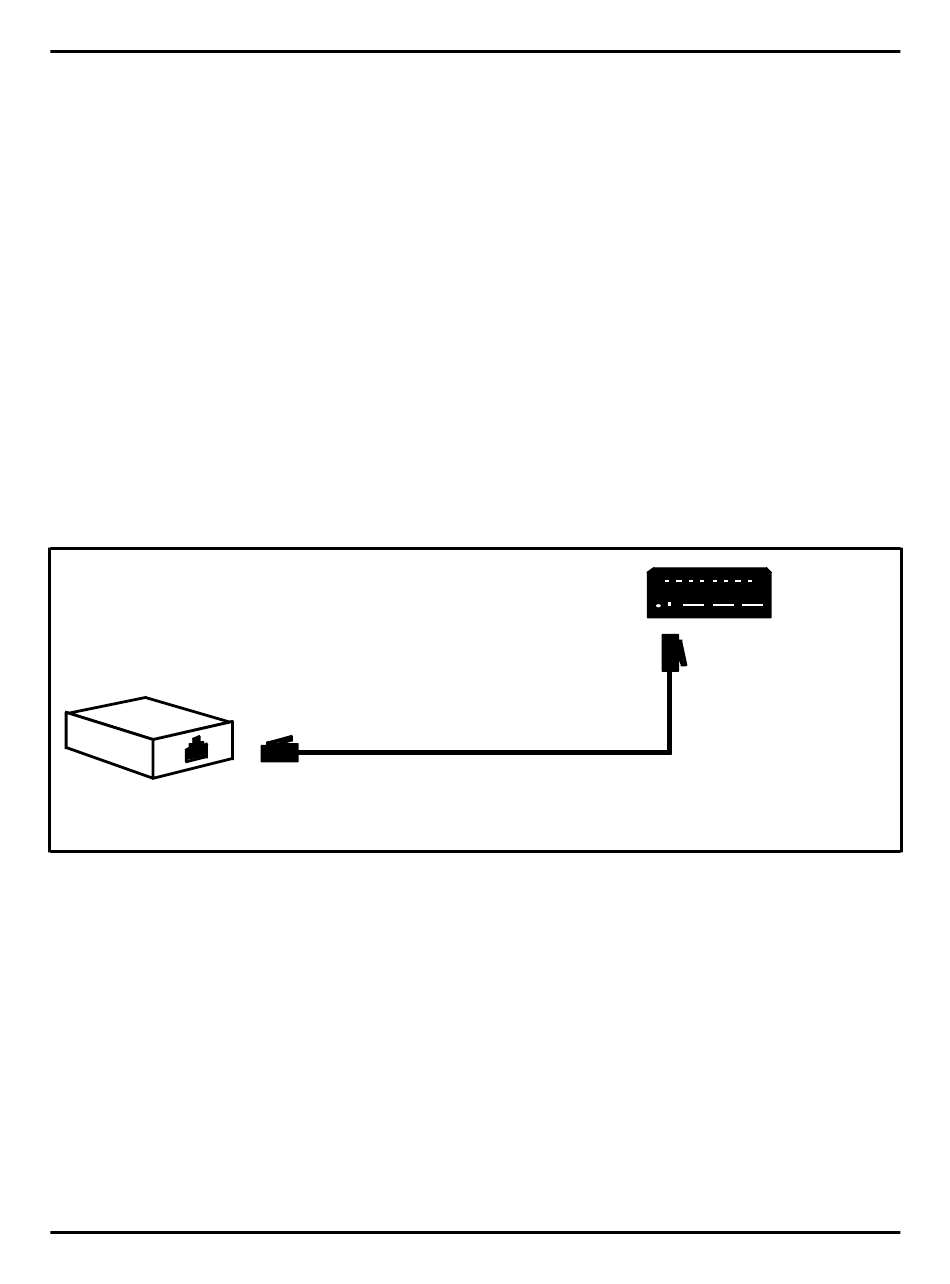

Figure 11-3
LIU-to-Teladapt Connection
Teladapt
Connector
Practice 450-1011-201
the office cross-connect panel, or one connected to the building wiring. (Refer
to the provisioning tables in the Site Records, 450-1011-152, for assignments.)
3-Pair Twisted
Telephone Cable
LAN
Interface
Unit
450-0089
