4 Installing the Cross-Connect Panel
Figure 7-2

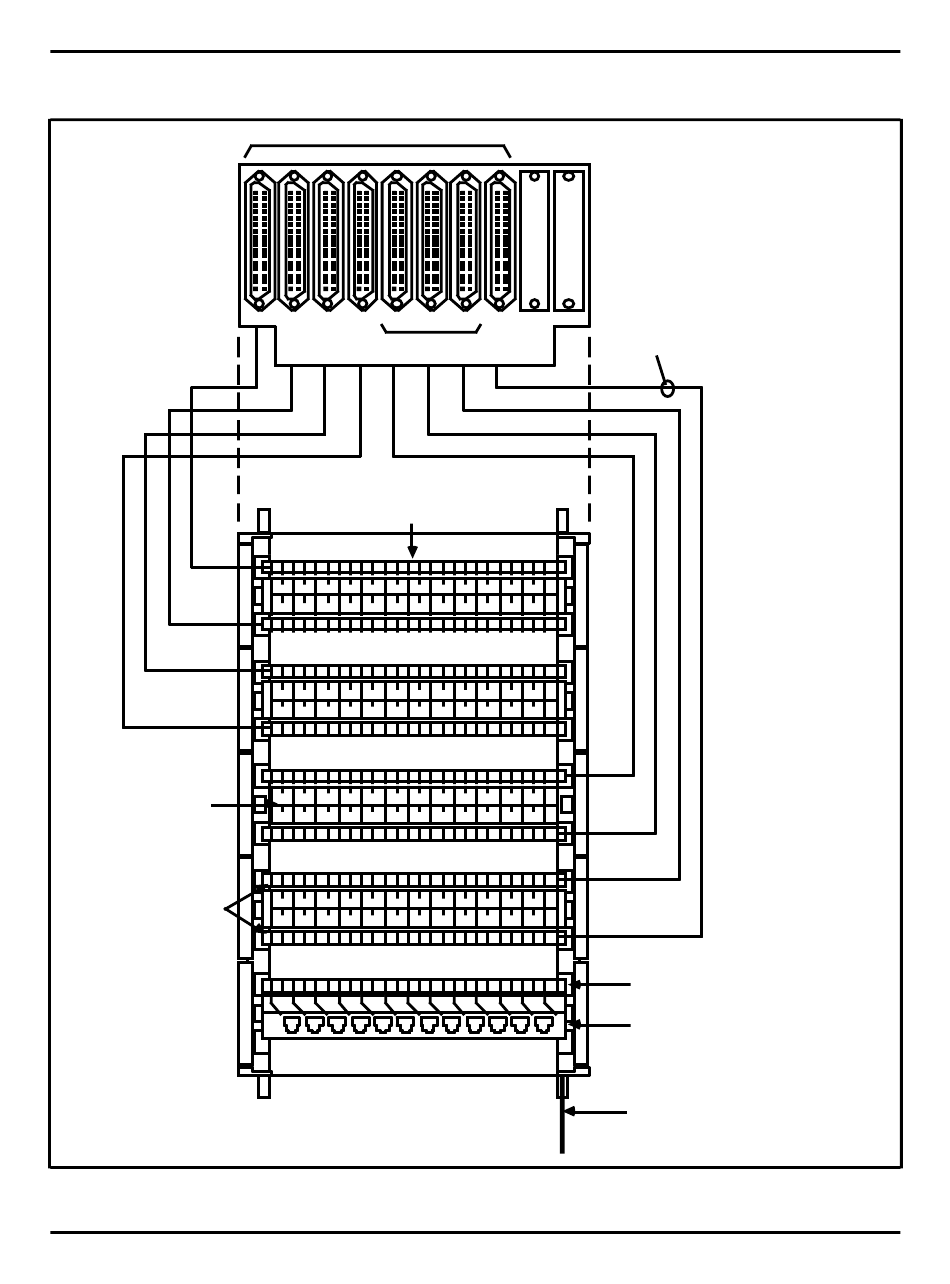

The Office Cross-connect Panel and Its Internal Wiring
4
3
2
1
Designation
Strip & Label
BIX Connectors
(Rows 7 and 8)
Practice 450-1011-201
25-Pair (50-pin) Connectors
1
2
3
4
RowA
RowB RowC
LANlinks
Analog Links
BIX Connectors (Row1)
Trunks
48 individual
Meridian DV-1
wires
8
7
6
5
BIX Connectors (Row 9)
Teladapt Jacks (internally
connected to Row 9)
450-0063
Wiring to/from external
distribution frames
(from/to BIX Rows 1 to 8)
