WE-EF FLC210 LED Installation And Maintenance Instructions Manual
Hide thumbs
Also See for FLC210 LED:
Advertisement
Quick Links
Installation tools
Mounting hardware used on this product
includes fasteners with hexalobular
socket heads (ISO 10664). Installation
requires the use of matching tools.
Surge Protection
This product features built-in surge protection circuitry in compliance
with applicable standards.
For comprehensive protection of a luminaire installation against lightning
and electrical surges, it is essential to cover mains supply and data input
lines at the distribution board level, by using respective primary (Type 1)
and secondary (Type 2) surge arrestors in compliance with EN61643-11/
IEC61643-1.
Warning
Ensure that all required surge protection measures are in place and
activated prior to luminaire installation. Also, disconnect luminaires
before operatinghigh-power devices such as, for example, electrical
arc welders.
WE-EF LEUCHTEN
Installation and Maintenance
Instructions
Projector

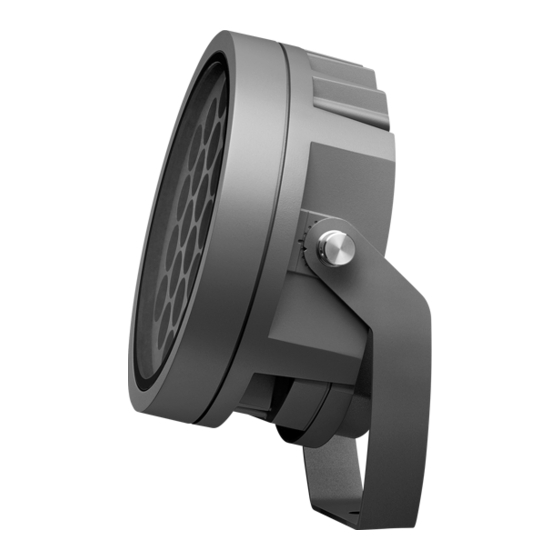

FLC210 LED
FLC220 LED
FLC230 LED
FLC240 LED
FLC260 LED
FLC210-CC LED
FLC220-CC LED
FLC230-CC LED
FLC240-CC LED
FLC260-CC LED
FLC210-TW LED
FLC220-TW LED
FLC230-TW LED
FLC240-TW LED
FLC260-TW LED
Advertisement
Related Manuals for WE-EF FLC210 LED
Summary of Contents for WE-EF FLC210 LED

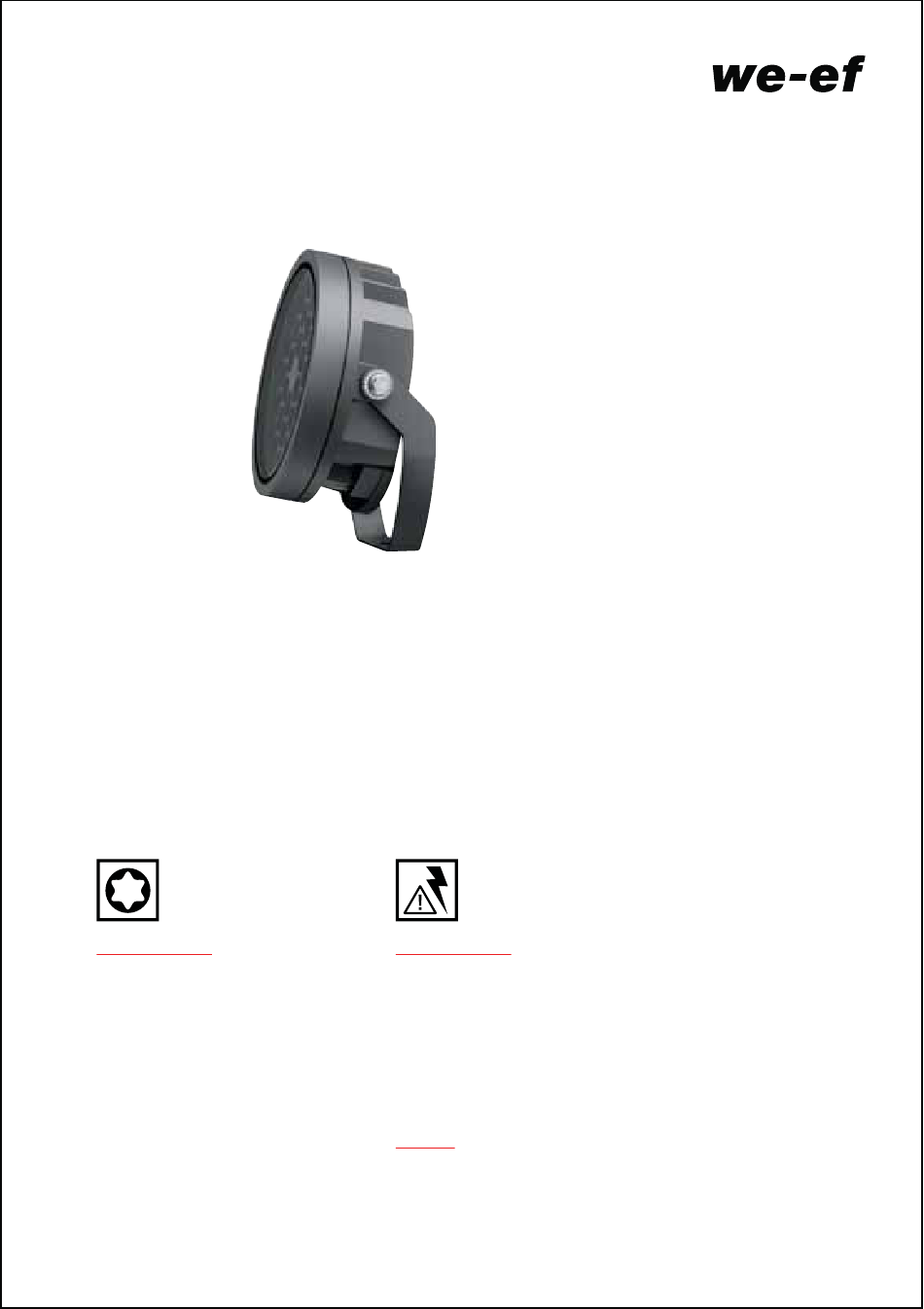

- Page 1 WE-EF LEUCHTEN Installation and Maintenance Instructions Projector FLC210 LED FLC220 LED FLC230 LED FLC240 LED FLC260 LED FLC210-CC LED FLC220-CC LED FLC230-CC LED FLC240-CC LED FLC260-CC LED FLC210-TW LED FLC220-TW LED FLC230-TW LED FLC240-TW LED FLC260-TW LED Installation tools Surge Protection...
- Page 2 Projector FLC230 [EES] Version FLC230-CC* FLC230-TW FLC230 FLC240 [EES] Version FLC260 [EES] Version FLC240-CC* FLC260-CC* FLC240-TW FLC260-TW FLC240 FLC260 IP66, IK07, Class I, ta = 25°C...
-
Page 3: Tools Required
FLC240 0.090 for FLC220/230/240/260-CC 430-0036 for FLC260 0.116 Tools required – Screwdriver T-25 / T-30 (provided by WE-EF) – Screwdriver with blade 3 x 1 Light Source for FLC220-CC for FLC230/240/260-CC Maintenance Apart from cleaning the product’s exterior surfaces, ø... -
Page 4: Installation Procedure
Installation Notice: The product must be installed and maintained by other than the original manufacturer, then the war- ranty will no longer be valid and shall become the with latest building/construction and/or electrical full responsibility of the modifying person/ regulations and relevant legislation. organisation. - Page 5 Installation Procedure 6) Connect leads of mains supply cable D (and second cable I for through wiring, if required) to respective terminals in terminal block F: a) ON/OFF or wireless version (L = Phase, N = Neutral, = Earthing) b) 1-10 V/DALI (L = Phase, N = Neutral, = Earthing, DA/DA = DALI control line, D /D+ = 1-10 V control line).
- Page 6 3) Remove gear box cover B by releasing screws C using a Torx T-25 / T-30 tool (provided by WE-EF). X of receiver Y. Do not stress the cables. For wireless version 4) Check that rating shown on luminaire label Feed mains supply cable D through conforms with mains electrical supply.
- Page 7 Loosen two screws G by insert screw driver into hole J. Aim luminaire (see illustration), tighten screws G firmly (max. 100 Nm). In addition, tighten screw H (max. 6 Nm) using a Torx T-30 tool (provided by WE-EF) to secure orientation of luminaire (not necessary for FLC220).
- Page 8 WE-EF LIGHTING Switzerland United States of America Tel +41 22 752 49 94 Tel +1 724 742 0030 Fax +41 22 752 49 74 Fax +1 724 742 0035 info.switzerland@we-ef.com info.usa@we-ef.com TO9255W0722 © WE-EF 2022 Technical specifications are subject to change.
