SPM Fundamentals for the MultiMode

Hardware

2.1 Hardware
This section provides a quick tour of the MultiMode SPM and its hardware. The MultiMode SPM
consists of seven major components: SPM, controller, computer, keyboard, mouse, display monitor
and control monitor. Mouse movements automatically transfer the cursor between monitors,
enabling the operator to seamlessly switch between control and display functions.
18
•
Reexamining the Control Loop:
•
General Description of Main Menu Items:
•
User Example: Section 2.4.3
•
Review of General Operating Concepts:
•
Review of TappingMode AFM:
•
General Operating Concepts:
•
Optimizing the TappingMode AFM Signal after Engagement:
•
Terms and Abbreviations:

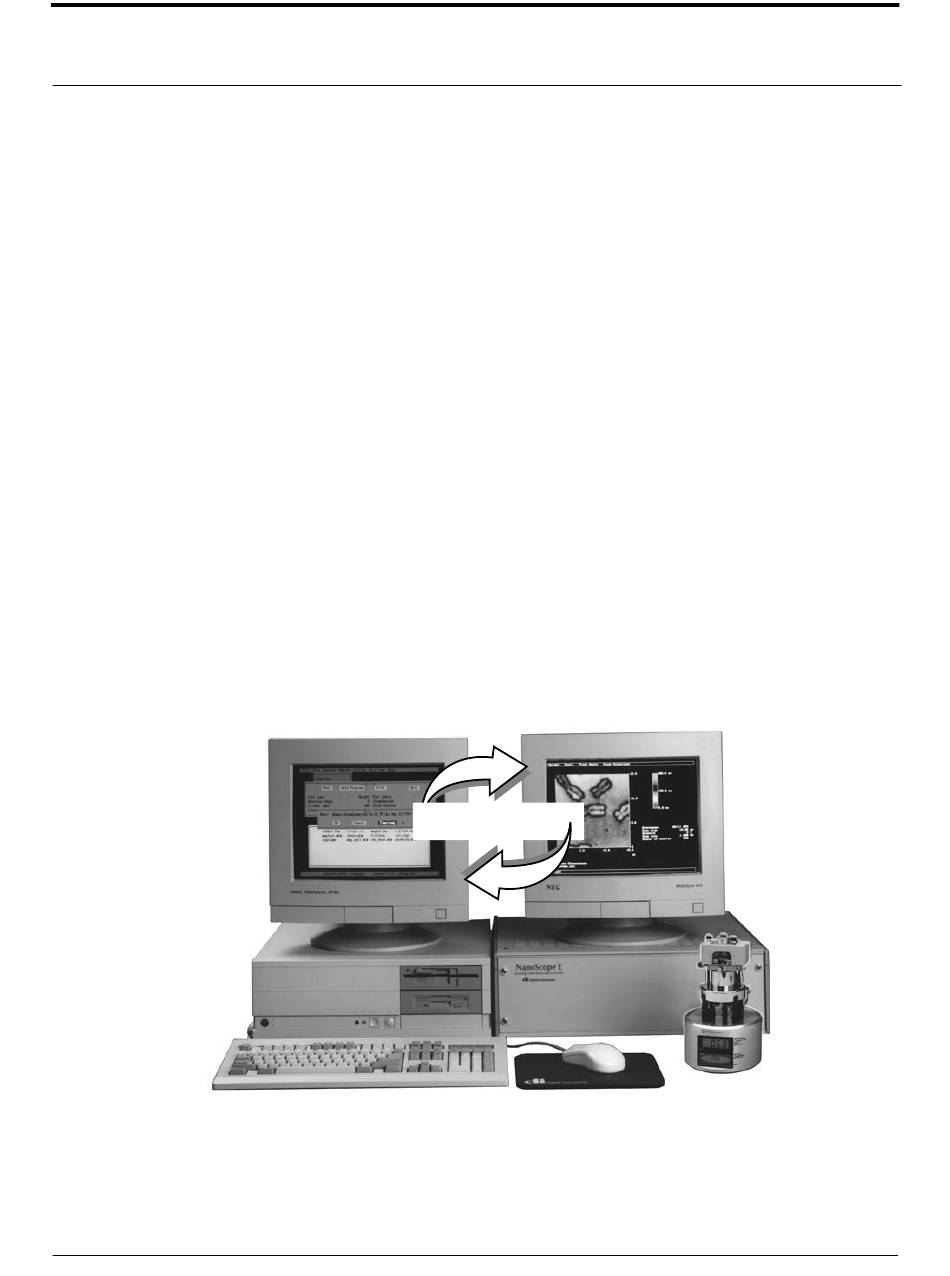

Figure 2.1a MultiMode SPM System Hardware
