Contact AFM Mode
Suggested Initial Control Settings

6.2.2 Initial Scan Parameter Settings

Before making changes to Scan Controls panel screen parameters, go to the Other Controls panel
(Panels > Other) and verify that the Microscope Mode parameter is set to Contact.
Scan Controls Panel
1. Select Panels > Scan. Set the Scan size as large as desired to 1.0µm and set the X and Y
offsets to 0.0.
2. Set the Scan angle to 0.0°, Scan rate to 2-3Hz (for single crystal silicon contact cantilevers
450µm long you may want to set this to 1.5-2Hz).
3. Make sure the Slow scan axis is Enabled.

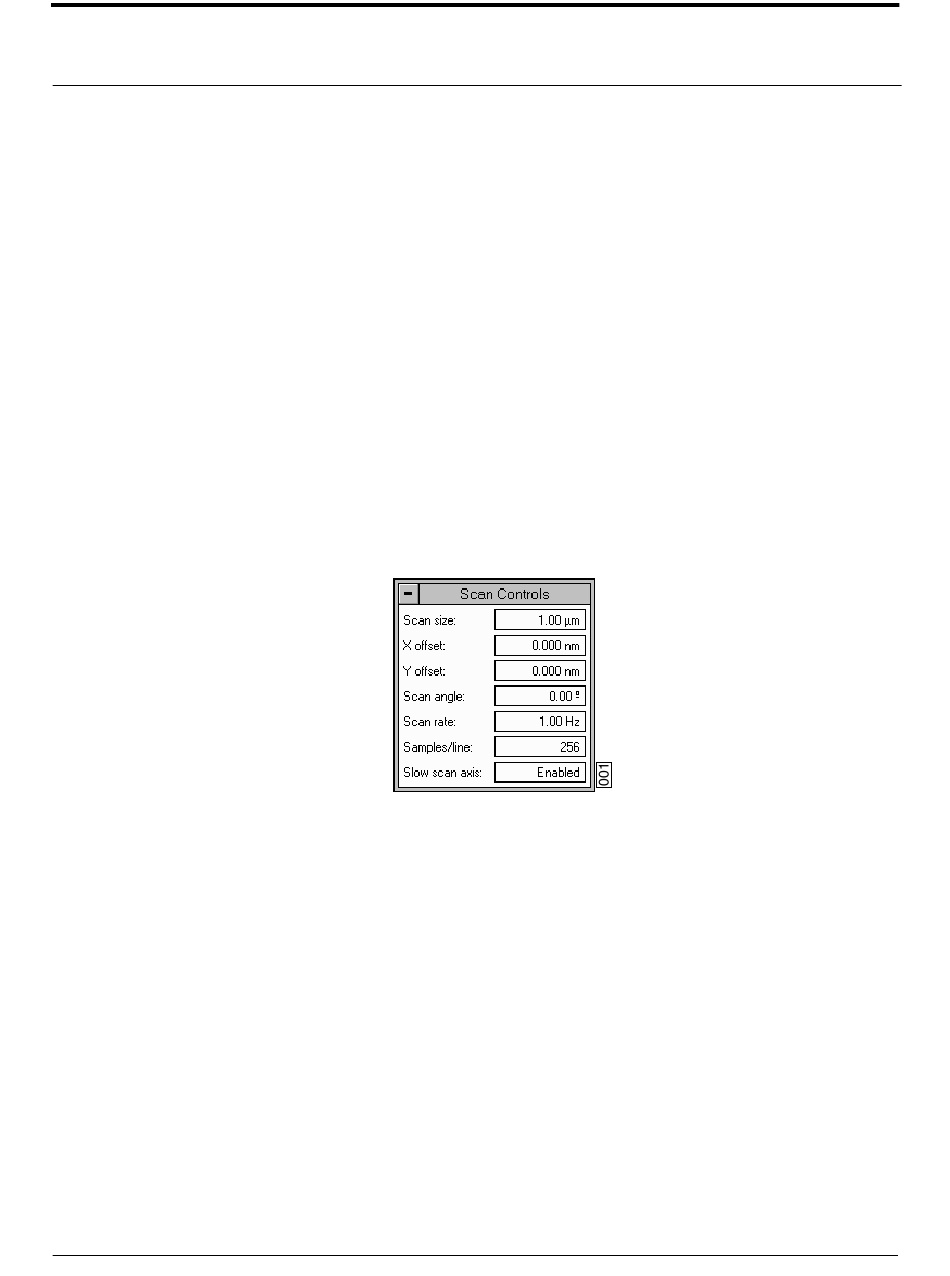

Figure 6.2c Scan Controls Panel Settings for Initial Setup (Contact Mode)

92
Note: When starting, set the Samples/line to 256 to expedite setup; later, the value
may be increased to 512 for better image clarity.
