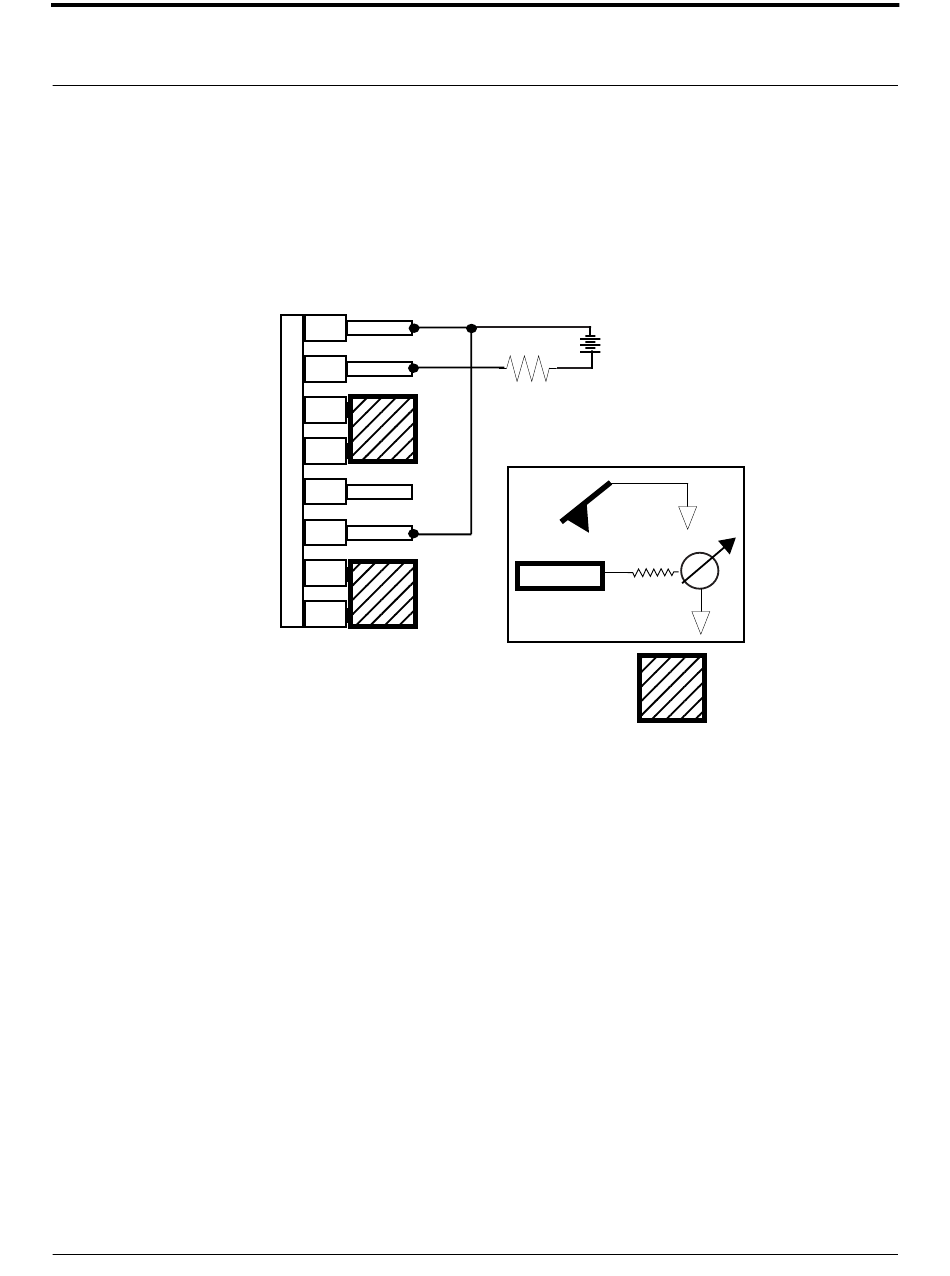

Figure 14.3K Jumper Configuration For Applying External Voltage To Sample (For Systems With The Basic Extender Module) - Veeco 004-210-000 Instruction Manual

External Voltage Source Applied to the Sample
In some cases, it may be advantageous to utilize voltages greater than 12 VDC, or to utilize a pulsed
power supply. If an external source of voltage is to be applied to the sample, configure jumpers as
shown in Figure
Figure 14.3k Jumper configuration for applying external voltage to sample
Ground
Piezo Cap
Analog 2
Unused
Unused
To AFM Tip
Auxiliary D
A current-limiting resistor (e.g., 10-100MΩ) should be placed in series with the external voltage
supply as shown to protect the tip and sample from damage. Current-limited power supplies may
also be used. Voltage leads should be connected to pins on the header using soldered, push-on
connectors. Do not solder leads directly to the header pins, as the heat may cause damage and/or
make jumpering the pins difficult.
Rev. B
14.3k.
(for systems with the Basic Extender Module).
STM
MultiMode SPM Instruction Manual
Electric Force (EFM) Imaging
Electric Field Gradient Detection—Preparation
(–)
External Voltage
Source
(+)
>10 MΩ
Tip
+
Sample
>10 MΩ
Indicates jumpers
V
–
255
