Renaissance Series

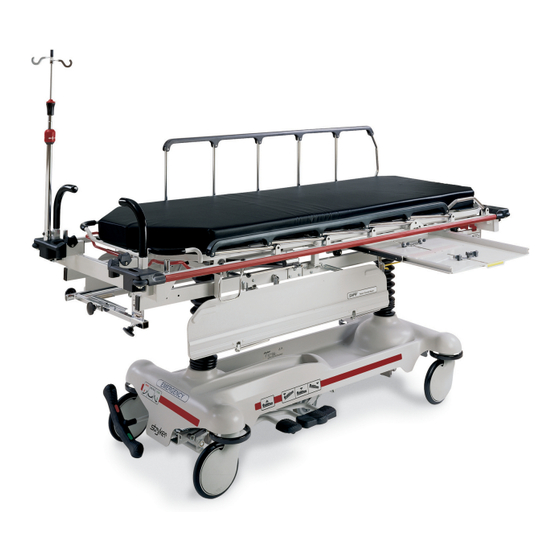

1026 Full Length X-Ray Stretcher
MAINTENANCE MANUAL
For Parts or Technical Assistance
1-800-327-0770

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Renaissance Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Stryker Medical Renaissance Series

Summary of Contents for Stryker Medical Renaissance Series

  • Page 1 IMPORTANT File in your maintenance records Renaissance Series 1026 Full Length X-Ray Stretcher MAINTENANCE MANUAL For Parts or Technical Assistance 1-800-327-0770...
