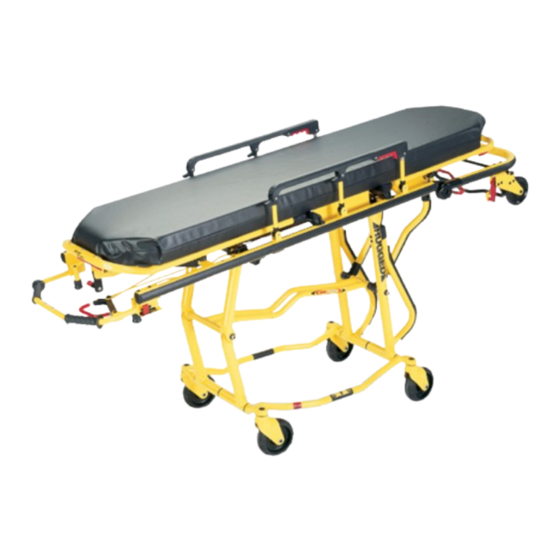

Stryker Medical Rugged EZ-PRO R4 6092 Operation & Maintenance Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Operations/
Maintenance
Important
Information
File in your
maintenance
records
Manual
Medical
Model 6092 Rugged
EZ-PRO R4
For parts or technical
assistance call
800 327 0770 (option 2)
®

Advertisement

loading
Need help?

Need help?

Do you have a question about the Rugged EZ-PRO R4 6092 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Stryker Medical Rugged EZ-PRO R4 6092

Summary of Contents for Stryker Medical Rugged EZ-PRO R4 6092

  • Page 1 Operations/ Medical Maintenance Manual Model 6092 Rugged ® EZ-PRO R4 Important Information File in your For parts or technical maintenance assistance call records 800 327 0770 (option 2)
  • Page 2 Table of Contents Introduction Specifications ................Warning / Caution / Note Definition .
  • Page 3 Table of Contents Assembly Drawings and Parts Lists Cot Assembly ..............45−49 Release Handle Assembly .
  • Page 4 Introduction INTRODUCTION This manual is designed to assist you with the operation and maintenance of the EZ−PROr R4 Ambulance Cot. Read it thoroughly before using the equipment or beginning any maintenance on it. SPECIFICATIONS Overall Length/Minimum Length/Width 83”/66”/23” Height − Position 1 (folded position) 12.0”...
  • Page 5 Introduction WARNING / CAUTION / NOTE DEFINITION The words WARNING, CAUTION and NOTE carry special meanings and should be carefully reviewed. WARNING Alerts the reader about a situation, which if not avoided, could result in death or serious injury. It may also describe potential serious adverse reactions and safety hazards.
  • Page 6 Warranty Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î...
  • Page 7 This warranty reflects U.S. domestic policy. Warranty outside the U.S. may vary by country. Please contact your local Stryker Medical representative for additional infor- Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î...
  • Page 8 Summary of Safety Precautions The following is a list of safety precautions that must be observed when operating or servicing this unit. The precautions are repeated throughout the manual, where applicable. Carefully read this list before using or servicing the unit. WARNING S Improper usage of the Cot can cause injury to the patient or operator and/or damage to...
  • Page 9 Summary of Safety Precautions WARNING S Be sure the undercarriage has engaged and locked before removing the loading wheels from the patient compartment floor of the vehicle. S Always verify the base frame is securely locked into position before releasing your grip on the litter frame. Visually inspect the locking pin on the patient left side of the cot to verify the lock pin is properly engaged (see page 28).
  • Page 10 Set−Up Procedures Unpack the cartons and check all items for proper operation. It is important that the Cot is working properly before it is put into service. Have a qualified service person use the following list and the operation instructions to check the cot before it is put into service. S All fasteners secure (reference all assembly prints) S All welds intact, not cracked or broken S No bent or broken tubing or sheet metal...
  • Page 11 Component Identification Backrest Backrest Adjustment Release Handle HEAD END Breakaway Head Section Siderail Release Handle Head End Lifting Bar Foot Rest Foot End Lifting Bar Lift Capable Safety Bar Safety Bar Release Lever Litter Frame Loading Wheels (1 of 2) Siderail Release Handle Foot Rest Release...
  • Page 12 Vehicle Safety Hook Installation The vehicle safety hook is a device shipped with the cot. The safety hook activates the safety bar and prevents the cot from being removed from the vehicle accidently. The vehicle safety hook was designed to ensure compatibility and proper op- eration of the cot during unloading when used in an ambulance vehicle compliant with Federal Regu- lation KKK−A−1822, Revision E.
  • Page 13 Vehicle Safety Hook Installation Required Hardware for Installation of the Safety Hook (Not Supplied) 1/8 inch (2) Grade 5, 1/4”−20 Socket Head Cap Screws* (reference only) (Stryker part number 6060−36−17 & 6060−36−18) (2) Grade 5, 1/4”−20 Flat Socket Head Cap Screws* (Stryker part number 6092−36−18) (2) Flat Washers (2) Lock Washers...
  • Page 14 Cot Positions Position 1 − Folded Position − Use for patient Position 4 − Intermediate Height Position transfer and transporting in an ambulance. Use for patient transfer/cot rolling. Position 5 − Loading Position Position 2 − Intermediate Height Position Use for patient transfer/cot rolling, Use for patient transfer/cot rolling.
  • Page 15 Cot User Tips Disengaging the auxiliary lock The auxiliary lock must always be disengaged to lower the cot from the load position or to load the cot into the ambulance. It is located at the foot end of the cot on patient’s left side. Push the lock lever towards the head end to disengage the auxiliary lock.
  • Page 16 Cot Operation Using Restraint Straps WARNING Always use all restraint straps to secure the patient on the cot. An unrestrained or partially restrained patient may fall from the cot and be injured. Always secure the patient on the cot with all the re- straint straps.
  • Page 17 Cot Operation Using Restraint Straps (Continued) Figure 11 − Buckling the Restraints Figure 12 − Lengthening the Safety Restraints Figure 13 − Tightening the Safety Restraint When the cot is put into service, the restraints are opened and placed to either side of the cot until the patient is positioned on the cot mattress.
  • Page 18 Pedi−Matet Infant Restraint System Attachment Instructions Refer to the Pedi−Matet users manual for the manufacturer’s recommendations for the use, operation and care of the Pedi−Matet Infant Restraint System. Securing the Pedi−Matet to the cot 1. Remove any restraints already attached to the cot. 2.
  • Page 19 Pedi−Matet Infant Restraint System Attachment Instructions 5. Pull firmly on the end of the adjustable backrest strap and tighten it securely. 6. Insert the mainframe straps between the cot frame and the mattress. To ensure the release button is toward the foot end of the cot, insert the buckle behind the litter crossbrace and bring it up in front of the crossbrace.
  • Page 20 Cot Operation Guidelines for Operation S Use the Cot only as described in this manual. S Read and understand all labels and instructions on the cot before using the cot. S Use a minimum of two operators to manipulate the cot. (If additional assistance is required, see page 29 for a reference chart).
  • Page 21 Cot Operation TRANSFERRING THE PATIENT TO THE 1. Roll the cot to the patient. 2. Place the cot beside the patient and raise/lower the cot to the patient’s level. 3. Lower the siderails and open the restraint straps. 4. Transfer the patient to the cot using ac- cepted EMS procedures.
  • Page 22 Cot Operation CHANGING COT HEIGHT WARNING Loading, unloading and changing the position of the cot requires a minimum of two trained operators working together. The operator(s) must be able to lift the total weight of the patient, cot and any other items on the cot.
  • Page 23 Cot Operation CHANGING COT HEIGHT (CONTINUED) Lowering the Cot from the Load Position to an Intermediate Transport Position: 1. Two operators firmly grasp the litter frame at oppo- site ends with their palms facing up (Figure 23). 2. The foot end operator unlocks the auxiliary lock. 3.
  • Page 24 Cot Operation CHANGING COT HEIGHT (CONTINUED) Changing Between the Loading and the Folded Position with One Operator and an Empty Cot When a cot is empty, one trained operator can fold the cot or put it into the loading position. Changing From the Loading to the Folded Position: 1.
  • Page 25 Cot Operation OPERATING THE OPTIONAL WHEEL LOCK Figure 30 − Optional Wheel Lock 1. To activate the optional wheel lock, press fully down on the pedal (A) until it stops. 2. To release the optional wheel lock, depress the upper face of the wheel lock pedal with your foot or lift up with your toe under the pedal.
  • Page 26 Cot Operation ADJUSTING THE WHEEL LOCKING FORCE MINIMUM MAXIMUM Figure 31 − Optional Wheel Lock Force Adjustment 1. To adjust the wheel locking force, remove the hex socket screw from the center of the lock pedal. The wheel lock is initially assembled with the pedal set at the minimum locking force. The marker on the pedal (item A) is aligned with the marker on the octagonal sleeve (item B).
  • Page 27 Cot Operation LOADING THE COT INTO A VEHICLE (CONTINUED) 1. Place the cot in the loading position (see page 13). 2. Roll the cot to the open door of the patient compartment, approaching the vehicle squarely. 3. Fold the vehicle bumper to the raised position (if available).
  • Page 28 Cot Operation UNLOADING THE COT FROM A VEHICLE WARNING Loading, unloading and changing the position of the cot requires a minimum of two trained operators working together. The operator(s) must be able to lift the total weight of the patient, cot and any other items on the cot.
  • Page 29 Cot Operation UNLOADING THE COT FROM A VEHICLE (CONTINUED) Figure 35 − Locking Pin Properly Engaged Figure 36 − Locking Pin Not Properly Engaged...
  • Page 30 Cot Operation USING ADDITIONAL ASSISTANCE Rolling Loading/Unloading Changing Levels Helper Helper Helper Helper Operators Helpers Operator Operator Operator Operator Helper Operator Helper Operator Helper Helper Helper Helper Helper Operator Helper Helper Operators Helper Four Helpers Operator Operator Operator Helper Operator Helper Helper Helper...
  • Page 31 Cot Operation ADJUSTING LEG REST FOOT END Figure 37 − Raising/Lowering the Leg Rest The leg rest is adjustable to allow for elevation of the patient’s legs. To raise the leg rest, lift the leg rest frame (A) as high as possible. The support bracket will engage automati- cally.
  • Page 32 Cot Operation Figure 38 − Pneumatic Backrest and Siderails OPERATING BACKREST To raise, squeeze handle (A) for pneumatic assist in lifting the backrest to the desired height. Remove your hand(s) from the handle when the desired height is achieved. To lower, squeeze handle (A) and push down on the backrest frame until the backrest has reached the de- sired height.
  • Page 33 Cot Operation OPERATING BREAKAWAY HEAD SECTION The head end of the cot litter folds down to shorten the length of the cot (Figure 39) to allow easier maneuver- ing when space is limited in elevators, halls, etc. The breakaway head section should only be used when the cot is in positions 2−5 (see page 13).
  • Page 34 Cot Operation OPERATING 2−STAGE I.V. POLE Figure 42 − Storage Position Figure 43 − 2−Stage I.V. Pole 1. Lift and pivot the pole from the storage position and push down until it is locked into the receptacle (A). 2. To raise the height of the pole, turn the lock actuator (B) counterclockwise and pull up on the telescoping portion (C) of the pole to raise it to the desired height.
  • Page 35 Cot Operation OPERATING 3−STAGE I.V. POLE (OPTIONAL EQUIPMENT) 1. Lift and pivot the pole from the storage position and push down until it is locked into receptacle (A). 2. To raise the height of the pole, turn the lock actuator (B) counterclock- wise and pull up on the bottom telescoping portion (C) of the pole to raise it to the desired height.
  • Page 36 Cleaning Hand wash all surfaces of the cot with warm water and mild detergent. Dry thoroughly. DO NOT STEAM CLEAN, PRESSURE WASH OR ULTRASONICALLY CLEAN. Using these methods of cleaning is not rec- ommended and may void this product’s warranty. Thoroughly clean the cot once a month.
  • Page 37 Keep up−to−date maintenance records using the form on page 43. Parts, Service or Technical Assistance: Contact Stryker Customer Service at 1−800−327−0770 or Stryker Medical 3800 E. Centre Ave. Portage, MI 49002 ATTN: Customer Service CAUTION Failure to use authorized parts, lubricants, etc.
  • Page 38 Preventative Maintenance CHECKLIST All fasteners secure (reference all assembly prints) All welds intact, not cracked or broken No bent or broken tubing or sheet metal Lift capable safety bar operating properly Release handle operating properly No debris in wheels C−channel free of debris. Apply wax, if necessary (see page 41) All wheels secure, rolling and swivelling properly Optional wheel lock holds wheel securely when on and clears wheel when off Siderails move and latch properly...
  • Page 39 Service Information PNEUMATIC BACKREST ADJUSTMENT Required Tools: 1/2” Wrench 5/32” Allen Wrench Loctite 3/32” Allen Wrench 7/32” Allen Wrench 9/16” Wrench Adjustment Procedure: 1. For easier access, move the backrest to 75 degrees. NOTE Before continuing with the backrest adjustment procedure, be sure the pneumatic cylinder (item A) is com- pletely threaded into the yoke (item B) so no threads are showing on the shaft of the cylinder.
  • Page 40 Service Information FOOT END RELEASE HANDLE ADJUSTMENT Contact Point 2 Contact Point 1 Figure 48 − Foot End Release Components 1. Remove the bolt (G) and disconnect the link (B). 2. Lift the cot at both ends to take the weight off the base frame. Pull the foot end release handle and verify the patient left latch bar (C) is touching the foot end lever support bracket (E) at contact point 1 as shown above.
  • Page 41 Service Information AUXILIARY LOCK HANDLE ADJUSTMENT Figure 49 − Auxiliary Lock Components 1. Remove bolt (A). 2. Pull and hold the auxiliary lock release link (B) toward the head end of the cot until the auxiliary lock lever (C) bottoms in the slot of the lever guard (D), 3.
  • Page 42 Service Information C−CHANNEL WAX APPLICATION Figure 50 − Application of Stick Wax 1. Reach under the cot litter frame and apply the stick wax (Stryker part number 6090−700−001) to the inner surface of the black c−channel. Cover the entire surface between the oblong holes with a thin, even film of wax.
  • Page 43 Service Information LUBRICATION NOTE EZ−PROr R4 has been designed to operate without the need for lubrication. Tri−Flowt with TeflonR lubricant (Stryker part number 6082−199−012) may be used to maintain the smooth operation of the cot. Do not use silicone, WD−40t, or lithium grease. They could harm the moving parts of the cot. Figure 51 −...
  • Page 44 Maintenance Record Date Maintenance Operation Performed...
  • Page 45 Training Record Training Date Training Method Trainee Name Basic Refresher Owner’s Manual, In−Service, Training Update Formal Class, Etc.
  • Page 46 Cot Assembly...
  • Page 47 Cot Assembly Fowler Back of Fowler Foot Section Foot Section...
  • Page 48 Cot Assembly Detail A Detail B Detail C DETAIL A DETAIL B DETAIL C...
  • Page 49 Cot Assembly...
  • Page 50 Cot Assembly Item Part No. Part Name Qty. Item Part No. Part Name Qty. 4−136 Pan Hd. Machine Screw 6080−40−44 Link Release Spacer 4−197 H. Soc. But. Hd. Cap Scr. 6080−90−9 Warning Label 4−198 H. Soc. But. Hd. Cap Scr. 4−161 H.
  • Page 51 6092−40−40 Release Handle Assembly Item Part No. Part Name Qty. 6080−40−41 Release Handle Link 25−125 Semi−Tubular Rivet 6092−40−50 Side Release Handle...
  • Page 52 Base Assembly Assembly part number 6092−1−11 (reference only) Detail 1 Detail 2 Detail 3...
  • Page 53 Base Assembly DETAIL 1 DETAIL 3 DETAIL 2...
  • Page 54 Base Assembly...
  • Page 55 Base Assembly...
  • Page 56 Base Assembly DETAIL 6 DETAIL 7 When assembling item AT bushing and item AN nylon washer, ensure the bushing DETAIL 8 is inserted completely through the nylon washer. Verify the assembly moves freely after assembling item N socket head cap screw. Dual Retaining Post Option...
  • Page 57 Base Assembly Item Part No. Part Name Qty. Item Part No. Part Name Qty. 3−205 Hex Hd. Cap Screw 6091−1−32 Inner Base Spacer 4−18 Soc. Hd. Cap Screw 6092−1−33 Center Weldment 4−45 H. Soc. But. Hd. Cap Scr. 6091−1−52 Front Leg, Right 4−136 Torx Pan Hd.
  • Page 58 6092−257−10 Optional Lift Bar Assembly Item Part No. Part Name Qty. 4−235 Hex Soc. But. Hd. Cap Screw 37−238 Hole Plug 6092−157−11 Lift Tube 6092−157−14 Bracket...
  • Page 59 6060−2−10 Wheel Assembly Item Part No. Part Name Qty. 6060−2−45 Molded Wheel 6060−2−46 Bearing Spacer 81−226 Bearing 715−1−255 Wheel Bushing...
  • Page 60 Tie Rod Assembly, Right & Left 6091−1−81 Left Tie Rod 6091−1−80 Right Tie Rod Item Part No. Part Name Qty. Item Part No. Part Name Qty. 6091−1−83 Tie Rod Wear Guard, Lt. 6091−1−82 Tie Rod Wear Guard, Rt. 6091−1−94 Tie Rod Tube, Lt. 6091−1−93 Tie Rod Tube, Rt.
  • Page 61 Bumper Tube Assembly 6091−1−85 Left Bumper Tube 6091−1−90 Right Bumper Tube Item Part No. Part Name Qty. Item Part No. Part Name Qty. 6091−1−86 Bumper Wear Guard, Lt. 6091−1−91 Bumper Wear Guard, Rt. 6091−1−95 Bumper Tube, Lt. 6091−1−96 Bumper Tube, Rt. 25−79 Dome Head Rivet 25−79...
  • Page 62 6092−105−39 Latch Bar Assembly Item Part No. Part Name Qty. 25−153 Semi−Tubular Rivet 6092−105−20 Latch Bar Spring Clip 6092−105−35 Latch Bar Weldment...
  • Page 63 6091−5−56 Base Lock Tube Assembly Item Part No. Part Name Qty. 8−27 Shoulder Bolt 28−177 Retaining Ring 38−450 Compression Spring 6091−205−58 Lock Pin 6090−205−59 Lock Bar Roller 6091−5−63 Lock Bar Roller Guide (page 63) Lock Tube Bearing Ass’y...
  • Page 64 6090−5−64 Base Lock Tube Bearing Assembly Item Part No. Part Name Qty. 6090−5−68 Lock Bar Weldment 81−4 Bronze Bushing 6090−5−70 Track Roller Assembly Item Part No. Part Name Qty. 6090−5−75 Track Roller 81−251 Track Roller Bushing...
  • Page 65 Cot Retaining Post Assembly 6091−204−45 Cot Retaining Post 6091−4−46 Patient/Left Cot Retaining Post Item Part No. Part Name Qty. Item Part No. Part Name Qty. 6091−204−46 Retaining Post Head 6091−204−48 Retaining Post Head, Left 6091−204−47 Post Tube 6091−204−47 Post Tube 6060−4−43 Retaining Post Cap 6060−4−43...
  • Page 66 6092−6−25 Auxiliary Lock Housing Assembly Item Part No. Part Name Qty. 4−161 Hex Soc. But. Hd. Cap Screw 14−7 Nylon Washer 16−28 Fiberlock Hex Nut 38−432 Extension Spring 3001−300−99 Modified Bushing 6092−6−26 Auxiliary Lock Housing 6090−6−27 Auxiliary Lock Slide 6091−6−28 Auxiliary Lock Lever Arm 3−364 Hex Washer Hd.
  • Page 67 6092−32−10 Fowler Bracket Assembly Item Part No. Part Name Qty. 25−122 Dome Head Rivet 6092−32−11 Fowler Support Bracket 6092−32−12 Fowler Bracket Filler Panel 6092−32−13 Fowler Supt. Brkt. Mount, Rt. 6092−32−14 Fowler Supt. Brkt. Mount, Lt.
  • Page 68 Wheel Lock Options 6082−500−10 No Wheel Lock Option Item Part No. Part Name Qty. 6082−2−12 Caster Horn 6082−501−10 One Wheel Lock Option Item Part No. Part Name Qty. 6082−2−12 Caster Horn (page 68) Wheel Lock Ass’y 6082−502−10 Two Wheel Locks Option Item Part No.
  • Page 69 6082−200−10 Adjustable Wheel Lock Assembly Item Part No. Part Name Qty. 6082−100−12 Caster Horn 6080−100−32 Spring 11−456 Washer 25−153 Semi−Tubular Rivet 6080−90−101 Warning Label 6080−200−30 Adjustable Pedal 6080−200−41 Octagonal Sleeve 4−98 Hex Soc. But. Hd. Cap Screw 16−118 Centerlock Nut...
  • Page 70 Litter Assembly Assembly part number 6092−30−11 (reference only)
  • Page 71 Litter Assembly DETAIL 1 DETAIL 2...
  • Page 72 Litter Assembly DETAIL 3 DETAIL 4 DETAIL 5...
  • Page 73 Litter Assembly DETAIL 6...
  • Page 74 Litter Assembly Item Part No. Part Name Qty. Item Part No. Part Name Qty. 4−135 Hex Soc. But. Hd. Cap Scr. 946−35−25 Liner 4−515 Pan Hd. Machine Scr. 6082−25−33 Pivot Mount Spacer 4−161 Hex Soc. But. Hd. Cap Scr. 6082−25−55 Pivot Mount 4−468 Hex Soc.
  • Page 75 6092−26−10 Folddown Siderail Assembly Item Part No. Part Name Qty. 6060−25−24 Top Rail 6060−25−29 Lock Release 6060−25−35 Pivot Bushing 6060−25−40 Spindle Pivot Stop 6060−25−41 Spindle Pivot 6060−25−43 Siderail Spindle 6060−25−47 Spindle Lock Post 6061−125−30 Lock Bar 25−131 Semi−Tubular Rivet 38−344 Compression Spring...
  • Page 76 6092−40−51 Litter Lift Tube Assembly Item Part No. Part Name Qty. 6080−40−11 Grip 6092−40−52 Lift Tube...
  • Page 77 Breakaway Head Section Assembly Assembly part number 6091−37−10 (reference only) Item Part No. Part Name Qty. 14−67 Nylon Flat Washer 25−79 Rivet 6092−37−46 Shoulder Pivot Pin (page 77) Breakaway Head Section 6090−36−46 Bent Release Crossbar 6092−201−10 Standard Height Option 6092−202−10 Height Limiting Option Item Part No.
  • Page 78 Breakaway Head Section Assembly Assembly part number 6080−37−55 (reference only) See Detail A DETAIL A See Detail 1 Item Part No. Part Name Qty. Item Part No. Part Name Qty. 4−54 H. Soc. But. Hd. Cap Scr. 6060−36−24 Pivot Stop Pin 4−135 H.
  • Page 79 Breakaway Head Section Assembly DETAIL 1 6091−156−16 Lift Option 6091−156−15 No Lift Option Item Part No. Part Name Qty. Item Part No. Part Name Qty. 4−440 But. Hd. Cap Screw 6080−37−22 Hook Tube 25−157 Dome Head Rivet 56−19 Bumper 6080−37−23 Lift Capable Hook Tube 6091−160−21 Lift Nub, Left 6091−160−22 Lift Nub, Right...
  • Page 80 6092−213−10 No IV Pole Option Item Part No. Part Name Qty. 4−97 Hex Soc. But. Hd. Cap Screw 4−163 Hex Soc. But. Hd. Cap Screw 11−65 Flat Washer 16−28 Nylock Nut 6092−30−80 Siderail Bracket...
  • Page 81 6092−210−10 Optional 2−Stage IV, Patient Right 6092−215−10 Optional 3−Stage IV, Patient Right PATIENT RIGHT FOOT END 6092−210−10 6092−215−10 Item Part No. Part Name Qty. Item Part No. Part Name Qty. 6080−110−35 IV Clip 6080−110−35 IV Clip (page 81) 2−Stage IV Pole, Right (page 82) 3−Stage IV Pole, Right 16−28...
  • Page 82 6090−210−20 2−Stage IV Assembly, Patient Right Item Part No. Part Name Qty. 6070−90−105 Caution Label (page 86) 2−Stage IV Pole Assembly 6070−210−45 IV Pole Sleeve 6070−210−46 IV Pivot 6070−210−49 IV Pivot Ring 6090−90−31 Specification Label 6090−210−52 IV Socket Weldment, Right 25−133 Rivet...
  • Page 83 6090−215−20 3−Stage IV Assembly, Patient Right Item Part No. Part Name Qty. 6070−90−105 Caution Label 6070−210−45 IV Pole Sleeve 6070−210−46 IV Pivot 6070−210−49 IV Pivot Ring (page 87) 3−Stage I.V. Pole Assembly 6090−90−33 Specification Label 6090−210−52 IV Socket Weldment, Right 25−133 Rivet...
  • Page 84 6092−211−10 Optional 2−Stage IV, Patient Left 6092−216−10 Optional 3−Stage IV, Patient Left PATIENT LEFT FOOT END 6092−211−10 6092−216−10 Item Part No. Part Name Qty. Item Part No. Part Name Qty. 6080−110−35 IV Clip 6080−110−35 IV Clip (page 84) 2−Stage IV Pole, Left (page 85) 3−Stage IV Pole, Left 16−28...
  • Page 85 6090−211−20 2−Stage IV Assembly, Patient Left Item Part No. Part Name Qty. 6070−90−105 Caution Label (page 86) 2−Stage IV Pole Assembly 6070−210−45 IV Pole Sleeve 6070−210−46 IV Pivot 6070−210−49 IV Pivot Ring 6090−90−32 Specification Label 6090−211−52 IV Socket Weldment, Left 25−133 Rivet...
  • Page 86 6090−216−20 3−Stage IV Assembly, Patient Left Item Part No. Part Name Qty. 6070−90−105 Caution Label 6070−210−45 IV Pole Sleeve 6070−210−46 IV Pivot 6070−210−49 IV Pivot Ring (page 87) 3−Stage IV Pole Assembly 6090−90−34 Specification Label 6090−211−52 IV Socket Weldment, Left 25−133 Rivet...
  • Page 87 6070−210−40 2−Stage IV Pole Assembly Item Part No. Part Name Qty. 1210−110−46 Back−Up Ring 1210−110−47 Lock Ring 1210−110−49 Molded Actuator 6070−210−41 Base Tube 6070−110−42 2nd Stage Tube 6070−110−44 2nd Stage Slide Plug 6070−110−50 Hook Weldment 26−6 Roll Pin...
  • Page 88 6070−215−40 3−Stage IV Pole Assembly Item Part No. Part Name Qty. 1210−110−46 Back−Up Ring 1210−110−47 Lock Ring 1210−110−49 Molded Actuator 6070−210−41 Base Tube 6070−110−44 2nd Stage Slide Plug 6070−110−50 Hook Weldment (page 88) 3rd Stage Assembly 6070−115−42 2nd Stage Tube 6070−115−45 Bearing Plug 26−5...
  • Page 89 6070−115−30 3rd Stage Ass’y, Optional 3−Stage IV Pole Item Part No. Part Name Qty. 6070−115−141 Spring Clip 6070−115−143 3rd Stage Tube 6070−115−44 3rd Stage Slide Plug 26−4 Roll Pin...
  • Page 90 6092−212−10 Optional Dual 2−Stage IV Pole Assembly FOOT END Item Part No. Part Name Qty. 4−163 Hex Soc. But. Hd. Cap Screw 11−65 Flat Washer 16−28 Nylock Nut 6080−110−35 IV Clip (page 81) 2−Stage IV Pole, Right (page 84) 2−Stage IV Pole, Left...
  • Page 91 6092−217−10 Dual 3−Stage IV Pole Assembly FOOT END Item Part No. Part Name Qty. 4−163 Hex Soc. But. Hd. Cap Screw 11−65 Flat Washer 16−28 Nylock Nut 6080−110−35 IV Clip (page 82) 3−Stage IV Pole, Right (page 85) 3−Stage IV Pole, Left...
  • Page 92 6090−155 Optional Pull Handle Assembly Item Part No. Part Name Qty. 4−136 But. Hd. Cap Screw 4−265 Hex Soc. But. Hd. Cap Screw 11−16 Flat Washer 16−14 Nylock Hex Nut 25−79 Dome Head Rivet 958−1−224 I.V. Clip 6092−155−50 Pull Handle Holder Bracket 6090−155−51 Pull Handle Retainer Clamp 6090−155−53...
  • Page 93 6091−300−10 Pedi−Matet Restraint Bracket Option Item Part No. Part Name Qty. 6080−32−60 Restraint Bracket 25−79 Rivet...
  • Page 94 6080−140 Optional Hanging Oxygen Bottle Holder Ass’y Assembly part number 6080−140−10 (reference only) Item Part No. Part Name Qty. 6080−140−11 Bottle Holder Hanger 6080−140−12 Oxygen Bottler Holder...
  • Page 95 6092−140 Optional Foot End O2 Bottle Holder Item Part No. Part Name Qty. 6060−140−13 Strap Assembly (page 95) Bottle Holder Tray 25−79 Dome Hd. Rivet 6092−140−17 Bottle Holder 6092−90−14 Specification Label...
  • Page 96 6060−140−20 Foot End O2 Bottle Holder Tray Item Part No. Part Name Qty. 11−436 Flat Washer 25−133 Rivet 37−55 37−56 Washer 946−1−155 Bumper 6060−140−15 Bottle Holder Tray...
  • Page 97 6082−140−000 Optional Head End O2 Bottle Holder Item Part No. Part Name Qty. 4−197 Hex Soc. But. Hd. Cap Screw 16−102 Nylock Hex Nut 25−79 Blind Rivet (page 97) Tray Assembly 6082−140−43 Strap Assembly 6082−140−44 Fowler Handle Guard...
  • Page 98 6082−140−40 Head End O2 Bottle Holder Tray Item Part No. Part Name Qty. 4−455 But. Hd. Cap Screw 11−52 Washer 11−436 Washer 16−28 Hex Nut 25−99 Dome Head Rivet 25−133 Dome Head Rivet 29−3 Brass Eyelet 37−55 Black Protective Cap 37−56 Retaining Washer 946−1−155...
  • Page 99 6092−150−15 Optional Base Storage Tray Assembly Item Part No. Part Name Qty. (page 99) Base Storage Tray Ass’y 25−79 Rivet...
  • Page 100 6092−150−20 Storage Tray Assembly Item Part No. Part Name Qty. 37−52 Bumper 6092−250−19 Tray 6092−90−4 Label...
  • Page 101 6092−128−000 Optional Head End Storage Tray Item Part No. Part Name Qty. 4−197 Button Hd. Cap Screw 16−102 Nylock Nut (page 101) Tray...
  • Page 102 6092−128−20 Head End Storage Tray Item Part No. Part Name Qty. 6092−128−80 Tray 6082−128−19 Adhesive Loop Pile 6081−91−47 Caution Label...
  • Page 103 6100−700−012 Head Extension Option Kit 6100−044−000 Head Extension Option Item Part No. Part Name Qty. 6100−41−30 Head Extension Pillow 6100−44−12 Head Extension Assembly...
  • Page 104 6100−044−012 Head Extension Assembly Item Part No. Part Name Qty. 6100−−44−10 Bracket Weldment 6100−44−7 Support 6100−44−11 Extension Tube 6100−44−8 Pillow Support 6100−44−5 Insert 28−76−0 Clip 6100−44−6 Spacer 16−28−0 Nylock Nut 4−161−0 Button Head Cap Screw 4−232−0 Button Head Cap Screw 6372−10−16 Pull Pin Assembly 25−79−0...
  • Page 105 6500−130−000 Backrest Pouch Option Item Part No. Part Name Qty. 6500−130−000 Backrest Pouch Option...
  • Page 106 6082−260−10 Restraint Strap Package SHOULDER HARNESS ASSEMBLY REQUIRED 1 STRAP REQUIRED 2 STRAPS REQUIRED Item Part No. Part Name Qty. 6060−260−45 Four Point Harness 6060−160−44 Lap Belt 6082−160−51 Plastic Cap 6082−260−046 Chest Restraint Strap 37” 37” Fully Extended Fully Extended...
  • Page 107 6092−128−12 Optional Head End Storage Pouch 28 1/2” FRONT OF POUCH 20 1/4” 20” 6082−160−52 Optional Accessory Strap 27 1/2” 27 1/2” Fully Extended Fully Extended...
  • Page 108 Quick Reference Replacement Parts List NOTE The parts and accessories listed on this page are all currently available for purchase. Some of the parts identi- fied on the assembly drawings pages in this manual may not be individually available for purchase. Please call Stryker Customer Service at 1−800−327−0770 for availability and pricing.
  • Page 109 Quick Reference Replacement Parts List Permanent I.V. Pole Kit, 2−Stage, Right ........6090−210−010 Permanent I.V.
  • Page 110 European Representative Stryker EMEA RA/QA Director Stryker France ZAC Satolas Green Pusignan Av. De Satolas Green 69881 MEYZIEU Cedex France 3800 E. Centre Ave., Portage, MI 49002 (800) 327−0770 www.stryker.com JH 10/05 6092−190−011 REV C...
