Part 2: Name Of Parts - Modena Rapido Series User Manual Book

Flame Peeping Hole
/ Observation
Window
Water Temperature
Controller Knob
*Features depend on the type of the product

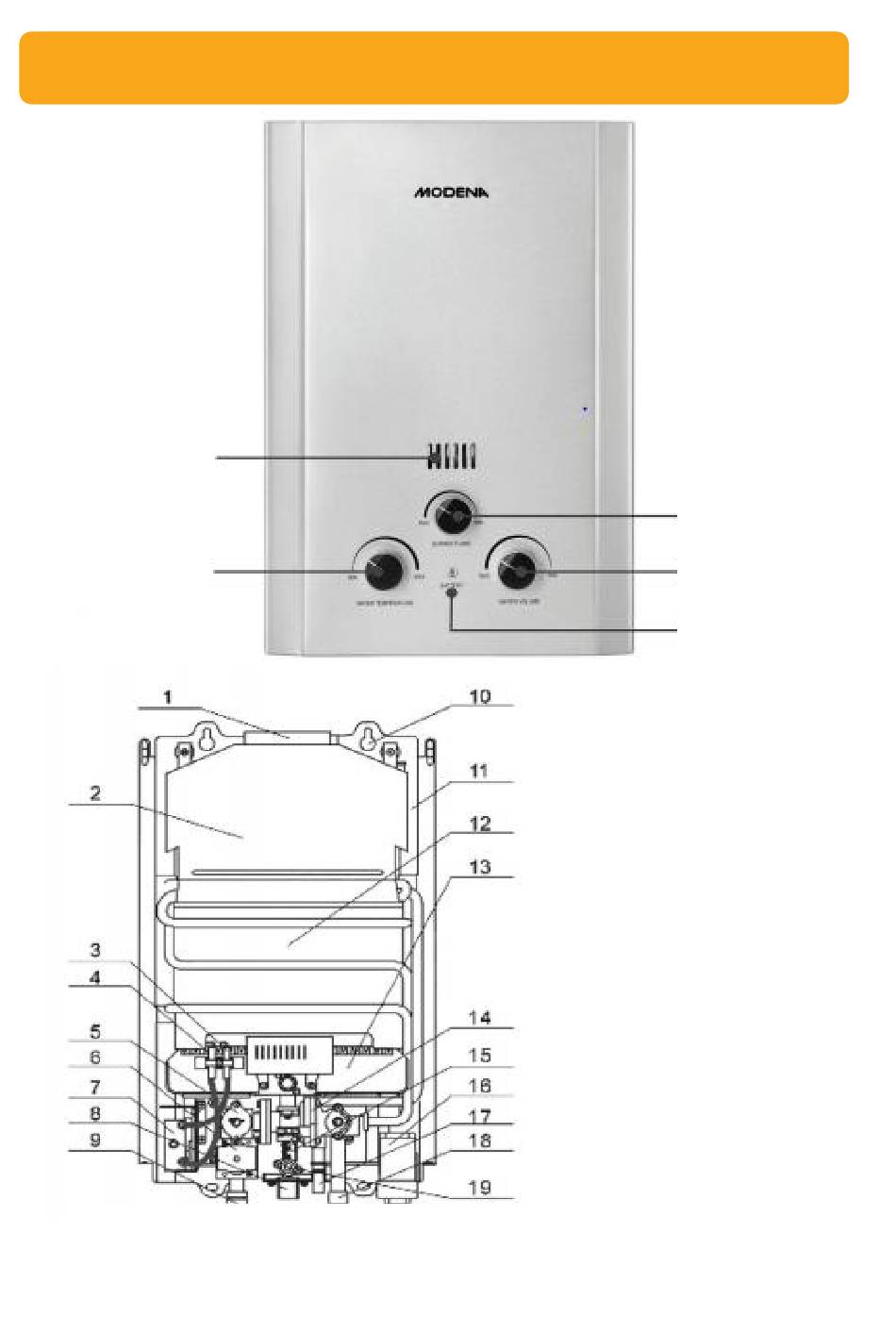

PART 2: NAME OF PARTS

1.
2.
3.
4.
5.
6.
7.
8.
9.
10. Hole for Installation
11.
12. Heat Exchanger Pipe
13. Burner
14. Water Flow Valve
15. Micro Switch
16. Battery Box
17. Water Drainage Pipe
18. Cold Water Inlet
19. Temperature Sensor
4
Flame Controller
Knob
Water Volume
Controller Knob
Battery Indicator
Flue/Exhaust Duct
Steam Collector Funnel
Lighter Plug
Flame Sensor
Gas Inlet Valve
Electromagnetic Valve
Generator Plug
Hot Water Outlet
Gas Inlet
Rear Plate
