HIMatrix
Safety-Related Controller
F2 DO 16 01 Manual
HIMA Paul Hildebrandt GmbH + Co KG
Industrial Automation
Rev. 1.01
HI 800 159 E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F2 DO 16 01 and is the answer not in the manual?

Questions and answers

Related Manuals for HIMA F2 DO 16 01

Summary of Contents for HIMA F2 DO 16 01

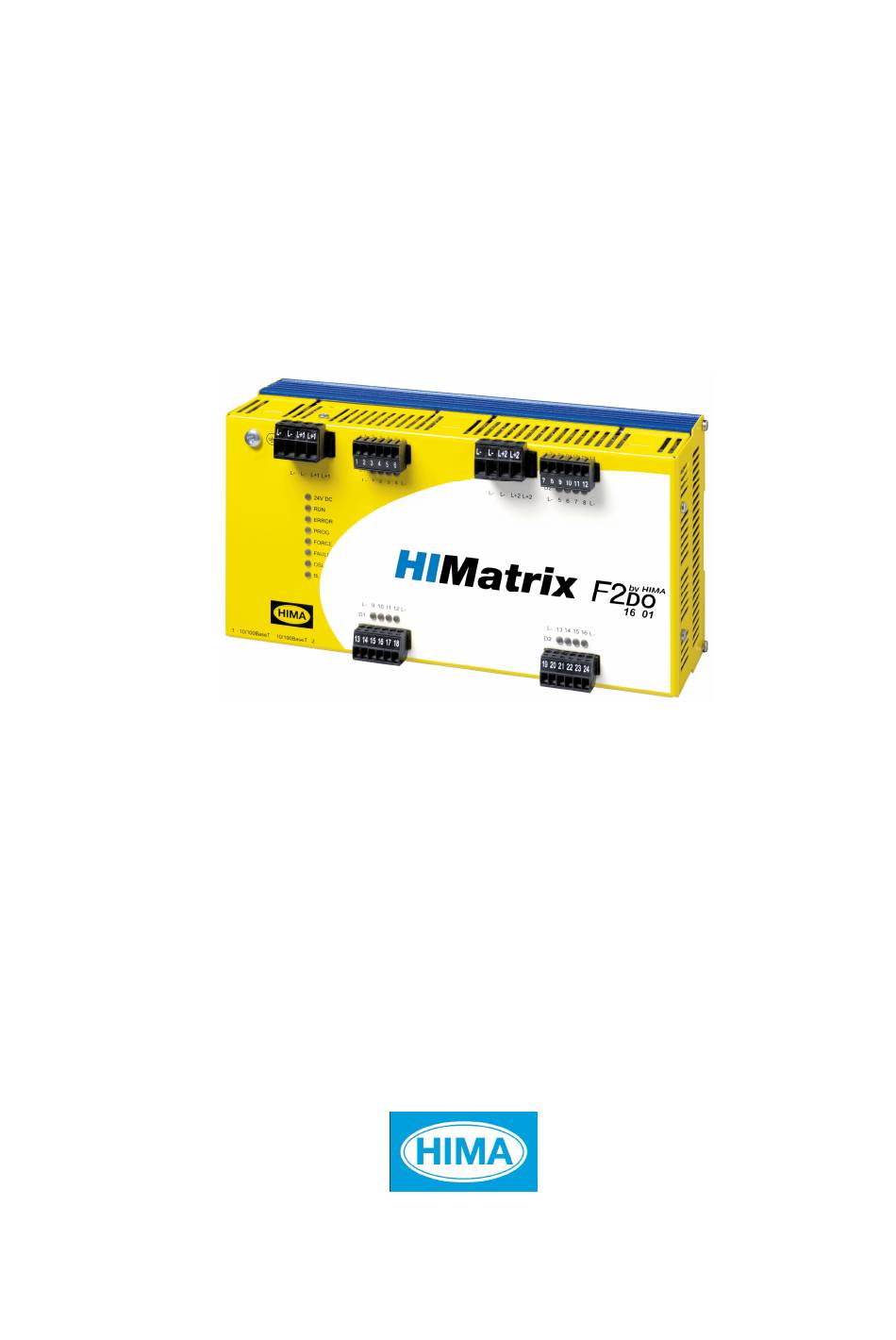

  • Page 1 HIMatrix Safety-Related Controller F2 DO 16 01 Manual HIMA Paul Hildebrandt GmbH + Co KG Industrial Automation Rev. 1.01 HI 800 159 E...
  • Page 2 HIMA directly. HIMA appreciates any suggestion on which information should be included in the manual. Equipment subject to change without notice. HIMA also reserves the right to modify the written material without prior notice. For further information, refer to the CD-ROM and our website http://www.hima.de and http://www.hima.com.

  • Page 3: Table Of Contents

    Connections for Ethernet Communication ............. 18 3.4.2.2 Network Ports Used for Ethernet Communication ..........18 3.4.3 Reset Key ......................19 Product Data......................20 Certified HIMatrix F2 DO 16 01................21 HI 800 159 E Rev. 1.01 Page 3 of 40...
  • Page 4 Connecting the Digital Outputs................22 4.1.2 Connecting the Operating Voltage ................. 23 4.1.3 Mounting the F2 DO 16 01 in Zone 2 ..............24 Configuration ......................25 Configuring a Remote I/O with SILworX............. 25 4.3.1 Parameters and Error Codes for the Output............25 4.3.2...

  • Page 5: Introduction

    F2 DO 16 01 1 Introduction Introduction This manual describes the technical characteristics of the device and its use. It also includes instructions on how to install, start up and replace it. Structure and Use of this Manual The content of this manual is part of the hardware description of the HIMatrix programmable electronic system.

  • Page 6: Target Audience

    ELOP II Factory Table 2: Additional Relevant Documents The latest manuals can be downloaded from the HIMA website www.hima.com. The revision index on the footer can be used to compare the current version of existing manuals with the Internet edition.

  • Page 7: Formatting Conventions

    F2 DO 16 01 1 Introduction Formatting Conventions To ensure improved readability and comprehensibility, the following fonts are used in this document: To highlight important parts Bold: Names of buttons, menu functions and tabs that can be clicked and used in the programming tool.

  • Page 8: Operating Tips

    1 Introduction F2 DO 16 01 1.3.2 Operating Tips Additional information is structured as presented in the following example: The text corresponding to the additional information is located here. Useful tips and tricks appear as follows: The tip text is located here.

  • Page 9: Safety

    F2 DO 16 01 2 Safety Safety The following safety information, notes and instructions must be strictly observed. The product may only be used if all guidelines and safety instructions are adhered to. This product is operated with SELV or PELV. No imminent danger results from the product itself.

  • Page 10: Residual Risk

    2 Safety F2 DO 16 01 Residual Risk No imminent danger results from a HIMatrix system itself. Residual risk may result from: Faults in the engineering Faults in the user program Faults in the wiring Safety Precautions Observe all local safety requirements and use the protective equipment required on site.

  • Page 11: Product Description

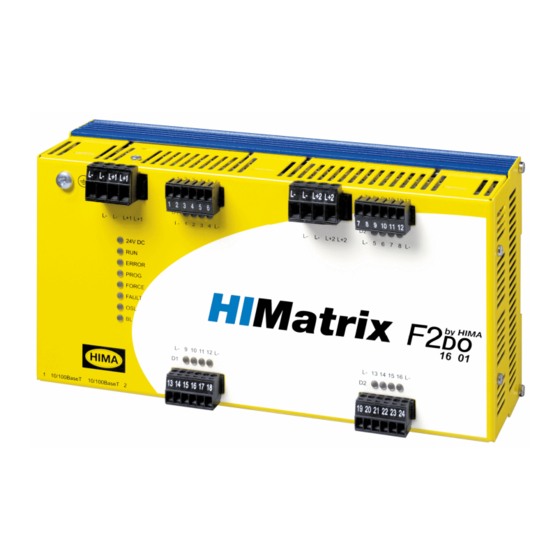

    3 Product Description Product Description The safety-related F2 DO 16 01 remote I/O is a compact system located in a metal enclosure with 16 digital outputs. Die remote I/O is available in a model variant for SILworX and a model variant for ELOP II Factory.

  • Page 12: Reaction In The Event Of A Fault

    Inductive loads may be connected without a free-wheeling diode on the actuator. However, HIMA strongly recommends connecting a protective diode directly to the actuator. If communication is lost, the output is set to the initial value configured. This effect must be taken into account for the behavior of the connected output.

  • Page 13: Equipment, Scope Of Delivery

    F2 DO 16 01 3 Product Description Equipment, Scope of Delivery The available variants and their part numbers are listed below: Designation Description Part no. F2 DO 16 01 Remote I/O with 16 digital outputs, operating 98 2200406 temperature 0…+60 °C, for ELOP II Factory...

  • Page 14: Assembly

    3 Product Description F2 DO 16 01 Assembly This chapter describes the layout and function of the remote I/O, and its communication via safeethernet. 16 01 Figure 3: Front View RJ-45 DO 1 RJ-45 DO 16 16 Digital Outputs Ehernet Switch...

  • Page 15: Led Indicators

    F2 DO 16 01 3 Product Description 3.4.1 LED Indicators The light-emitting diodes (LEDs) indicate the operating state of the remote I/O. The LEDs are classified as follows: Operating voltage LED System LEDs Communication LEDs I/O LEDs 3.4.1.1 Operating Voltage LED...

  • Page 16: System Leds

    3 Product Description F2 DO 16 01 3.4.1.2 System LEDs While the system is being booted, all LEDs are lit simultaneously. Color Status Description Green Device in RUN, normal operation A loaded user program is being executed (not with remote I/Os).

  • Page 17: Communication Leds

    F2 DO 16 01 3 Product Description 3.4.1.3 Communication LEDs All RJ-45 connectors are provided with a green and a yellow LED. The LEDs signal the following states: Status Description Green Full duplex operation Blinking Collision Half duplex operation, no collision...

  • Page 18: Communication

    3 Product Description F2 DO 16 01 3.4.2 Communication The remote I/O communicates with the associated controller via safeethernet. 3.4.2.1 Connections for Ethernet Communication Property Description Ports 2 x RJ-45 Transfer standard 10/100/Base-T, half and full duplex Auto negotiation Auto crossover...

  • Page 19: Reset Key

    F2 DO 16 01 3 Product Description 3.4.3 Reset Key The remote I/O is equipped with a reset key. The key is only required if the user name or password for administrator access is not known. If only the IP address set for the remote I/O does not match the PADT (PC), the connection can be established with a Route add entry on the PC.

  • Page 20: Product Data

    3 Product Description F2 DO 16 01 Product Data General Response time ≥ 20 ms Ethernet interfaces 2 x RJ-45, 10/100BaseT (with 100 Mbit/s) with integrated switch Operating voltage 24 VDC, -15 %...+20 %, w ≤ 15 %, from a power supply unit with safe insulation in accordance with IEC 61131-2.

  • Page 21: Certified Himatrix F2 Do 16 01

    Class I, DIV 2, Groups A, B, C and D Class 3600, 1998 Class 3611, 1999 Class 3810, 1989 Including Supplement #1, 1995 CSA C22.2 No 142 CSA C22.2 No 213 Table 13: Certified HIMatrix F2 DO 16 01 HI 800 159 E Rev. 1.01 Page 21 of 40...

  • Page 22: Start-Up

    4 Start-Up F2 DO 16 01 Start-Up To start up the remote I/O, it must be mounted, connected and configured in the programming tool. Installation and Mounting The remote I/O is mounted on a 35 mm DIN rail such as described in the HIMatrix System Manual for Compact Systems.

  • Page 23: Connecting The Operating Voltage

    F2 DO 16 01 4 Start-Up 4.1.2 Connecting the Operating Voltage Each group includes 8 channels. The two groups are supplied individually with separate operating voltages, however, both clamp terminal blocks must be connected. A group's total current input must not exceed 9 A. If a group exceeds the total current input, it is switched off and then switched on again cyclically.

  • Page 24: Mounting The F2 Do 16 01 In Zone 2

    3. Protect the HIMatrix F2 DO 16 01 with a 10 A time-lag fuse. The F2 DO 16 01 must be supplied with 24 VDC from a power supply unit with safe isolation. Use power supply units of type PELV or SELV only.

  • Page 25: Configuration

    The error codes can also be displayed in SILworX. 4.3.2 Digital Outputs for F2 DO 16 01 The following tables present the statuses and parameters for the output module (DO 16) in the same order as given in the Hardware Editor.

  • Page 26: Module Tab

    4 Start-Up F2 DO 16 01 4.3.2.1 Module Tab The Module tab contains the following system parameters. System parameter Data Description type DO.Error Code WORD Error codes for all digital outputs Coding Description 0x0001 Fault within the digital outputs 0x0002...

  • Page 27: Do 16: Channels Tab

    F2 DO 16 01 4 Start-Up 4.3.2.2 DO 16: Channels Tab The DO 16: Channels tab contains the following system parameters. System Data Description parameter type Channel no. Channel number, defined by default -> Error BYTE Error codes for the digital output channels...

  • Page 28: Digital Outputs For F2 Do 16 01

    4 Start-Up F2 DO 16 01 4.4.3 Digital Outputs for F2 DO 16 01 System Signal Description Mod.SRS [UDINT] Slot number (System Rack Slot) Mod. Type [UINT] Type of module, target value: 0x005A [90 Mod. Error Code Module error code...

  • Page 29: Operation

    F2 DO 16 01 5 Operation Operation The remote I/O can only operate together with a controller. No specific monitoring is required for remote I/Os. Handling Handling of the remote I/O during operation is not required. Diagnosis A first diagnosis results from evaluating the LEDs, see Chapter 3.4.1.

  • Page 30: Maintenance

    6.2.1 Loading the Operating System HIMA is continuously improving the operating system of the devices. HIMA recommends to use system downtimes to load a current version of the operating system into the devices. Refer to the release list to check the consequences of the new operation system version on the system! Load the operating system using the programming tool.

  • Page 31: Decommissioning

    F2 DO 16 01 7 Decommissioning Decommissioning Remove the supply voltage to decommission the device. Afterwards pull out the pluggable screw terminal connector blocks for inputs and outputs and the Ethernet cables. HI 800 159 E Rev. 1.01 Page 31 of 40...

  • Page 32: Transport

    8 Transport F2 DO 16 01 Transport To avoid mechanical damage, HIMatrix components must be transported in packaging. Always store HIMatrix components in their original product packaging. This packaging also provides protection against electrostatic discharge. Note that the product packaging alone is not suitable for transmission.

  • Page 33: Disposal

    9 Disposal Disposal Industrial customers are responsible for correctly disposing of decommissioned HIMatrix hardware. Upon request, a disposal agreement can be arranged with HIMA. All materials must be disposed of in an ecologically sound manner. HI 800 159 E Rev. 1.01...
  • Page 34 9 Disposal F2 DO 16 01 Page 34 of 40 HI 800 159 E Rev. 1.01...

  • Page 35: Appendix

    F2 DO 16 01 Appendix Appendix Glossary Term Description Address Resolution Protocol: Network protocol for assigning the network addresses to hardware addresses Analog Input COMmunication module Cyclic Redundancy Check Digital Input Digital Output ELOP II Factory Programming tool for HIMatrix systems...

  • Page 36: Index Of Figures

    Appendix F2 DO 16 01 Index of Figures Figure 1: Connection of Actuators to Outputs Figure 2: Sample Type Label Figure 3: Front View Figure 4: Block Diagram Figure 5: Sample MAC Address Label Figure 6: Label for Ex Conditions Page 36 of 40 HI 800 159 E Rev.

  • Page 37: Index Of Tables

    Network Ports in Use Table 11: Product Data Table 12: Specifications for the Digital Outputs Table 13: Certified HIMatrix F2 DO 16 01 Table 14: Terminal Assignment for the Digital Outputs Table 15: Connecting the Operating Voltage Table 16: SILworX - System Parameters for Digital Outputs, Module Tab...

  • Page 38: Index

    Appendix F2 DO 16 01 Index diagnosis..........30 part number ..........13 fault reaction safeethernet..........19 digital outputs ........12 SRS ............13 Page 38 of 40 HI 800 159 E Rev. 1.01...
  • Page 40 HIMA Paul Hildebrandt GmbH + Co KG P.O. Box 1261 68777 Brühl, Germany Tel: +49 6202 709-0 Fax: +49 6202 709-107 E-mail: info@hima.com Internet: www.hima.com (1025)
