Configure which alarms are and are not reported in this field as follows:
1. Click ALARM SETTINGS (see
dialog box opens (see figure 43).

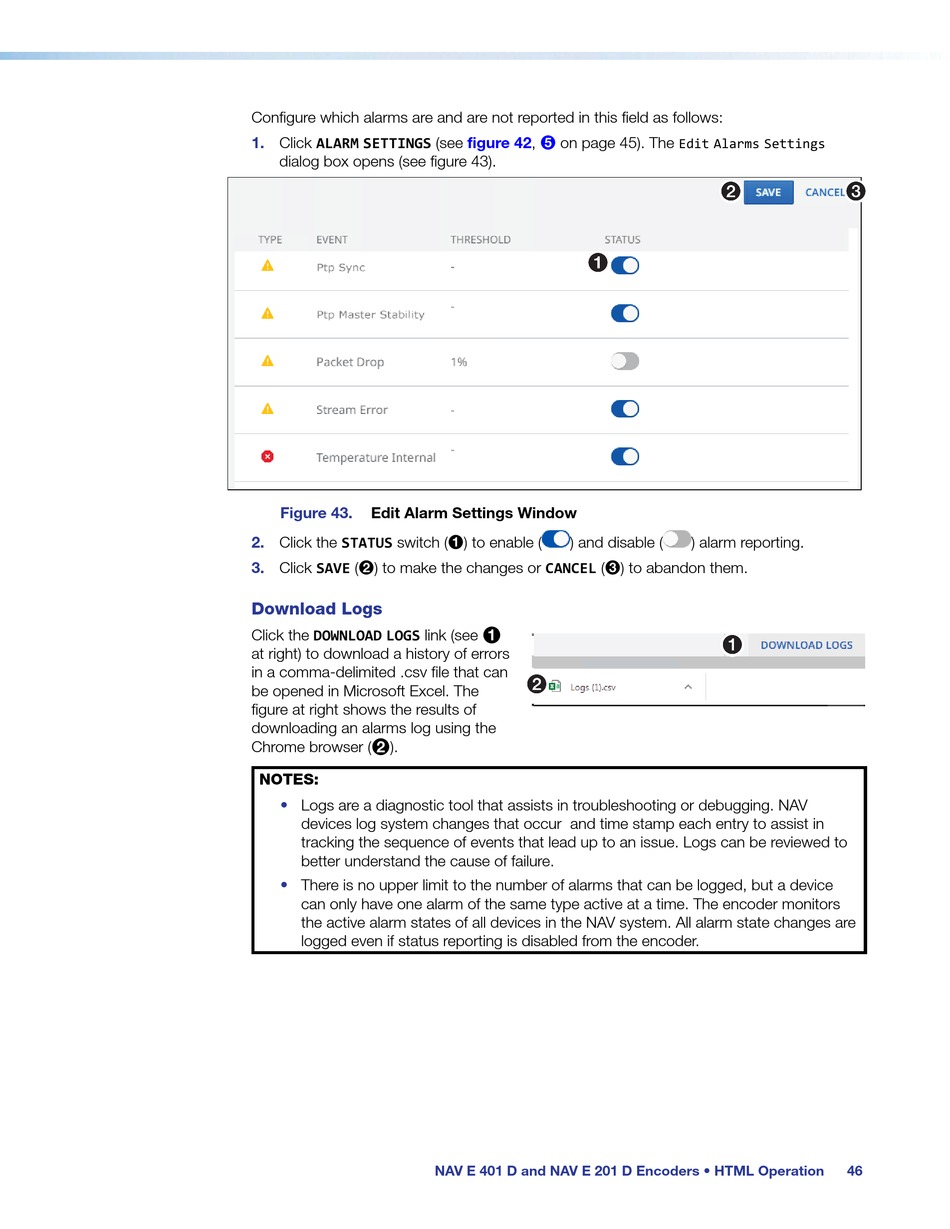

Figure 43. Edit Alarm Settings Window
2.
Click the STATUS switch (
3. Click SAVE ( ) to make the changes or CANCEL (
2
Download Logs
Click the DOWNLOAD LOGS link (see
at right) to download a history of errors
in a comma-delimited .csv file that can
be opened in Microsoft Excel. The
figure at right shows the results of
downloading an alarms log using the
Chrome browser ( ).
2
NOTES:
• Logs are a diagnostic tool that assists in troubleshooting or debugging. NAV
devices log system changes that occur and time stamp each entry to assist in
tracking the sequence of events that lead up to an issue. Logs can be reviewed to
better understand the cause of failure.
•
There is no upper limit to the number of alarms that can be logged, but a device
can only have one alarm of the same type active at a time. The encoder monitors
the active alarm states of all devices in the NAV system. All alarm state changes are
logged even if status reporting is disabled from the encoder.
