Connecting the KVR accessory

The KVR 10 accessory is used to safely drain off
most of the condensate from the air/water heat pump
to a frost-free collection point.
HYDRAULIC CONNECTION
For information on hydraulic connection of the KVR 10
accessory, see the instructions for the KVR accessory.
ELECTRICAL CONNECTION

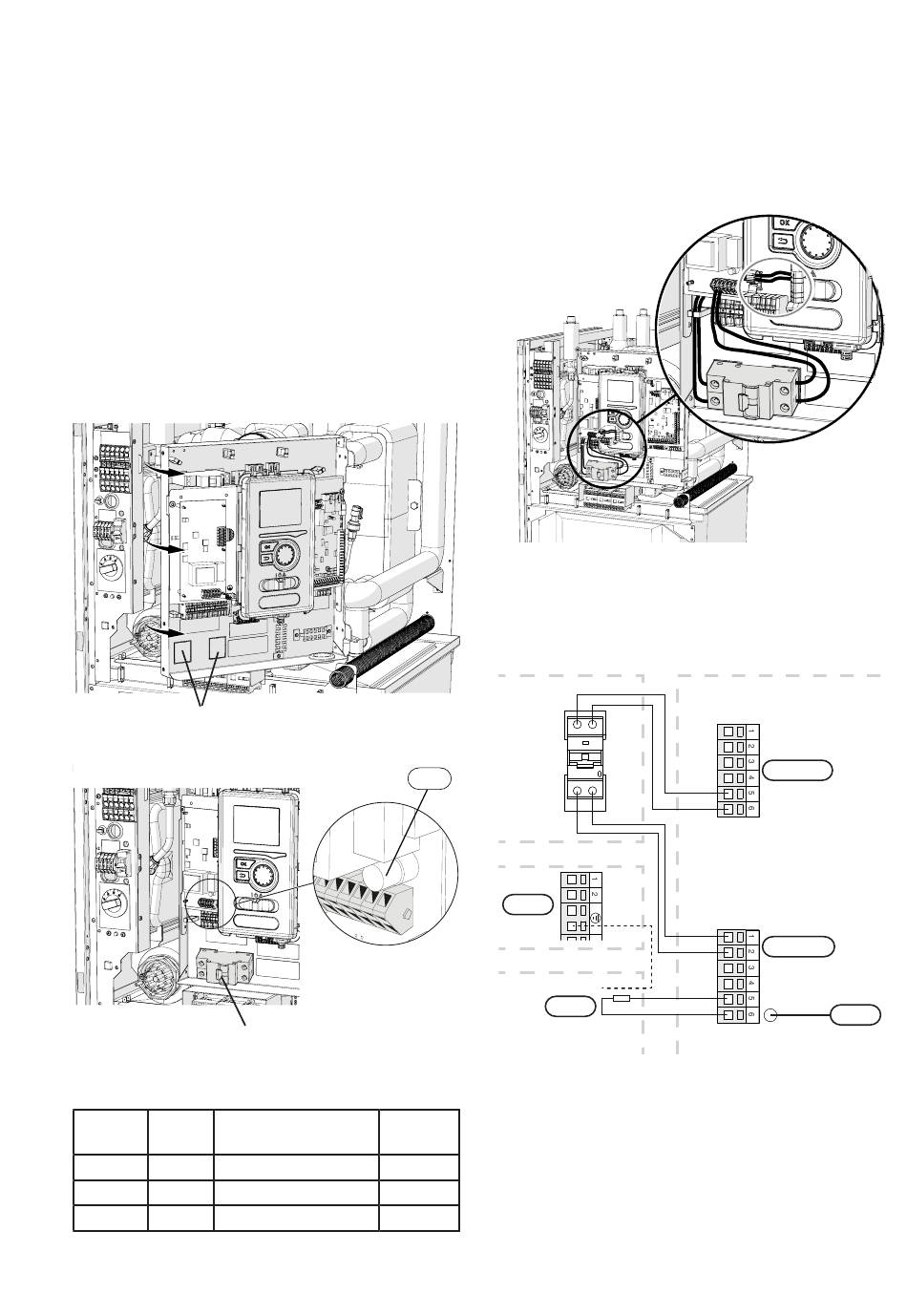

In order to connect the electric KVR accessory:
1. Open the control panel and punch-out the
notched plates in the control panel casing under
the residual-current device.
Plates to be punched-out
2. Attach the residual-current device RCD.
Residual-current device RCD
3. Use fuse (F3) depending on the length of the
KVR cable in accordance with the below table.
Length P
(m) (W)
1 15
3 45
6 90
*Fitted at the factory
Chapter 12 | Accessories
66
Fuse (F3)
tot
T100mA/250V
T250mA/250V
T500mA/250V
4. Connect a residual-current device to terminal
AA2-X1 under terminal block 5(N) and 6(L).
5. Connect a residual-current device to terminal
AA23-X1 to terminal blocks 1(L) and 2(N).
6. Connect an external heating cable (EB14) to ter-
minal AA23-X1 to terminal blocks: 4 (PE), 5 (N),
6 (L).
Residual-current
różnicowoprądowy RCD
F3
HT 6Split / HT 12Split
BA-SVM 10-200
X1
EB14
Zewnętrzny kabel
External heating
Part no.
718 085
518 900*
718 086
Wyłącznik
HT 6Split / HT 12Split
BA-SVM 10-200
device RCD
N
L
PE
L
N
KVR 10
PE
N
L
grzejny
cable
AA2-X1
AA23-X1
F3
HT 6Split
HT 12Split
