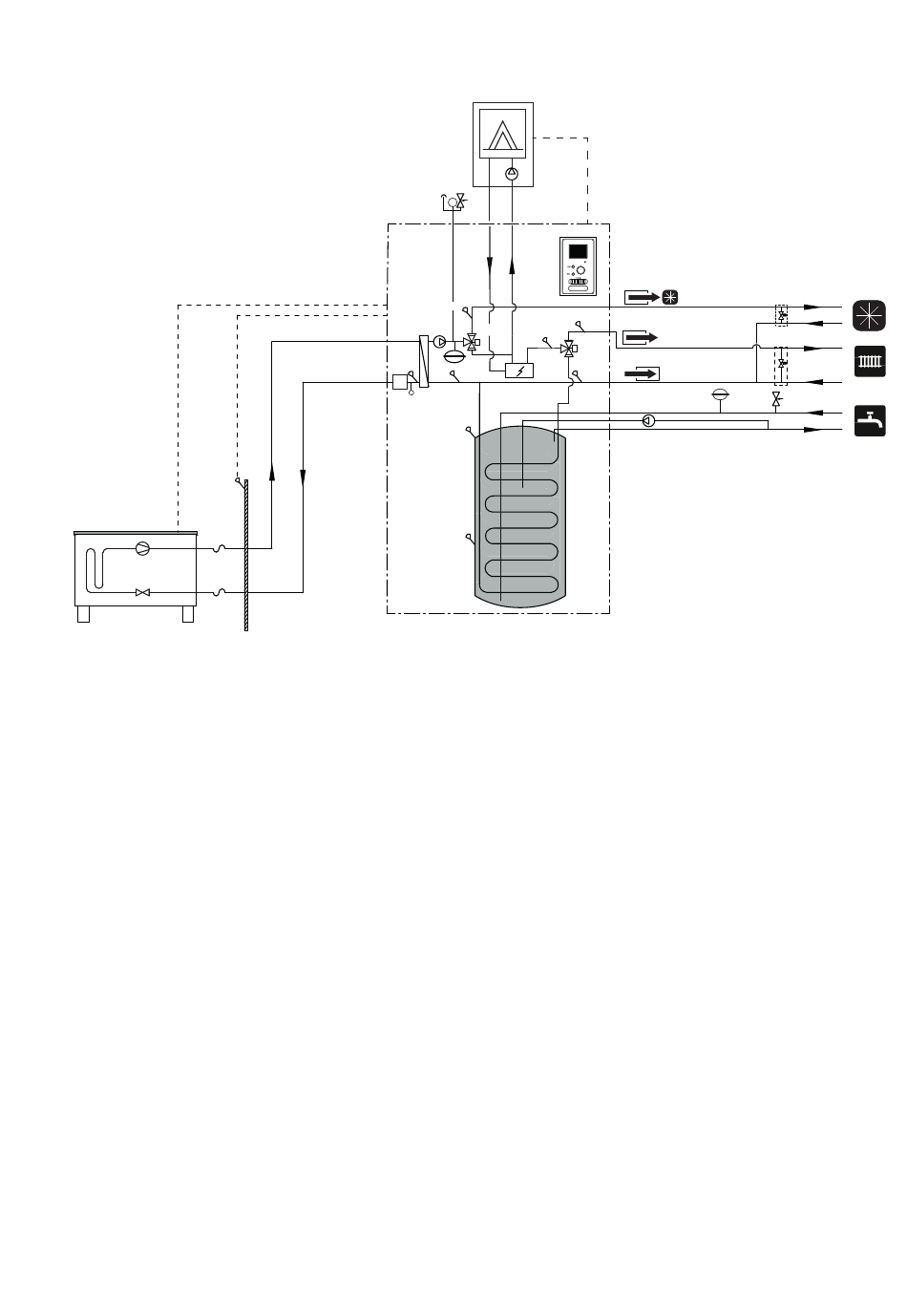

Scheme with the connection of an additional heat source
-EB101
Indoor HT 6Split / HT 12Split module
• It is recommended that the HT 6Split / HT 12Split
module should be installed in a room with a floor
drain, at best in a utility room or a boiler house.
The floor must be solid, concrete at best.
•
• The HT 6Split / HT 12Split module must be set
with its back to the outer wall, at best in a room
where noise is not a problem. If possible, do not
place the device near a wall of a bedroom or an-
other room where noise might be a problem.
• The device can be leveled using regulated legs.
• Pipes must be led in such a way that they are not
adjacent to the bedroom or living room.
• Remember to leave about 800 mm free space at
the front and 220 mm over the device to provide
for future maintenance.
Chapter 4 |
12 Pipe connections
-BT1
P
XL19 XL18
-BT64
-GP12
-QN12
-BT63
-BT15
-BT3
HS1 -BP4
P
-BT7
-BT6
Recommended order of assembly
1. Connect HT 6Split / HT 12Split module to the
heating system, cold, and hot water pipelines.
2. Install the cooling medium pipes.
3. Connect the outdoor temperature sensor, and ca-
bles between HT 6Split / HT 12Split and LSplit.
4. Connect power supply to module HT 6Split / HT
12Split.
5. Proceed according to start-up instructions in
chapter Start-up and regulation.
XL10
-BT25
-QN10
XL1
-BT71
XL2
SHK 200S
HT 6Split
SHK 200S-6
HT 12Split
HT 6Split
HT 12Split
