Menu 5.3.11 - Modbus
IMPORTANT
Menu 5.3.11 is deactivated in the factory settings. For
this menu function to be active, it is necessary to install
accessory Modbus Split and activate it in the Accessories
menu 5.2.4.
For a detailed description of how to program accessories,
refer to the instructions of the individual accessories.
Menu 5.3.12 - Exhaust/supply air module
IMPORTANT
Menu 5.3.12 is deactivated in the factory settings. For
this menu function to be active, it is necessary to in-
stall accessory and activate it in the Accessories menu
5.2.4.
For a detailed description of how to program accessories,
refer to the instructions of the individual accessories.
Menu 5.3.14 - F135
IMPORTANT
Menu 5.3.14 is deactivated in the factory settings. For
this menu function to be active, it is necessary to install
accessory and activate it in the Accessories menu 5.2.4.
For a detailed description of how to program accessories,
refer to the instructions of the individual accessories.
Menu 5.3.16 - Humidity sensor
IMPORTANT
Menu 5.3.16 is deactivated in the factory settings. For
this menu function to be active, it is necessary to install
accessory and activate it in the Accessories menu 5.2.4
For a detailed description of how to program accessories,
refer to the instructions of the individual accessories.
Menu 5.3.21 - flow sensor / energy meter
IMPORTANT
Menu 5.3.21 is deactivated in the factory settings. For
this menu function to be active, it is necessary to install
accessory and activate it in the Accessories menu 5.2.4.
For a detailed description of how to program accessories,
refer to the instructions of the individual accessories.
Chapter 9 |
56 Control

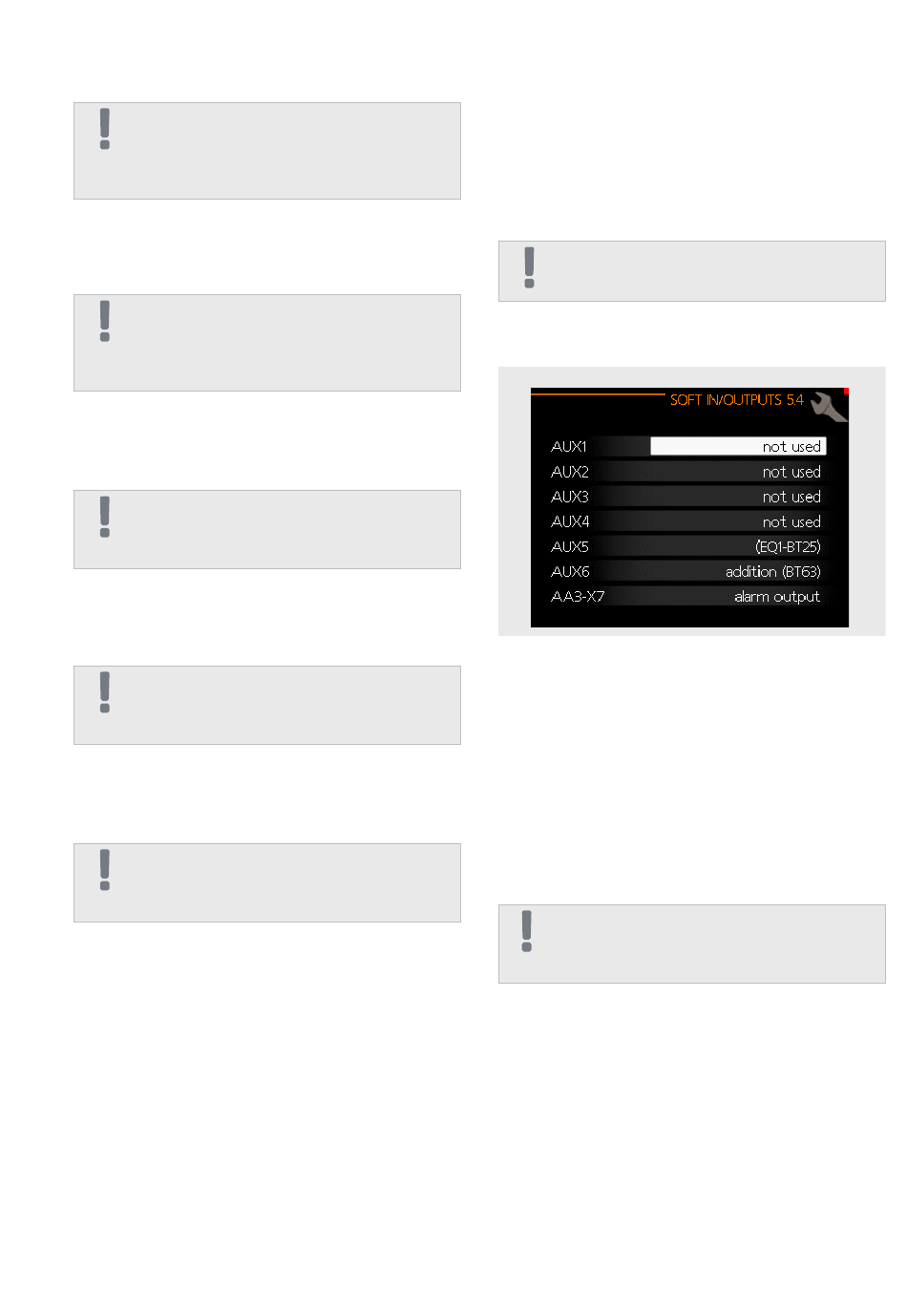

Menu 5.4 - Selectable in/outputs
In this menu you can select which input on the input
board (AA3) the external contact function
can be connected to.
Available inputs on the terminal blocks AUX1-3
(AA3-X6:9-14). The AUX inputs are freely program-
mable and allow for the introduction of additional
functions using external contacts.
IMPORTANT
The contact to the AUX input must be a potential-free
contact (normally open-normally closed).
Input AA3-X7 can be programmed according to your
needs.
Factory setting:
Possible configurations AA3-X7:
• Not used,
• Holiday,
Away mode,
•
Alarm output,
•
• Hot water recirculation,
• Ext heat. med. pump
Menu 5.5 - Factory setting service
All settings can be reset (including settings available
to the user) to factory default values here.
IMPORTANT
After resetting, the start guide will be displayed the
next time the control module is started up, and the set-
tings will be lost.
Menu 5.6 - Forced control
You can force control the different components in the
control module and any connected accessory in this
menu.
This menu is used for testing individual components of the
HT 6Split / HT 12Split .
