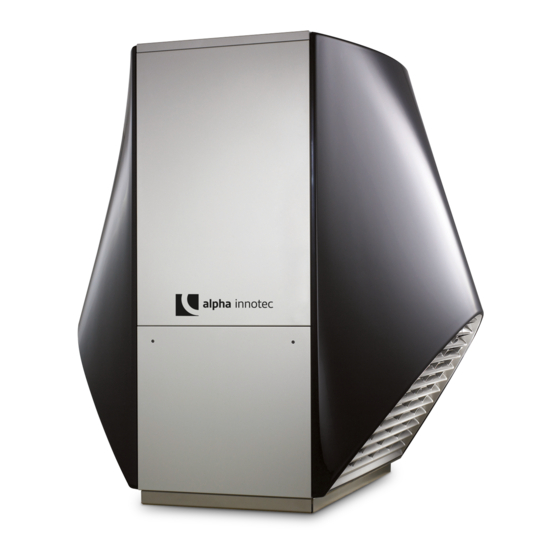

- Page 1 Operati ng manual aIr/water Heat PumPs Outdoor Installation Lw a series Lw H-a series We reserve the right to modify technical specifications without prior notice. UK830532/200610 © Alpha-InnoTec GmbH...
-
Page 2: Please Read First
Indicates suggestions that help to save energy, raw materials and costs. Reference to other sections of the operating manual. Reference to other instructions of the manufac- turer. We reserve the right to modify technical specifications without prior notice. UK830532/200610 © Alpha-InnoTec GmbH... -
Page 3: Table Of Contents
251… – lW 310…............48 mAlfUNcTIoNS ...............7 TeRmINAl dIAGRAmS LW 71A – LW 81A • LW 150H-A – LW 320H-A ...49 lW 101A – lW 251A ............50 INSTRUcTIoNS foR qUAlIfIed TecHNIcIANS lW 310A ................51 cIRcUIT dIAGRAmS Scope of delIveRy ..............8... -
Page 4: Intended Use
The unit bears the ce mark of conformity. ec declaration of conformity We reserve the right to modify technical specifications without prior notice. UK830532/200610 © Alpha-InnoTec GmbH... -
Page 5: Customer Service
Install the heat pump so that the air blower does not blow in the direction of footpaths. We reserve the right to modify technical specifications without prior notice. UK830532/200610 © Alpha-InnoTec GmbH... -
Page 6: Operating Principle Of Heat Pumps
€ When letting in fresh air, do not leave windows open for an extended period, thus saving energy and reducing your heating costs. We reserve the right to modify technical specifications without prior notice. UK830532/200610 © Alpha-InnoTec GmbH... -
Page 7: Care Of The Unit
In order to ensure prob- lem-free operations, the ice must be removed on a reg- ular basis. We reserve the right to modify technical specifications without prior notice. UK830532/200610 © Alpha-InnoTec GmbH... -
Page 8: Scope Of Delivery
121…) with fully hermetically enclosed compressor, all safety-related components for monitoring of cooling circuit and hose for condensate discharge (connected on heat pump side). We reserve the right to modify technical specifications without prior notice. UK830532/200610 © Alpha-InnoTec GmbH... -
Page 9: Installation And Assembly
With the lW 310A, you must select the electrical heat- ing element for the specific system and order it sepa- rately. We reserve the right to modify technical specifications without prior notice. UK830532/200610 © Alpha-InnoTec GmbH... -
Page 10: Installation
Installation plan for respective unit model. notICe.: set up the unit so that the switch cabinet side (= operating side) is accessible at all times. We reserve the right to modify technical specifications without prior notice. UK830532/200610 © Alpha-InnoTec GmbH... - Page 11 2 lower facing panel loosen quick-release screws. Turn counter-clock- wise 90°… on both sides, pull lower facing panel upward and outward, detach and set securely aside. We reserve the right to modify technical specifications without prior notice. UK830532/200610 © Alpha-InnoTec GmbH...
- Page 12 We reserve the right to modify technical specifications without prior notice. UK830532/200610 © Alpha-InnoTec GmbH...
- Page 13 A front view (operator side) b Side view 1 Danger! Lifting straps should not be too close to- gether or too near the center; otherwise the unit may tip! We reserve the right to modify technical specifications without prior notice. UK830532/200610 © Alpha-InnoTec GmbH...
-
Page 14: Attaching The Air Flow Baffles
Remove top cover and pull each facing panel forward, detach from the unit set securely aside… and set securely aside… 1 lower facing panels We reserve the right to modify technical specifications without prior notice. UK830532/200610 © Alpha-InnoTec GmbH... - Page 15 (see “electrical connection work”, “Heat pump side side… connection of control and sensor wires”) )… CautIon. During extended interruptions in work, close the unit with the lower facing panels. We reserve the right to modify technical specifications without prior notice. UK830532/200610 © Alpha-InnoTec GmbH...
-
Page 16: Installation / Connection To Heating Circuit
When installing the connections, always secure the connections on the unit from twisting, in order to prevent damage to the copper pipes in the interior of the unit. We reserve the right to modify technical specifications without prior notice. UK830532/200610 © Alpha-InnoTec GmbH... -
Page 17: Condensate Discharge
2 Hot water outflow permitted only via a funnel siphon, which must be acces- (forward flow) connection sible at all times. 3 condensate water hose We reserve the right to modify technical specifications without prior notice. UK830532/200610 © Alpha-InnoTec GmbH... -
Page 18: Pressure Relief
They are optimized for use with your heat pump. notICe.: Integrate the hot-water tank in the heat pump system corresponding to the hy- draulic diagram for your system. We reserve the right to modify technical specifications without prior notice. UK830532/200610 © Alpha-InnoTec GmbH... -
Page 19: Electrical Connections
– an incorrect rotary field of the com- 1 connection box for electric pressor during operation can cause heating element serious, irreparable damage to the 2 connection box for compressor compressor. We reserve the right to modify technical specifications without prior notice. UK830532/200610 © Alpha-InnoTec GmbH... - Page 20 “Terminal diagrams” and “circuit diagrams” for the respective model. operating manual of the heating and heat pump regulator. Seal empty pipes on unit side… We reserve the right to modify technical specifications without prior notice. UK830532/200610 © Alpha-InnoTec GmbH...
- Page 21 15 cm. We reserve the right to modify technical specifications without prior notice. UK830532/200610 © Alpha-InnoTec GmbH...
-
Page 22: Filling And Bleeding The System
In other countries: Send completion report for heat pump systems and general checklist to the manufacturer’s local partner. overview “customer service”. We reserve the right to modify technical specifications without prior notice. UK830532/200610 © Alpha-InnoTec GmbH... -
Page 23: Safety Temperature Limiter
Dispose of battery and electronic compo- nents in keeping with environmental con- siderations. We reserve the right to modify technical specifications without prior notice. UK830532/200610 © Alpha-InnoTec GmbH... -
Page 24: Technical Data / Scope Of Delivery
*) depending on components tolerances and flow **) comply with local regulations n.n. = not detectable w.w. = to choice ¹) hot water return ²) hot water flow We reserve the right to modify technical specifications without prior notice. UK830532/200610 © Alpha-InnoTec GmbH... - Page 25 LW 71A LW 81A LW 101A LW 121A — ı • ı — — ı • ı — — ı • ı — — ı • ı — — ı • — ı • — ı • — ı •...
-
Page 26: Lw 140A - Lw 310A
*) depending on components tolerances and flow **) comply with local regulations n.n. = not detectable w.w. = to choice ¹) hot water return ²) hot water flow We reserve the right to modify technical specifications without prior notice. UK830532/200610 © Alpha-InnoTec GmbH... - Page 27 — ı — ı — — ı — ı — — ı — ı — — — — — — — — — 813514c 813515c 813516c 813507d We reserve the right to modify technical specifications without prior notice. UK830532/200610 © Alpha-InnoTec GmbH...
-
Page 28: Lw 150H-A - Lw 320H-A
*) depending on components tolerances and flow **) comply with local regulations n.n. = not detectable w.w. = to choice ¹) hot water return ²) hot water flow We reserve the right to modify technical specifications without prior notice. UK830532/200610 © Alpha-InnoTec GmbH... - Page 29 — ı — — — — — — — • • — ı — ı — — ı — ı — — — — — 813069-c 813072-e We reserve the right to modify technical specifications without prior notice. UK830532/200610 © Alpha-InnoTec GmbH...
-
Page 30: Performance Curves
Pressure loss heat pump Compressor(s) Leistungs-Druckverlustkurven Bezeichnung: Änd./Ä.M./Ersteller/Datum LW 71A Seite: 1/1 - / PEP030-2009 / Opel / 14.04.10 Zeichnungsnummer: 823150 Datei: 823150 Leistungs- Druckverlustkurven LW 71A.xls We reserve the right to modify technical specifications without prior notice. UK830532/200610 © Alpha-InnoTec GmbH... -
Page 31: Lw81A.
Pressure loss heat pump Compressor(s) Leistungs-Druckverlustkurven Bezeichnung: Änd./Ä.M./Ersteller/Datum LW 81A Seite: 1/1 - / PEP030-2010 / Opel / 16.03.10 Zeichnungsnummer: 823151 Datei: 823151 Leistungs- Druckverlustkurven LW81A.xls We reserve the right to modify technical specifications without prior notice. UK830532/200610 © Alpha-InnoTec GmbH... - Page 32 Compressor(s) Leistungs-Druckverlustkurven Bezeichnung: Änd./Ä.M./Ersteller/Datum LW 101 (A) Seite: 1/1 - / PEP026-2009 / Opel / 16.04.10 Zeichnungsnummer: 823152 Datei: 823152 Leistungs- Druckverlustkurven LW 101 (A).xls We reserve the right to modify technical specifications without prior notice. UK830532/200610 © Alpha-InnoTec GmbH...
- Page 33 Compressor(s) Leistungs-Druckverlustkurven Bezeichnung: Änd./Ä.M./Ersteller/Datum LW 121 (A) Seite: 1/1 - / PEP027-2009 / Opel / 16.04.10 Zeichnungsnummer: 823153 Datei: 823153 Leistungs- Druckverlustkurven LW 121 (A).xls We reserve the right to modify technical specifications without prior notice. UK830532/200610 © Alpha-InnoTec GmbH...
- Page 34 Pressure loss heat pump Compressor(s) Leistungs-Druckverlustkurven Bezeichnung: Änd./Ä.M./Ersteller/Datum LW 140 (L;A) Seite: 1/1 - / PEP028-2009 / Opel / 16.03.10 Zeichnungsnummer: 823154 Datei: 823154 Leistungs- Druckverlustkurven LW140 (L;A).xls We reserve the right to modify technical specifications without prior notice. UK830532/200610 © Alpha-InnoTec GmbH...
- Page 35 Pressure loss heat pump Compressor(s) Leistungs-Druckverlustkurven Bezeichnung: Änd./Ä.M./Ersteller/Datum LW180 (L;A) Seite: 1/1 - / PEP 028/2009 / Opel / 26.04.10 Zeichnungsnummer: 823155 Datei: 823155 Leistungs- Druckverlustkurven LW180 (L;A).xls We reserve the right to modify technical specifications without prior notice. UK830532/200610 © Alpha-InnoTec GmbH...
- Page 36 Pressure loss heat pump Compressor(s) Leistungs-Druckverlustkurven Bezeichnung: Änd./Ä.M./Ersteller/Datum LW251 (L;A) Seite: 1/1 - / PEP 029/2009 / Opel / 11.05.10 Zeichnungsnummer: 823156 Datei: 823156 Leistungs- Druckverlustkurven LW251 (L;A).xls We reserve the right to modify technical specifications without prior notice. UK830532/200610 © Alpha-InnoTec GmbH...
- Page 37 Seite: 1/1 - / PEP 020/2009 / Opel / 25.11.09 Zeichnungsnummer: 823147a a / PEP 020/2009 / Opel / 22.04.10 Datei: 823147a Leistungs- Druckverlustkurven LW310 (L;A).xls We reserve the right to modify technical specifications without prior notice. UK830532/200610 © Alpha-InnoTec GmbH...
-
Page 38: Lw 150H-A
Bezeichnung: Änd./Ä.M./Ersteller/Datum ∆p” Pressure loss heat pump LW150H-A Seite: 1/1 - / ÄM001-2007 / Rüttinger / 17.04.07 Compressor(s) Zeichnungsnummer: 823111 Datei: 823111 Leistungs- Druckverlustkurven LW150H-A.xls We reserve the right to modify technical specifications without prior notice. UK830532/200610 © Alpha-InnoTec GmbH... -
Page 39: Lw 320H-A
Änd./Ä.M./Ersteller/Datum LW320H-A Seite: 1/1 - / ÄM001-2007 / Rüttinger / 17.04.07 Zeichnungsnummer: 823116a a / ÄM003-2010 / Opel / 01.02.10 Datei: 823116a Leistungs- Druckverlustkurven LW320H-A.xls We reserve the right to modify technical specifications without prior notice. UK830532/200610 © Alpha-InnoTec GmbH... -
Page 40: Sound Pressure Level
(A) dB (A) dB (A) dB (A) dB (A) dB (A) dB (A) LW71A, LW81A LW101A LW121A LW140A LW180A LW251A LW310A LW150H-A LW320H-A 813099a We reserve the right to modify technical specifications without prior notice. UK830532/200610 © Alpha-InnoTec GmbH... -
Page 41: Dimensional Drawings
Top view Zust. Änderungstext Hot water outflow (forward flow) R1" Hot water inflow (return flow) R1" Condensate hose diameter 36 mm Air inflow Air outflow We reserve the right to modify technical specifications without prior notice. UK830532/200610 © Alpha-InnoTec GmbH... -
Page 42: Lw 101... – Lw 251... • Lw 320H
LW 140A PEP 0 LW 180A 1931 1050 1780 R 1¼“ R 1¼“ Zust. Ände LW 320H-A LW 251A 1779 1258 1817 R 1¼“ R 1¼“ We reserve the right to modify technical specifications without prior notice. UK830532/200610 © Alpha-InnoTec GmbH... - Page 43 All dimensions in mm. Front view Side view Top view Heating water outflow (forward flow) Heating water inflow (return flow) Condensate hose diameter 36 Air direction We reserve the right to modify technical specifications without prior notice. UK830532/200610 © Alpha-InnoTec GmbH...
- Page 44 Empty pipe for electric cables, minimum diameter 70mm *) ÄM 999/201 Condensate discharge, minimum diameter 50mm *) PEP 030/20 Base Zust. Änderungst Air inflow Air outflow see planning documents We reserve the right to modify technical specifications without prior notice. UK830532/200610 © Alpha-InnoTec GmbH...
-
Page 45: Installation Plans Lw 71
Empty pipe for electric cables, minimum diameter 70mm Condensate discharge, minimum diameter 50mm water-permeable surface (gravel, …) in the air outlet area Base Air direction We reserve the right to modify technical specifications without prior notice. UK830532/200610 © Alpha-InnoTec GmbH... - Page 46 Empty pipe for electric cables, minimum diameter 70mm Condensate discharge, minimum diameter 50mm water-permeable surface (gravel, …) in the air outlet area Base Air direction We reserve the right to modify technical specifications without prior notice. UK830532/200610 © Alpha-InnoTec GmbH Zust.
-
Page 47: Lw 140
Empty pipe for electric cables, minimum diameter 70mm Condensate discharge, minimum diameter 50mm water-permeable surface (gravel, …) in the air outlet area Base Air direction We reserve the right to modify technical specifications without prior notice. Ä UK830532/200610 © Alpha-InnoTec GmbH Zust. Ä... -
Page 48: Lw 251... – Lw 310
Empty pipe for electric cables, minimum diameter 70mm Condensate discharge, minimum diameter 50mm water-permeable surface (gravel, …) in the air outlet area Base Air direction We reserve the right to modify technical specifications without prior notice. UK830532/200610 © Alpha-InnoTec GmbH... -
Page 49: Terminal Diagrams
LW 71A – LW 81A • LW 150H-A – LW 320H-A 3~PE/400V/50Hz 3~N/PE/400V/50Hz 3~N/PE/400V/50Hz 1~N/PE/230V/50Hz B10 A ZW2/SST We reserve the right to modify technical specifications without prior notice. UK830532/200610 © Alpha-InnoTec GmbH... -
Page 50: Lw 101A - Lw 251A
Lw 101a – Lw 251a terminal diagram 3~N/PE/400V/50Hz 3~N/PE/400V/50Hz 3~N/PE/400V/50Hz 1~N/PE/230V/50Hz B10 A ZW2/SST We reserve the right to modify technical specifications without prior notice. UK830532/200610 © Alpha-InnoTec GmbH... - Page 51 Lw 310a 3~PE/400V/50Hz 3~N/PE/400V/50Hz 3~N/PE/400V/50Hz 1~N/PE/230V/50Hz B10 A ZW2/SST We reserve the right to modify technical specifications without prior notice. UK830532/200610 © Alpha-InnoTec GmbH...
-
Page 52: Lw 71A • Lw 81A
LW 71A • LW 81A Circuit diagram 1/2 We reserve the right to modify technical specifications without prior notice. UK830532/200610 © Alpha-InnoTec GmbH... - Page 53 Circuit diagram 2/2 LW 71A • LW 81A We reserve the right to modify technical specifications without prior notice. UK830532/200610 © Alpha-InnoTec GmbH...
-
Page 54: Lw 101A • Lw 121A
LW 101A • LW 121A Circuit diagram 1/2 +10V 0-10V We reserve the right to modify technical specifications without prior notice. UK830532/200610 © Alpha-InnoTec GmbH... - Page 55 Circuit diagram 2/2 LW 101A • LW 121A We reserve the right to modify technical specifications without prior notice. UK830532/200610 © Alpha-InnoTec GmbH...
- Page 56 Lw 140a Circuit diagram 1/2 +10V +24V We reserve the right to modify technical specifications without prior notice. UK830532/200610 © Alpha-InnoTec GmbH...
- Page 57 Circuit diagram 2/2 Lw 140a We reserve the right to modify technical specifications without prior notice. UK830532/200610 © Alpha-InnoTec GmbH...
- Page 58 Lw 180a Circuit diagram 1/2 +10V +24V We reserve the right to modify technical specifications without prior notice. UK830532/200610 © Alpha-InnoTec GmbH...
- Page 59 Circuit diagram 2/2 Lw 180a We reserve the right to modify technical specifications without prior notice. UK830532/200610 © Alpha-InnoTec GmbH...
- Page 60 Lw 251a Circuit diagram 1/3 +10V +24V We reserve the right to modify technical specifications without prior notice. UK830532/200610 © Alpha-InnoTec GmbH...
- Page 61 Circuit diagram 2/3 Lw 251a We reserve the right to modify technical specifications without prior notice. UK830532/200610 © Alpha-InnoTec GmbH...
- Page 62 Lw 251a Circuit diagram 3/3 We reserve the right to modify technical specifications without prior notice. UK830532/200610 © Alpha-InnoTec GmbH...
- Page 63 Circuit diagram 1/2 Lw 310a We reserve the right to modify technical specifications without prior notice. UK830532/200610 © Alpha-InnoTec GmbH...
- Page 64 Lw 310a Circuit diagram 2/2 We reserve the right to modify technical specifications without prior notice. UK830532/200610 © Alpha-InnoTec GmbH...
-
Page 65: Lw 150H-A
Circuit diagram 1/2 Lw 150H-a We reserve the right to modify technical specifications without prior notice. UK830532/200610 © Alpha-InnoTec GmbH... - Page 66 Lw 150H-a Circuit diagram 2/2 We reserve the right to modify technical specifications without prior notice. UK830532/200610 © Alpha-InnoTec GmbH...
-
Page 67: Lw 320H-A
Circuit diagram 1/2 Lw 320H-a We reserve the right to modify technical specifications without prior notice. UK830532/200610 © Alpha-InnoTec GmbH... - Page 68 Lw 320H-a Circuit diagram 2/2 We reserve the right to modify technical specifications without prior notice. UK830532/200610 © Alpha-InnoTec GmbH...
- Page 69 We reserve the right to modify technical specifications without prior notice. UK830532/200610 © Alpha-InnoTec GmbH...
-
Page 70: Ec Declarations Of Conformity
In the event of modification of the device(s) without our approval, this declaration shall become invalid. designation of the deviCe(s) Heat pump unit model number unit model number LW 71A 100 410 LW 180A 100 448 LW 81A 100 411 LW 251A 100 449... -
Page 71: Ec Declaration Of Conformity
In the event of modification of the device(s) without our approval, this declaration shall become invalid. designation of the deviCe(s) Heat pump unit model number unit model number LW 71A 100 540 LW 101 100 530 LW 81A 100 541 LW 121 100 531... - Page 72 NEV (SR 743.26) Module DIN 8901 Designated position: TÜV-Südenglischland Bau und Betrieb (No.: 0036) Company: Place, date: Kasendorf, 09.12.2009 Signature: Jesper Stannow UK818136a Technical Director We reserve the right to modify technical specifications without prior notice. UK830532/200610 © Alpha-InnoTec GmbH...
-
Page 73: General Checklist
Sending the general checklist and the completion report also serves as a request for a technician authorized by the manufacturer to commission your heat pump. We reserve the right to modify technical specifications without prior notice. UK830532/200610 © Alpha-InnoTec GmbH... -
Page 75: Completion Report For Heat Pump Systems
Completion report for heat pump systems in de: Alpha-InnoTec customer service department 01803 003550 (0,09 €/min. aus dt. festnetz, mobilfunkpreise können abweichen) in AT: Alpha-InnoTec customer service department 0820 500644 (0,15 €/min. aus dem festnetz und mobilfunk) Completion report and request for faCtory Commissioning during factory commissioning, the system will be inspected to ensure that it is functioning properly. This ensures that all factory specifi cations have been checked and that the system can operate reliably over an extended period. - Page 76 We reserve the right to modify technical specifications without prior notice. UK830532/200610 © Alpha-InnoTec GmbH...
- Page 77 We reserve the right to modify technical specifications without prior notice. UK830532/200610 © Alpha-InnoTec GmbH...
-
Page 78: Customer Service
Alpha-InnoTec GmbH Industriestrasse 3 95359 Kasendorf Tel.: +49 (0) 1803 003530 * Suisse romande fax: +49 (0) 1803 003550 * Alpha-InnoTec Schweiz AG info@alpha-innotec.com ch. de la venoge 7 www.alpha-innotec.com 1025 St. Sulpice * 0,09 € aus dem dt. festnetz mobilfunkpreise können abweichen... - Page 79 Alpha-InnoTec france eURl NATHAN Import/export b.v. parc d‘activités economiques "les couturiers" Impact 73 16, rue des couturières 6921 Rz duiven 67240 bischwiller Tel.: +31 (0) 26 445 98 45 Tel.: +33 (0) 3 880 624 10 fax: +31 (0) 26 445 93 73 fax: +33 (0) 3 880 624 11 info@nathan.nl...
