Connection options
Compatible heat pumps air/water by
alpha innotec with unit HT 6Split / HT
12Split
Indoor HT 6Split / HT 12Split units can cooperate with
external units of Split type. Compatible heat pumps
LSplit include:
Symbol
L6Split
L8Split
L12Split
More information about LSplit to be found at
https://www.alpha-innotec.com/ and in relevant in-
stallation manuals for accessories used.
Chapter Accessories can serve to check the list of ac-
cessories to be used with HT 6Split / HT 12Split.
Connecting the heating system
Pipe connections of the heating system are to be
made at the top.
All the required protections and cut-off valves
•
must be installed as close to the HT 6Split / HT
12Split module as possible.
•
Where necessary, install the vents.
•
Safety valve with a nanometer at the central heat-
ing circuit and the safety valve at the hot water
system must be installed on relevant conductors
XL 11 and XL 4. In order to prevent air sockets,
the overflow pipe must be slanted at the entire
length from the safety valve, and must be se-
cured against freezing.
•
When connecting to the installation where all
heaters have been equipped with thermostat
valves, install a discharge valve or remove sever-
al thermostats to assure appropriate flow.
IMPORTANT
The term "heating system", as used in this installation
and operation manual, shall mean the heating or cool-
ing system supplied with a hot or cold medium from
the HT 6Split / HT 12Split module for heating or cool-
ing purposes.
CAUTION
Suitable safety valve must be installed directly on the
cold water supply line to the hot water tank. Safety
valve will protect against excessive increase of pres-
sure.
Chapter 4 |
14
Pipe connections
Application
HT 6Split
HT 12Split

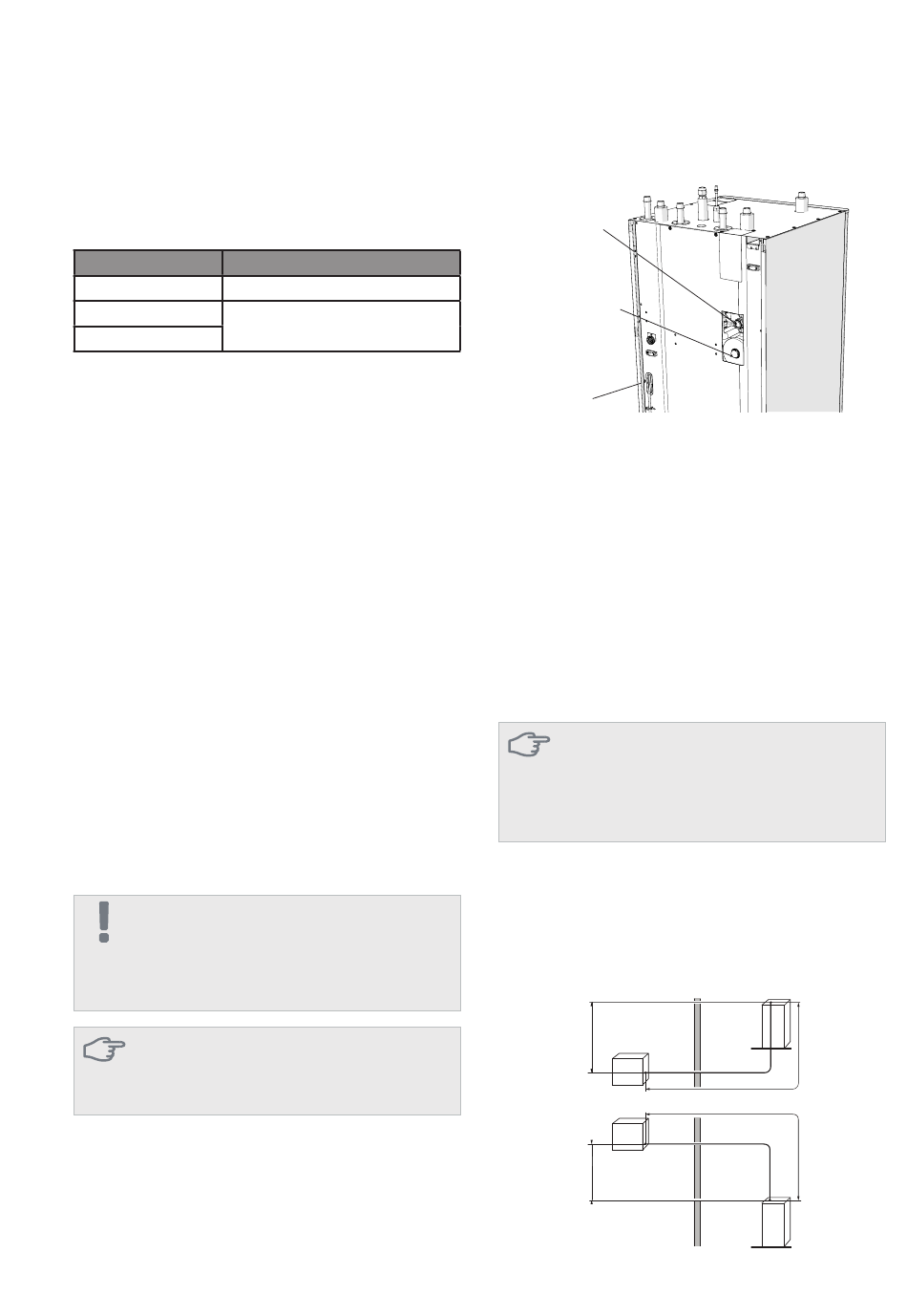

Connection of the external heat source
An external heat source, eg a gas or oil boiler, can be
connected to the back of the HT 6Split / HT 12Split,
removing the access block to the connection sockets
(picture below). Scheme on page 11.
Return to an
additional heat
source (XL 18)
Supply from
additional heat
source (XL 19)
Conden-
sate hose
Condensate elimination
The HT 6Split / HT 12Split module is equipped with a
condensate hose in the heat exchanger section. The
hose drains all condensate away from the device to
minimize the risk of damage. If necessary, the hose can
be extended.
Connecting refrigerant pipes
(not supplied)
Refrigerant pipes must be installed between the ex-
ternal module LSplit and HT 6Split / HT 12Split .
The installation must be executed according to the
applicable standards and directives.
CAUTION
The outdoor unit, factory-filled with refrigerant, enables
the use of refrigerant pipes (dimension L) between the
outdoor unit and the indoor unit measured with a length
of L = 15m. The maximum permissible length of the re-
frigerant pipes can be 30m, but this requires topping up
the installation with a refrigerant.
Limitations
•
Maximum pipe length, L6Split, L8Split, L12Split
is L=30 m.
Maximum height difference (H): ±7 m.
•
•
Connection of the outdoor unit to the indoor unit
must ensure free movement of the refrigerant.
H
AMS 10
LSplit
H
AMS 10
LSplit
HK 200S
HT 6Split / HT 12Split
L
L
HK 200S
HT 6Split / HT 12Split
HT 6Split
HT 12Split
