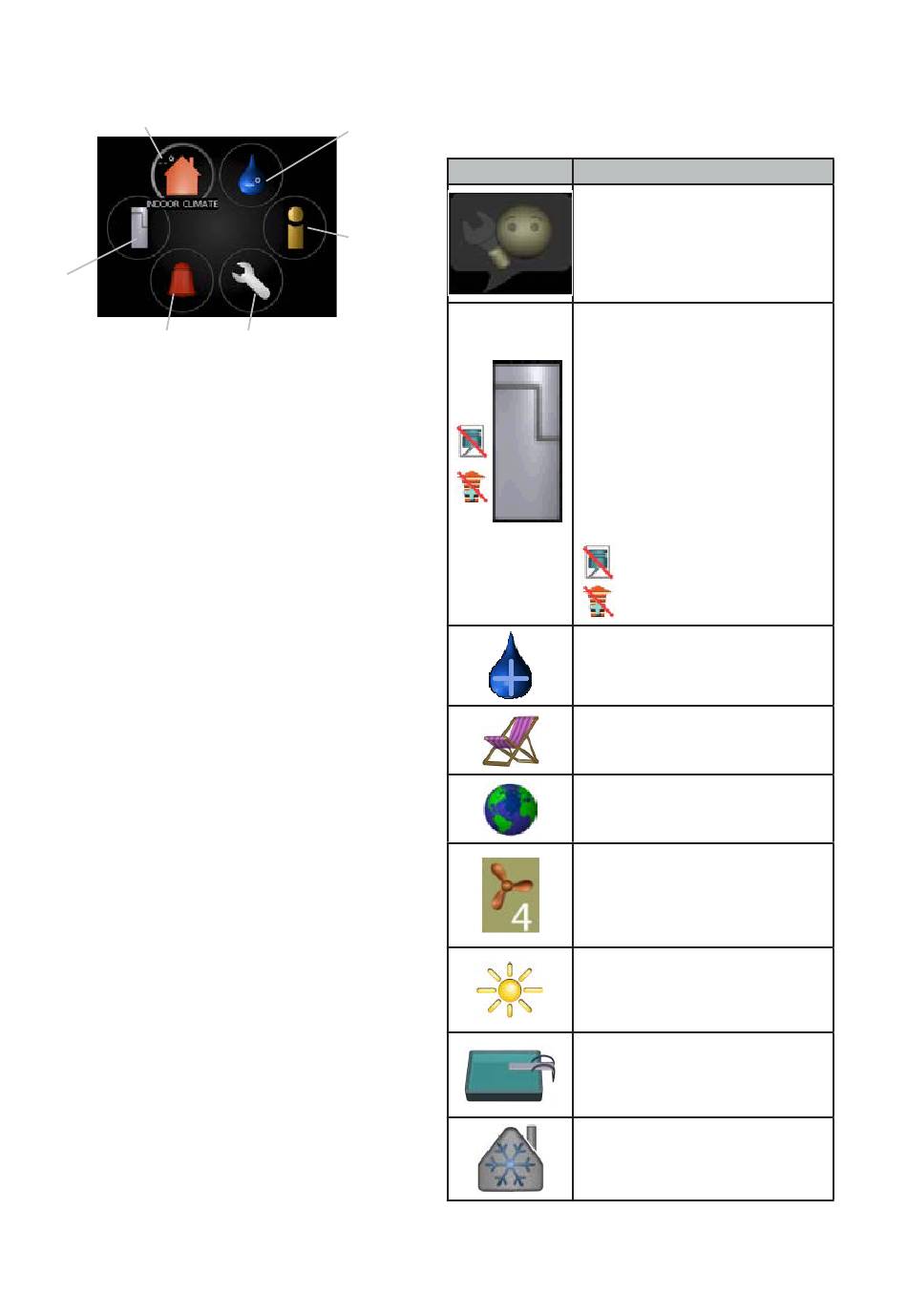

Menu system

Indoor
temperature
My system
Alarm
Menu 1 - INDOOR CLIMATE
Setting and scheduling the indoor climate. See infor-
mation in the help menu or user manual subsection
MENU 1.
Menu 2 - HOT WATER
Setting and scheduling hot water production. See in-
formation in the help menu or user manual subsec-
tion MENU 2.
Menu 3 - INFO
Display of temperature and other operating informa-
tion and access to the alarm log. See information in
the help menu or user manual subsection MENU 3.
Menu 4 - MY SYSTEM
Setting time, date, language, display, operating mode
etc. See information in the help menu or user manual
subsection MENU 4.
Menu 5 - SERVICE
Advanced settings. These settings are not available
to the end user. The menu is visible when the Back
button is pressed for 7 seconds, when you are in the
start menu. See information in the user manual sub-
section MENU 5.
HT 6Split
HT 12Split
Hot water
Information
Service
Symbols in the display
The following symbols can appear in the display dur-
ing operation.
Symbol
This symbol appears by the infor-
mation sign if there is information
in menu 3.1 that you should note.
These
whether the compressor in the
outdoor unit or additional heat in
the installation is blocked via con-
troller.
These can, for example, be
blocked depending on which op-
erating mode is selected in menu
4.2, if blocking is scheduled in
menu 4.9.5 or if an alarm has oc-
curred that blocks one of them.
This symbol appears if periodic
increase or lux mode for the hot
water is activated.
This symbol indicates whether
"holiday setting" is active in 4.7.
This symbol indicates whether the
controller has contact with MyUpway.
This symbol indicates the actu-
al fan speed if these revolutions
have been changed in relation to
the normal setting.
Required additional equipment.
This symbol indicates whether so-
lar heating is active.
Required additional equipment
PV Split.
This symbol indicates whether
pool heating is active.
Required additional equipment
IPP Split.
This symbol indicates whether
cooling is active.
Description
two symbols indicate
Blocking the compressor
Blocking additional heat
Chapter 8 |
| Control - Introduction 35
