85
Form Factor

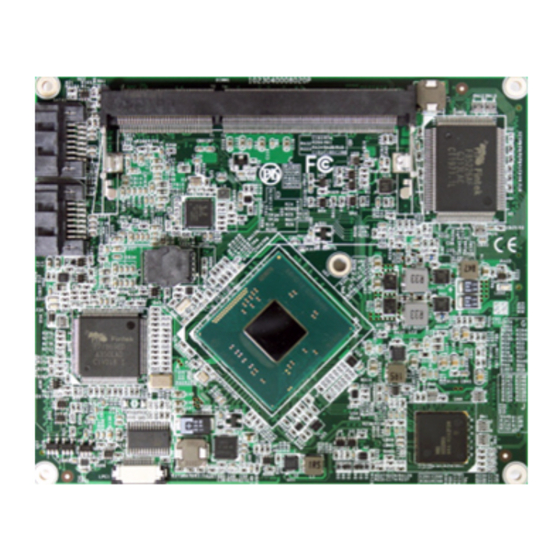

ETX ® CPU Module
LAN
Realtek RTL8106E
PCIe 10/100 Base-T
Ethernet Controller
&
Realtek ASIX AX88179
USB GbE Controller
♦ Technical Support
Technical Support
If you have any technical difficulties, please consult the user's manual first at:
If you have any technical difficulties, please consult the user's manual first at:
http://www.arbor-technology.com
ftp://ftp.arbor.com.tw/pub/manual
Please do not hesitate to e-mail our customer service when you still cannot find
Please do not hesitate to call or e-mail our customer service when you still can not
find out the answer.
out the answer.
http://www.arbor.com.tw
E-mail:info@arbor.com.tw
E-mail: info@arbor.com.tw
Declaration of Conformity
FCC Class A
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions : (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Copyright
2021 All Rights Reserved.
®
Em104P-i2313
CPU
Soldered onboard
Intel ® Atom™ E3800
Processor
Audio
Realtek ALC886 HD
CODEC, MIC-in/ Line-in/
Line-out
Wide Range Temperature
ETX-PC/104+ Complex
Quick Installation Guide
4041231300120P
- 1 -
Version 1.2
Video
Dual Channel 24-bit
LVDS, Analog RGB
and DDI supported
I/O
PC/104+/ USB/ IDE/
COM/ LPT/ FDD/ CF
II/ SATA
85
Advertisement
Table of Contents
Related Manuals for Arbor Technology ETX-PC/104+
Summary of Contents for Arbor Technology ETX-PC/104+
- Page 1 Em104P-i2313 Wide Range Temperature ETX-PC/104+ Complex Quick Installation Guide Version 1.2 Form Factor Video ETX ® CPU Module Soldered onboard Dual Channel 24-bit Intel ® Atom™ E3800 LVDS, Analog RGB Processor and DDI supported Audio Realtek RTL8106E Realtek ALC886 HD PC/104+/ USB/ IDE/ CODEC, MIC-in/ Line-in/ COM/ LPT/ FDD/ CF...
-
Page 2: Packing List
Packing List Before you begin installing your single board, please make sure that the following materials have been shipped: Em104P-i2313 PC/104 plus module kit: 1 x EmETX-i2304 ETX CPU Module ® 1 x PBE-1101 ETX Carrier Board ® 1 x Quick Installation Guide Ordering Information Wide Range Temperature EmETX-i2304 ETX ®... - Page 3 Driver (7.8A) Installation Windows 7 Driver Path \Audio\32bit_Win7_R273 AUDIO \Audio\64bit_Win7_R273 CHIPSET \Chipset\Win32_64_10.1.17 Ethernet \Ethernet\Install_Win7_7076_11222013 \Graphic\32bit_36.15.0.1073 Graphic \Graphic\64bit_37.15.0.1073 Processor IO \Processor IO \TXE Patch USB3.0 \USB3.0 Windows 10 Driver Path \Audio\Win32 AUDIO \Audio\Win64 GPIO I \GPIO I2C\windows10 32_64 \Graphic\Win32 Graphic \Graphic\Win64 \INF\Win32_64_10.1.17 \LAN\0023-Install_Win10_10025_03202018\Install_Win10_10025_03202018 \TXE\11.07...
-
Page 4: Specifications
Specifications Form Factor ETX-PC/104-Plus Complex CPU Module Intel® Atom™ Processor E3825 dual-core 1.33GHz or E3845 quad-core 1.91GHz 1 x 204-pin SO-DIMM socket up to 8GB DDR3L 1333MT/s System Memory SDRAM Graphic Chipset SoC integrated Intel® Gen 7 graphic 1 x Realtek RTL8106E 10/100 Base-T Ethernet from CPU module Ethernet 1 x ASIX AX88179 USB GbE from PBE-1101... -
Page 5: Board Dimensions
Board Dimensions 99.19 13.46 9.91 13.72 87.38 89.92 92.5 92.5 99.19 13.46 Unit: mm - 5 -... -
Page 6: Connectors Quick Reference
Connectors Quick Reference Em104P-i2313 DIO1 USB1 USB2 AUDIO1 VGA1 PC104+ FAN1 COMB JCFD1 COMA CFD1 JBLON1 JBAT1 LPT1 JWT1 JVLCD1 KBM1 JRS2 FAN2 LAN1 PWR1 LAN2 JCOM1 LANLED JFRT1 CONA1 IDE1 LVDS1 INV1 - 6 -... - Page 7 Em104P-i2313 SATA1 SO-DIMM SATA2 Unit:mm - 7 -...
- Page 8 Jumpers Jumpers JRS2: COM2 RS-232/422/485 Selection (23) It can be configured COM2 to operate in RS-232, JCFD1: CF IDE1 mode Selection (29) RS-422 or RS-485 mode. Connector type: 2.00mm pitch 1x2-pin headers. Connector type: 2.00mm pitch 2x3-pin headers. Mode RS-232 Mode RS-422 RS-485...
- Page 9 VGA1: Analog RGB Connector (5) Connectors Connectors Connector type: 2.00mm pitch 2x8-pin box headers. DIO1: Digital I/O Connector (1) Pin Description Pin Description GREEN DIO1 supports 8-bit In/ 8-bit Out. Connector type: 2.00mm pitch 2x10-pin headers BLUE Pin Description Pin Description 10 GND 12 VDDAT 13 HSYNC...
- Page 10 KBM1: Keyboard & Mouse Connector (9) PWR1: Power Supply Connector (12) Connector type: Terminal blocks. Connector type: 2.0mm pitch 1x6-pin box wafer connector. Description Description +12V KB_DATA MS_DATA KB_CLK KB_VCC MS_CLK FAN2: Fan Power Connector (10) FAN2 is a 3-pin headers for the fan. The fan must be JCOM1: RS-422/485 Connector (13) a +12V fan.
- Page 11 LVDS1: LVDS LCD Connector (15) IR1: Infrared Connector (17) Connector type: 2.54mm pitch 1x5-pin headers. The LVDS connector on board 30-pin headers and supports 18/36-bit Description Pin Desc. Pin Desc. IRRX TX2CLK+ 3 TX1CLK+ IRTX TX2CLK- 5 TX1CLK- IDE1: Primary IDE Connector (18) Connector type: 2.00mm pitch 2x22-pin box headers TX2D0+ 9 TX1D0+...
- Page 12 LANLED: LAN LED Indicators (20) Connector type: 2.54mm pitch 2x2-pin headers Pin Description -ACTLED -LILED LAN1~2: Ethernet Connectors (21, 22) Connector type: 2.00mm pitch 2x5-pin headers Desc. Desc. TX_MDI0+ TX_MDI0- RX_MDI1+ MDI2+ MDI2- RX_MDI1- MDI3+ MDI3- N/C (Key) CFD1 : Compact Flash Disk socket (share with IDE1) (28) FAN1: System Fan Power Connector (30) FAN1 is a 3-pin headers for the CPU fan.
