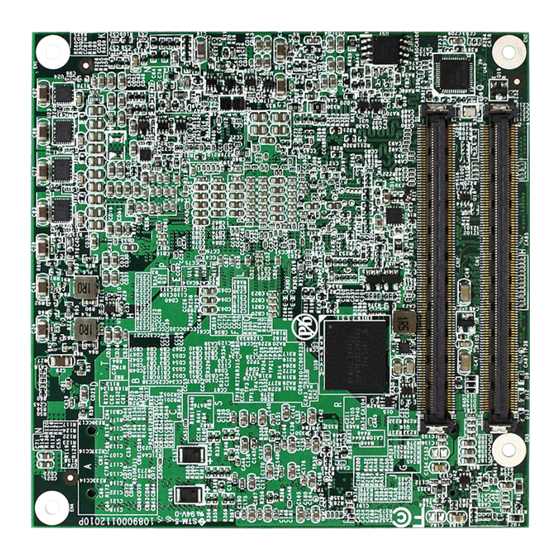

EmETXe-i89U0
85
Form Factor
COM Express
Compact
®
Type 6 CPU Module
LAN
Intel
i219LM PCIe GbE
®
PHY with iAMT
♦ Technical Support
If you have any technical difficulties, please consult the user's manual first on our
website.
http://www.arbor-technology.com
Please do not hesitate to call or e-mail our customer service when you still can not
find out the answer.
http://www.arbor-technology.com/
E-mail: info@arbor.com.tw
FCC Class A
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions : (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Copyright© 2016 All Rights Reserved.
COM Express
CPU
6
Generation Intel
th
Core™ i7-6600U/i5-6300U/
i3-6100U/Celeron
Audio
HD Audio Link
Compact Type 6 CPU Module
®
®
3955U
®
4041890000120P
- 1 -
Quick Installation Guide
Video
24-bit Dual Channels
LVDS/ DDI
I/O
USB 2.0/ USB 3.0/ SATA/
PCIe x1/ I2C/DIO/UART
Version 1.2
85
Advertisement
Table of Contents
Related Manuals for Arbor Technology EmETXe-i89U0
Summary of Contents for Arbor Technology EmETXe-i89U0
-
Page 1: Quick Installation Guide
EmETXe-i89U0 COM Express Compact Type 6 CPU Module ® Quick Installation Guide Version 1.2 Form Factor Video COM Express Compact Generation Intel 24-bit Dual Channels ® ® Type 6 CPU Module Core™ i7-6600U/i5-6300U/ LVDS/ DDI i3-6100U/Celeron 3955U ® Audio Intel i219LM PCIe GbE USB 2.0/ USB 3.0/ SATA/... -
Page 2: Packing List
Module Type 2, 3, 4, 5 and 6 support two connectors with four rows of pins (440 pins) Connector placement and most mounting holes have transparency between Form Factors. The differences among the Module Type 6 and EmETXe-i89U0 are summarized in table below: Module Type... -
Page 3: Specifications
Specifications System ® Soldered onboard 6 Generation Intel Core™ i7-6600U 2.6GHz (Base)/ 3.4GHz (Turbo), i5-6300U 2.3GHz (Base)/ 2.8GHz (Turbo), i3-6100U 2.3GHz (Base), ® Celeron 3955U 2.3GHz (Base) Memory 2 x DDR4 SO-DIMM sockets BIOS AMI UEFI BIOS Watchdog Timer 1~255 levels reset USB 2.0 8 x USB 2.0 ports USB 3.0... -
Page 4: Ordering Information
Ordering Information Generation Intel Core™ i7-6600U 2.6GHz (Base) / 3.4GHz (Turbo) ® EmETXe-i89U0-6600U COM Express Compact Type 6 WT CPU module (MOQ required) ® ® ® Generation Intel Core™ i5-6300U WT COM Express Compact EmETXe-i89U0-6300U Type 6 CPU module (Build to order, MOQ required) ®... -
Page 5: Board Dimensions
Board Dimensions DIMM1 DIMM2 Unit:mm - 5 -... -
Page 6: Connectors Quick Reference
Connectors Quick Reference Top Side Bottom Side COM Express AB Connector COM Express AB Connector COM Express CD Connector COM Express CD Connector - 6 -... -
Page 7: Com Express Ab Connector (Bottom Side)
COM Express AB Connector (bottom side) GND (FIXED) GND (FIXED) PCIE_RX4- PCIE_TX4- GBE0_ACT# GBE0_MDI3- GPO2 LPC_FRAME# GBE0_MDI3+ PCIE_RX3+ PCIE_TX3+ LPC_AD0 GBE0_LINK100# PCIE_RX3- PCIE_TX3- LPC_AD1 GBE0_LINK1000# LPC_AD2 GBE0_MDI2- PCIE_RX2+ PCIE_TX2+ LPC_AD3 GBE0_MDI2+ PCIE_RX2- PCIE_TX2- LPC_DRQ0# GPO3 GPI1 LPC_DRQ1# GBE0_MDI1- PCIE_RX1+ PCIE_TX1+ LPC_CLK GBE0_MDI1+ PCIE_RX1-... -
Page 8: Com Express Cd Connector (Bottom Side)
COM Express CD Connector (bottom side) GND (FIXED) GND (FIXED) TYPE2# USB_SSTX0- USB_SSRX0- USB_SSTX0+ USB_SSRX0+ GND (FIXED) GND (FIXED) USB_SSTX1- USB_SSRX1- USB_SSTX1+ USB_SSRX1+ USB_SSTX2- USB_SSRX2- USB_SSRX2+ USB_SSTX2+ GND (FIXED) GND (FIXED) USB_SSRX3- USB_SSTX3- USB_SSTX3+ USB_SSRX3+ DDI1_CTRLCLK_AUX+ GND (FIXED) GND (FIXED) DDI1_CTRLCLK_AUX- RSVD RSVD...
