User Manual
Form Factor
PC/104-Plus
CPU Module
Video
Analog RGB/ Single
Channel 18-bit LVDS
♦ Technical Support
If you have any technical difficulties, please consult the user's manual first at:
ftp://ftp.arbor.com.tw/pub/manual
Please do not hesitate to call or e-mail our customer service when you still can not
find out the answer.
http://www.arbor.com.tw
E-mail: info@arbor.com.tw
FCC Class A
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions : (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Copyright
2012 All Rights Reserved.
®

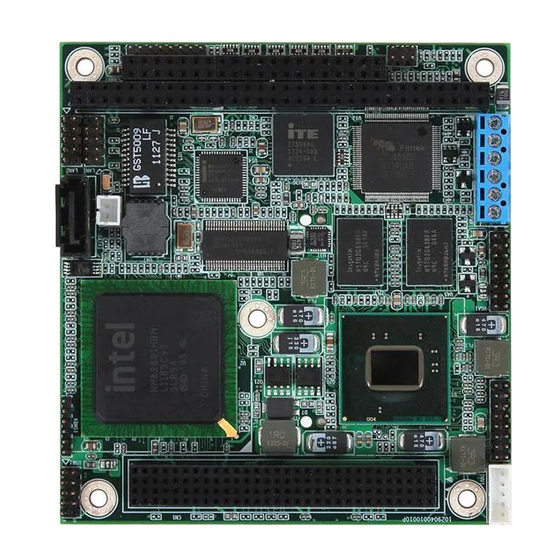

Em104P-i2904
PC/104-Plus CPU Module
CPU
Intel® Atom™ N455
Processor
LAN
2 x Intel® 82583V
PCIe Gigabit Ethernet
Quick Installation Guide
- 1 -
Version 1.0
Chipset
Intel® ICH8M
I/O
PC104-Plus / USB /
SATA / COM
4041290400100P
Advertisement
Table of Contents
Related Manuals for Arbor Technology Em104P-i2904
Summary of Contents for Arbor Technology Em104P-i2904
-
Page 1: Quick Installation Guide
Em104P-i2904 PC/104-Plus CPU Module Quick Installation Guide Version 1.0 Form Factor Chipset PC/104-Plus Intel® Atom™ N455 Intel® ICH8M CPU Module Processor Video Analog RGB/ Single 2 x Intel® 82583V PC104-Plus / USB / Channel 18-bit LVDS PCIe Gigabit Ethernet SATA / COM ♦... -
Page 2: Packing List
Packing List Before you begin installing your single board, please make sure that the following materials have been shipped: 1 x Em104P-i2904-N4 1 x Driver CD 1 x Quick Installation Guide If any of the above items is damaged or missing, contact your vendor immediately. -
Page 3: Specifications
Specifications Form Factor PC/104-Plus CPU module Soldered onboard Intel® Atom™ N455 1.6GHz Processor processor Chipset Intel® ICH8M BIOS AMI PnP Flash BIOS System Memory Soldered onboard DDR3 1GB SDRAM Integrated Intel® Graphics Media Accelerator 3150 VGA/ LCD Controller Analog RGB support resolution up to 2048 x 1536 LCD: Single channel 18-bit LVDS Ethernet 2 x Intel®... -
Page 4: The Installation Paths Of Cd Driver
The Installation Paths of CD Driver Windows XP Driver Path CHIPSET \Em104P-i2904\CHIPSET\INF9.2.0.1009 \Em104P-i2904\GRAPHICS\WIN_XP_GMA3150 \Em104P-i2904\ETHERNET\WIN_allos_Ver16.3 \Em104P-i2904\ISA\ITE8888 Windows 7 Driver Path CHIPSET \Em104P-i2904\CHIPSET\INF9.2.0.1009 \Em104P-i2904\GRAPHICS\WIN_7_GMA3150_32 \Em104P-i2904\GRAPHICS\WIN_7_GMA3150_64 \Em104P-i2904\ETHERNET\WIN_allos_Ver16.3 \Em104P-i2904\ISA\ITE8888 Board Dimensions 82.55 50.72 21.6 8.89 5.08 85.09 Ø Unit: mm - 4 -... -
Page 5: Connectors Quick Reference
Connectors Quick Reference Connectors Label Function PC/104 Connector PCI/104 Connector USB1 USB 0, 1 Connector SATA1 SATA VGA1 Analog RGB Display Connector KBMS1 PS/2 interface Keyboard and Mouse Connector JRS1 COM1,COM2 FPT1 Reset/Power LED/HDD LED/Speaker INV1 Inverter Power Output PWR1 12V/5V Power Input LVDS1 LVDS LCD Panel Connector... - Page 6 Connectors Location USB1 CN1 (PC/104) CN3 (PCI/104) INV1 KBMS1 LVDS1 VGA1 SATA1 PWR1 LAN1 LAN2 JRS1 FPT1 - 6 -...
- Page 7 Connectors FPT1: Reset/Power LED/HDD LED/Speaker CN1: PC/104 Interface (1) Connector (8) CN3: PCI/104 Interface (2) Connector type: 2.00mm pitch 1x8-pin header Description USB1: USB Connector (3) RESET Connector type: 2.00mm pitch 2x5-pin header Desc. Desc. PWR LED+ +5V- USBP0- USBP1- HDD LED+ USBP0+ USBP1+...
-
Page 8: Pin Description
LVDS1: LVDS LCD Panel Connector (12) Supports single channel 18-bit LVDS Pin Description Pin Description 1 LCD_POWER 2 LCD_POWER 3 GND 4 GND 5 DATA0- 6 DATA0+ 7 DATA1- 8 DATA1+ 9 DATA2- 10 DATA2+ 11 GND 12 GND 13 CLK- 14 CLK+ 15 LDDC_CLK 16 LDDC_DATA...
