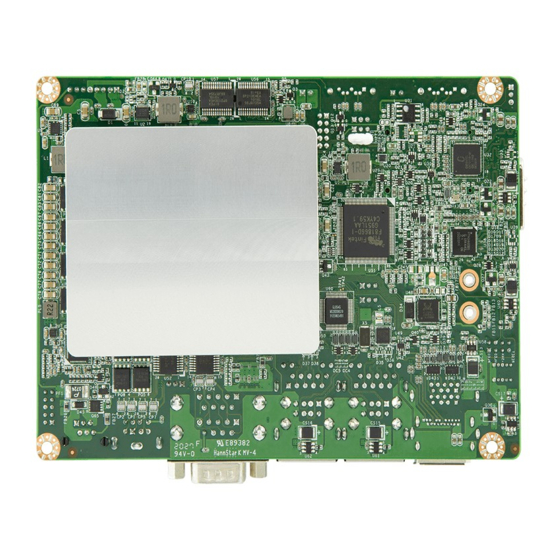

EmCORE-a10R2
Form Factor
3.5" Compact Board
Video
Dual Channels 24-bit
DisplayPort
♦ Technical Support
If you have any technical difficulties, please consult the user's manual first at:
http://arbor-technology.com/
Please do not hesitate to call or e-mail our customer service when you still can not
find out the answer.
http://arbor-technology.com/
E-mail: info@arbor.com.tw
FCC Class A
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions : (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Copyright
All Rights Reserved.
®
CPU
Soldered onboard AMD
R1102G APU Processor
LAN
2 x Realtek RTL8111
PCIe Gigabit Ethernet
- 1 -
3.5" Compact Board
Quick Installation Guide
Audio
Realtek ALC269 2.1
Channel HD Audio Codec,
Mic-in/ Line-in/ Line-out
I/O
SATA/ USB/ COM/ Mini-
card/ DIO/ Micro SIM
4042100200100P
Version 1.0
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Arbor Technology EmCORE-a10R2
Summary of Contents for Arbor Technology EmCORE-a10R2
- Page 1 EmCORE-a10R2 3.5" Compact Board Quick Installation Guide Version 1.0 Form Factor Audio 3.5" Compact Board Soldered onboard AMD Realtek ALC269 2.1 R1102G APU Processor Channel HD Audio Codec, Mic-in/ Line-in/ Line-out Video Dual Channels 24-bit 2 x Realtek RTL8111 SATA/ USB/ COM/ Mini-...
-
Page 2: Packing List
AMD Ryzen R1000 R1102G Compact Board 1 x Quick Installation Guide If any of the above items is damaged or missing, contact your vendor immediately. Ordering Information EmCORE-a10R2-1102G AMD Ryzen R1000 R1102G compact board Cable kit 2 x USB 2.0 cables (1 port/ cable) CBK-08-10R2-00... -
Page 3: Board Dimensions
Board Dimensions 142.8 142.8 - 3 -... -
Page 4: Specifications
Specifications Form Factor 3.5" Compact Board Soldered onboard AMD Ryzen R1102G 1.2GHz (Base)/ 2.6GHz (Turbo) Processor 1 x DDR4 SO-DIMM socket, Memory supporting 2400MHz SDRAM up to 16GB BIOS AMI UEFI BIOS Watchdog Timer 1~255 levels reset Super I/O Fintek F81866 2 x USB 3.0/2.0 ports USB Port 6 x USB 2.0 ports... - Page 5 Jumpers and Connectors Location on Top side (10)USB3 (12)JPWRSW1 (14)LVDS2 (15)LVDS1 (11)JFRT1 (9)USB2 JPWR1 (8)SPK1 (13)AUDIO1 (16)SATA1 (26)MC2 (7)DP1 (27)SIM1 USB1 (25)MC1 (17)SATAPWR1 (6)LAN1 JINV2 JINV1 (18)SATA2 (28)BAT1 (29)JLPC1 (19)SATAPWR2 (5)LAN2 (20)COM5 (30)DIMM1 (4)COM2 (21)COM6 (22)FAN1 (3)COM4...
-
Page 6: Jumpers & Connectors Quick Reference
Jumpers & Connectors Quick Reference Jumpers Jumper Description ➊ AT/ATX Power Mode Selection JPWR1 ➋➌ LVDS1, 2 LCD Voltage Selection JVLCD1, 2 ➍ CMOS Setting JBAT1 ➎➏ LVDS1, 2 LCD Inverter Voltage Selection JINV1, 2 Connectors Connector Description (1)CN1 DREWR Connector (2)COM1 RS-232 Serial Port Connector (3)COM4... - Page 7 Jumpers Jumpers Connectors Connectors ➊ (1)CN1: DREWR Connecter JPWR1: AT/ATX Power Mode Selection Connector type: 2.00mm pitch 1x3 pin header Connector type: RJ-11 Connector Power Mode Selection Pin Description FRAME GND ATX Mode (Default) DRWER1 SW_IN AT Mode DRWER2 ➋➌ JVLCD1, 2: LVDS1, 2 LCD Voltage Selection (2)COM1: RS-232 Serial Port Connector...
- Page 8 (4)COM2: RS-232 Serial Port Connector (11)JFRT1: Switches and Indicators Connector type: 2.00mm pitch 2x4 pin wafer connector Connector type: External 9-pin D-sub male connector. Desc. Desc. Desc. Desc. POWER_ POWER_ LED- LED+ HDD_LED- HDD_LED+ 12V_- 12V_+ RESET- RESET+ (5)(6)LAN2, 1: RJ-45 LAN and USB 2.0 (12)JPWRSW1: Power Switches and LED Stack Connectors Connector type: 1.25mm pitch 1x4 pin wafer connector...
- Page 9 (14)(15) LVDS2, 1: LVDS Connector (16)(18)SATA1, 2: SATA Connector Channel 0, 1 Connector type: 1.25mm pitch 2x20 pin connector, supporting 24-bit dual channels Connector type: SATA Connector Pin Description Pin Description The pin assignments conform to the industry standard. LCD_ LCD_ VDD(+3.3V/+5V) VDD(+3.3V/+5V)
- Page 10 (23)PWRIN1: DC +12V Power Input (28)BAT1: Battery Connector Connector Connector type: 1.25mm pitch 1x2-pin connector. Connector type: 2.5mm pitch 1x8 pin header Description Pin Description RTCBAT VIN: 8V~13.2V VIN: 8V~13.2V (29)JLPC1: LPC to 80 Port Debug Card Connector +5V LED Connector type: 1.25mm pitch 2x5 pin header COM1 DSR Pin Desc.
