- Page 1 EmETXe-i90M3 COM Express Basic ® Type 6 CPU Module User’s Manual Version 1.0 2019.07...
- Page 2 Revision History Version Date Description 2019.07 Initial release...
-
Page 3: Table Of Contents
Contents Preface Copyright Notice ..............iii Declaration of Conformity ..........iii CE ..................iii FCC Class B .................iii RoHS ..................iv SVHC / REACH ..............iv Warning ................v Replacing the Lithium Battery ...........v Technical Support ..............v Warranty ................vi Chapter 1 - Introduction 1.1 The Product ..............2 1.2 About This Manual............2 1.3 Specifications ..............3 1.4 Inside the Package ............4... - Page 4 Content 4.1 Main ................20 4.2 Advanced..............22 4.2.1 CPU Configuration ...........23 4.2.2 PCI Subsystem Settings ..........24 4.2.3 ACPI Settings ............25 4.2.4 USB Configuration ...........26 4.2.5 Hardware Monitor .............28 4.2.6 Super IO Configuration ..........29 4.2.7 S5 RTC Wake Settings ..........31 4.2.8 CSM Configuration ...........32 4.2.9 NVMe Configuration ..........33 4.3 Chipset ...............34 4.3.1 Graphics Configuration ...........36...
-
Page 5: Preface
Preface Copyright Notice All Rights Reserved. The information in this document is subject to change without prior notice in order to improve the reliability, design and function. It does not represent a commitment on the part of the manufacturer. Under no circumstances will the manufacturer be liable for any direct, indirect, special, incidental, or consequential damages arising from the use or inability to use the product or documentation, even if advised of the possibility of such damages. -
Page 6: Rohs
RoHS ARBOR Technology Corp. certifies that all components in its products are in compliance and conform to the European Union’s Restriction of Use of Haz- ardous Substances in Electrical and Electronic Equipment (RoHS) Directive 2002/95/EC. -
Page 7: Warning
Preface Warning Single Board Computers and their components contain very delicate Integrated Circuits (IC). To protect the Single Board Computer and its components against damage from static electricity, you should always follow the following precautions when handling it : 1. Disconnect your Single Board Computer from the power source when you want to work on the inside. -
Page 8: Warranty
Preface Warranty This product is warranted to be in good working order for a period of two years from the date of purchase. Should this product fail to be in good working order at any time during this period, we will, at our option, replace or repair it at no additional charge except as set forth in the following terms. -
Page 9: Chapter 1 Introduction
Introduction Chapter 1 Introduction - 1 -... -
Page 10: The Product

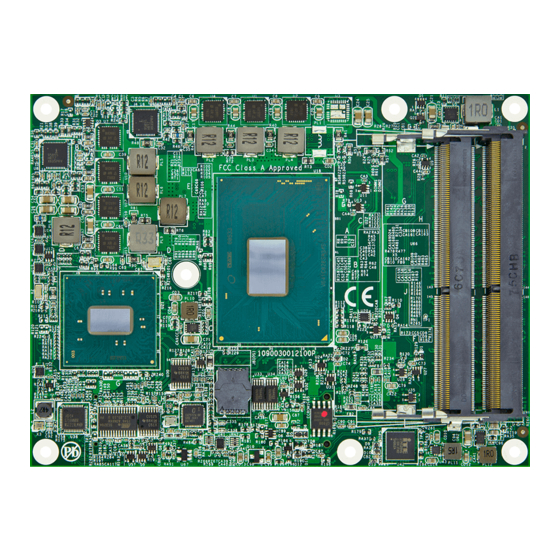

Introduction 1.1 The Product The EmETXe-i90M3 is a space-conscious CPU board of 125 mm x 95 mm to take up only small footprint in your system. By the architecture of Type 6, the board has two high-performance connectors to promise stable data passing rate. -
Page 11: Specifications
Introduction 1.3 Specifications System Soldered onboard 7 Generation Intel ® Core™ i7- 7820EQ 2.8GHz/i5-7442EQ 2.7GHz/Xeon E3- 1505L v6 3.0GHz Chipset Intel QM175 PCH/CM238 Memory 2 x DDR4 SO-DIMM sockets BIOS AMI UEFI BIOS Watchdog Timer 1~255 levels reset 12 x USB ports: USB Port - 8 x USB 2.0 ports - 4 x USB 3.0 ports... -
Page 12: Inside The Package
Before you begin installing your single board, please make sure that the following materials have been shipped: 1 x EmETXe-i90M3 COM Express CPU Module 1 x Quick Installation Guide If any of the above items is damaged or missing, contact your vendor immediately. -
Page 13: Optional Accessories
Introduction 1.5.1 Optional Accessories HS-90M0-C1 Heat sink with Fan (125x95x35mm) PBE-1705-F1 COM Express® Type 6 evaluation carrier board with SIO F71869ED module in ATX form factor CBK-03-1705-00 Cable kit 1 x SATA cable 2 x COM Flat cables 1.6 Driver(6.8A) Installation The CPU module supports Windows 10. - Page 14 This page is intentionally left blank. - 6 -...
-
Page 15: Chapter 2 - Board Overview
Board Overview Chapter 2 Board Overview - 7 -... -
Page 16: What Is "Com Express
Module Type 1 and 10 support single connector with two rows (220 pins). Module Type 2, 3, 4, 5 and 6 support two connectors with four rows (440 pins). EmETXe-i90M3 is a Type-6 module. Difference between Standard Type 6 and EmETXe-i90M3 is listed as below: Module Type Standard Type 6... -
Page 17: Board Dimensions
Board Overview 2.2 Board Dimensions The following illustration shows the dimension of EmETXe-i90M3, with the mea- surements in width, depth, and height called out. 105.00 64.24 2.7x Ø Ø Unit:mm - 9 -... -
Page 18: Block Diagram
Board Overview 2.3 Block Diagram DDR4 1687/ 2133 MHz 2 x SO-DIMM DDR4 1 x PCIex16 (Gen3) (Non-ECC/ ECC co-layout) sockets Configurable as 1 x PCIex8, 2 x PCIex4, 2 x PCIex8 7th Generation Intel® Core i7-7820EQ/ Dual Chnnels PTN3460 DDI portC eDP to LVDS 24-bit LVDS... -
Page 19: Connector Pin Definition
Board Overview 2.4 Connector Pin Definition Being a most commonly-used Type 6, the EmETXe-i90M3 features two board- to-board connectors on bottom side. Top Side SO-DIMM Sockets Bottom Side COM Express AB Connector COM Express CD Connector - 11 -... - Page 20 Board Overview COM Express AB Connector (bottom side) GND (FIXED) GND (FIXED) PCIE_RX9- PCIE_TX9- GBE0_ACT# GBE0_MDI3- DIO_6 LPC_FRAME# GBE0_MDI3+ PCIE_RX4+ PCIE_TX4+ LPC_AD0 GBE0_LINK100# PCIE_RX4- PCIE_TX4- GBE0_LINK1000# LPC_AD1 LPC_AD2 GBE0_MDI2- PCIE_RX3+ PCIE_TX3+ LPC_AD3 GBE0_MDI2+ PCIE_RX3- PCIE_TX3- GBE0_LINK# DIO_1 LPC_DRQ0# DIO_7 LPC_DRQ1# GBE0_MDI1- PCIE_RX2+ PCIE_TX2+...
- Page 21 Board Overview COM Express CD Connector (bottom side) GND (FIXED) GND (FIXED) PEG_TX1- PEG_RX1- TYPE2# USB3_RX1- PEG_RX2+ USB3_TX1- PEG_TX2+ USB3_TX1+ USB3_RX1+ PEG_TX2- PEG_RX2- GND (FIXED) GND (FIXED) USB3_RX2- PEG_RX3+ USB3_TX2- PEG_TX3+ USB3_TX2+ USB3_RX2+ PEG_TX3- PEG_RX3- USB3_RX3- USB3_TX3- USB3_TX3+ USB3_RX3+ PEG_TX4+ PEG_RX4+ GND (FIXED) GND (FIXED)
- Page 22 This page is intentionally left blank. - 14 -...
-
Page 23: Chapter 3 - Installation & Maintenance
Installation & Maintenance Chapter 3 Installation & Maintenance - 15 -... -
Page 24: Installing The Cpu Module To Carrier Board
Installation & Maintenance 3.1 Installing the CPU Module to Carrier Board 1. Find the heat sink included in optional accessories. (See section 1.5.1 Optional Accessories on page 5) Apply thermal grease to be in contact with CPU and chipset on CPU module. 2. - Page 25 3. Find the COM Express connectors on carrier board PBE-1705, which is available in Section 1.5.1 Optional Accessories on page 4. Mount the EmETXe-i90M3 into PBE-1705 via COM Express connectors as below; that is, COM Express AB to AB and CD to CD. CD connector AB connector 5.
- Page 26 This page is intentionally left blank. - 18 -...
-
Page 27: Chapter 4 - Bios
BIOS Chapter 4 BIOS - 19 -... -
Page 28: Main
Aptio Setup Utility - Copyright (C) 2019 American Megatrends, Inc. Advanced Chipset Security Boot Save & Exit Main Set the Date. Use Tab BIOSName EmETXe-i90M3 to Switch between Date BIOS Version 1.00 elements. Build Date and Time 01/11/2019 10:35:34 EC Version STD 1.12... - Page 29 BIOS Set the system time. Use Tab to switch between Time elements. System Time The time format is: Hour: 00 to 23 ► Minute: 00 to 59 Second: 00 to 59 Key Commands BIOS Setup Utility is mainly a key-based navigation interface. Please refer to the following key command instructions for navigation process.
-
Page 30: Advanced
BIOS 4.2 Advanced Aptio Setup Utility - Copyright (C) 2019 American Megatrends, Inc. Main Chipset Security Save & Exit Boot Advanced CPU Configuration PCIE Slot1 Strap [x16] Parameters ► CPU Configuration ► PCI Subsystem Settings ► ACPI Settings ► USB Configuration ►... -
Page 31: Cpu Configuration
BIOS 4.2.1 CPU Configuration Aptio Setup Utility - Copyright (C) 2019 American Megatrends, Inc. Advanced CPU Configuration Enabled for Windows XP Type Intel(R) Core(TM) and Linux (OS i5-7442EQ CPU @ 2.10GHz optimized for Hyper- 0x806E9 Threading Technology) 2700 MHz Speed and Disabled for other OS (OS not optimized 32 KB x 4... -
Page 32: Pci Subsystem Settings
BIOS 4.2.2 PCI Subsystem Settings Aptio Setup Utility - Copyright (C) 2019 American Megatrends, Inc. Advanced PCI Bus Driver Version A5.01.11 Value to be programmed into PCI Latency Timer Regiser. PCI Device Common Setttings: PCI Latency Timer [32 PCI Bus Clocks] PCI-X Latency Timer [64 PCI Bus Clocks] Above 4G Decoding... -
Page 33: Acpi Settings
BIOS 4.2.3 ACPI Settings Aptio Setup Utility - Copyright (C) 2019 American Megatrends, Inc. Advanced ACPI Settings Enables or Disables System ability to Enable Hibernation Hibernate (OS/S4 Sleep [Enabled] ACPI Sleep State State). This option [S3 (Suspend to RAM)] may be not effective with some OS. -
Page 34: Usb Configuration
BIOS 4.2.4 USB Configuration Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc. Aptio Setup Utility - Copyright (C) 2019 American Megatrends, Inc. Advanced USB Configuration Enables Legacy USB support. AUTO option disables legacy USB Module Version support if no USB devices are connected. - Page 35 BIOS Enables/Disables (default) I/O port 60h/64h emulation support. This should be enabled for the complete USB keyboard legacy support. USB keyboard legacy support for non-USB aware Port 60/64 Emulation OSes. Options: Enabled and Disabled (default). ► USB hardware delay and time-out Use this item to set the time-out value for control, bulk, and interrupt transfers.
-
Page 36: Hardware Monitor
BIOS 4.2.5 Hardware Monitor Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc. Aptio Setup Utility - Copyright (C) 2019 American Megatrends, Inc. Advanced Pc Health Status CPU Tempreture : +37 Fan1 Speed : N/A VCORE : +0.858 V VCCDU : +1.189 V : +11.942 V... -
Page 37: Super Io Configuration
BIOS 4.2.6 Super IO Configuration Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc. Aptio Setup Utility - Copyright (C) 2019 American Megatrends, Inc. Advanced Super IO Configuration Set Parameters of Serial Port 1 (CON1) Super IO Chip IT8528 ►... - Page 38 BIOS Serial Port 1/2/3/4 Configuration Setting Description Serial Port Enable (default) or Disable Serial Port (COM). Select an optimal setting for Super IO device. Options for Serial Port 1: ► Auto; IO=3F8h; IRQ=4 (default) ; IO=3F8h; IRQ=3, 4, 7, 12; IO=2F8h;...
-
Page 39: S5 Rtc Wake Settings
BIOS Parallel Port Configuration Setting Description Enable (default) or Disable Parallel Port (LPT/LPTE). Parallel Port Select an optimal setting for Super IO device. Options: ► Auto IO=378h; IRQ=7 (default) Change Settings IO=378h; IRQ=7, 10, 11, 12 IO=278h; IRQ=7, 10, 11, 12 IO=3BCh;... -
Page 40: Csm Configuration
BIOS 4.2.8 CSM Configuration Aptio Setup Utility - Copyright (C) 2019 American Megatrends, Inc. Advanced Compatibility Support Module Configuration Enable/Disable CSM Support. CSM Support [Enabled] CSM16 Module Version 07.80 Boot option filter [UEFI and Legacy] Option ROM execution →←: Select Screen [Do not launch] Network ↓↑: Select Item... -
Page 41: Nvme Configuration
BIOS 4.2.9 NVMe Configuration Aptio Setup Utility - Copyright (C) 2019 American Megatrends, Inc. Advanced NVMe controller and Drive Inforamtion No NVME Device Found →←: Select Screen ↓↑: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F9: Optimized Defaults F10: Save and Exit ESC: Exit... -
Page 42: Chipset
BIOS 4.3 Chipset Aptio Setup Utility - Copyright (C) 2019 American Megatrends, Inc. Main Advanced Boot Security Save & Exit Chipset Display Control System Agent (SA) Configuration ► LCD Control ► Memory Configuration ► Graphics Configuration ► PEG Port ConfigurationD PCH-IO Configuration ►... - Page 43 BIOS See section 4.3.1 Graphics Configuration on Graphic Configuration page 36 PEG Port Configuration Enable or Disable (default) the Root Port. Enable Root Port Options: Auto (default), Disabled and ► Enabled. Configures PEG 0:1: 0 Max Speed. Max Link Speed Options: Auto (default), Gen 1, Gen 2 ►...
-
Page 44: Graphics Configuration
BIOS 4.3.1 Graphics Configuration Setting Description If enabled, it will not scan for External Gfx Card on Skip Scaning of PEG and PCH PCIE Ports. External Gfx Card Options: Disabled (default) and Enabled. ► External Gfx Card Primary Display Configuration Select which of IGFX/PEG/PCI graphics device should Primary PEG be Primay Display or select SG for Switchable Gfx. -
Page 45: Pci Express Configuration
BIOS 4.3.2 PCI Express Configuration Setting Description PCIE1/2/3 & Enable (default) or disable PCIE1/2/3 and MC1/2. MC1/2 Disable or set the ASPM level. Force L0s will force all inks to L0s state. “Auto” will allow BIOS to auto ASPM Support configure.”Disable”... -
Page 46: Security
BIOS 4.4 Security The Security menu sets up the administrator password. Aptio Setup Utility - Copyright (C) 2019 American Megatrends, Inc. Boot Main Advanced Chipset Save & Exit Security Set Administrator Password Description Password Minimum length Maximum length Administrator Password →←: Select Screen ↓↑: Select Item Enter: Select... -
Page 47: Boot
BIOS 4.5 Boot Aptio Setup Utility - Copyright (C) 2019 American Megatrends, Inc. Boot Main Advanced Chipset Security Save & Exit Select the keyboard Boot Configuration NumLock state Bootup NumLock State [On] Fast Boot [Disabled] Quiet Boot [Disabled] Boot Option Priorities →←: Select Screen ↓↑: Select Item Enter: Select... -
Page 48: Save & Exit
BIOS 4.6 Save & Exit Aptio Setup Utility - Copyright (C) 2019 American Megatrends, Inc. Main Advanced Chipset Security Boot Save & Exit Exit system setup Save Options after saving the Save Changes and Exit changes. Discard Changes and Exit Default Options Restore Defaults Lauch EFI Shell from filesystem device... - Page 49 This page is intentionally left blank. - 41 -...
-
Page 50: Appendix
Appendix Appendix - 42 -... -
Page 51: Appendix A: I/O Port Address Map
Appendix Appendix A: I/O Port Address Map Each peripheral device in the system is assigned a set of I/O port addresses which also becomes the identity of the device. The following table lists the I/O port addresses used. Address Device Description 03F8-03FF Communications Port (COM1) 02F8-02FF... -
Page 52: Appendix B: Bios Memory Mapping
Appendix Appendix B: BIOS Memory Mapping Address Device Description 0xDF000000-0xDF01FFFF Ethernet Controller 0xDF040000-0xDF043FFF High Definition Audio Controller 0xDF020000-0xDF02FFFF High Definition Audio Controller 0xFED00000-0xFED003FF High Precision Event Timer 0xFF000000-0xFFFFFFFF Intel(R) 82802 Firmware Hub Device Intel(R) USB 3.0 eXtensible Host Controller 0xDF030000-0xDF03FFFF - 0100 (Microsoft) 0xA0000-0xBFFFF Microsoft Basic Display Adapter... - Page 53 Appendix 0xFE036000-0xFE03BFFF Motherboard resources 0xFE03D000-0xFE3FFFFF Motherboard resources 0xFE410000-0xFE7FFFFF Motherboard resources PCI Data Acquisition and Signal Processing 0xDF051000-0xDF051FFF Controller 0xFD000000-0xFDABFFFF PCI Express Root Complex 0x90000000-0xDFFFFFFF PCI Express Root Complex 0xDF044000-0xDF047FFF PCI Memory Controller SDA Standard Compliant SD Host Control- 0xDF04B000-0xDF04BFFF 0xDF04A000-0xDF04A0FF SM Bus Controller 0xDF048000-0xDF049FFF Standard SATA AHCI Controller...
-
Page 54: Appendix C: Interrupt Request Lines (Irq)
Appendix Appendix C: Interrupt Request Lines (IRQ) Peripheral devices use interrupt request lines to notify CPU for the service required. The following table shows the IRQ used by the devices on board. Level Function IRQ0 System timer IRQ1 PS/2 Keyboard IRQ3 Communications Port (COM2) IRQ4... -
Page 55: Appendix D: Watchdog Timer (Wdt) Setting
Appendix Appendix D: Watchdog Timer (WDT) Setting WDT is widely used for industry application to monitor the activity of CPU. Ap- plication software depends on its requirement to trigger WDT with adequate timer setting. Before WDT time out, the functional normal system will reload the WDT. - Page 56 Appendix outportb(0x66,0xBA); /* Enable Watch Dog */ delay(1000); outportb(0x62, WDTCount); /* Number is Watch Dog Down count number */ delay(1000); outportb(0x62, 0x00); /* Minute is 1 count unit by minute */ /* Minute is 0 count unit by second */ - 48 -...
-
Page 57: Appendix E: Dio Sample Code
Appendix Appendix E: DIO Sample Code #include “math.h” #include “stdio.h” #include “dos.h” int SMB_PORT_AD = 0xF040; int SMB_DEVICE_ADD = 0x42; void GPIOMode(int iMode); void GPIOData(int iData); GPIOStatus(); int main(void) int iInput; GPIOMode(0xF); delay(2000); GPIOData(0x0A); delay(2000); iInput = GPIOStatus(); printf(“ Data : %2x \n”,iInput); GPIOData(0x05);...
