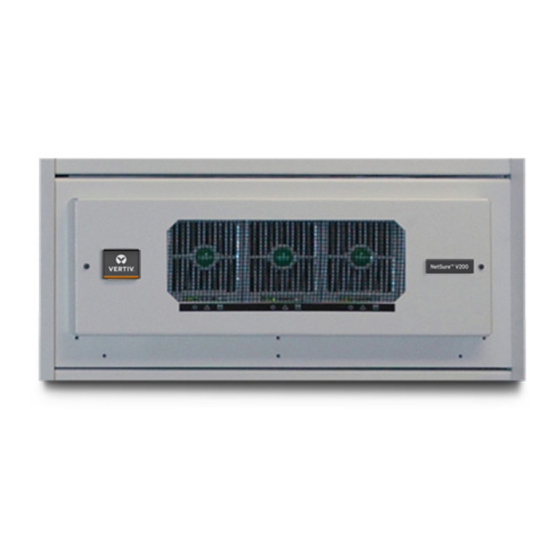

- Page 1 NetSure™ V200D50 DC Power Retrofit Installation and User Manual (UM486527803), Revision F Specification Number: 486527803 Model Number: V200D50...
- Page 2 NetXtend™ are trademarks of Vertiv Energy Systems, Inc. All other trademarks are the property of their respective owners. © 2017 Vertiv Energy Systems, Inc. All rights reserved. Vertiv | NetSure V200D50 DC Power Retrofit Installation & User Manual (UM486527803) | Rev. F...
-
Page 3: Table Of Contents
Replacement Procedures ..........................27 Replacing a Rectifier ............................... 27 Replacing the Rectifier Interface Circuit Card ................28 Replacing a Fan in a Rectifier ........................30 Vertiv | NetSure V200D50 DC Power Retrofit Installation & User Manual (UM486527803) | Rev. F... -
Page 4: Admonishments Used In This Document
SAFETY! Informs the reader of general safety information, reminders, precautions, or policies not related to a particular source of hazard or to fire safety. (ISO, ANSI, OSHA) Vertiv | NetSure V200D50 DC Power Retrofit Installation & User Manual (UM486527803) | Rev. F... -
Page 5: Important Safety Instructions
ALERT! Installation or removal of equipment containing static sensitive components requires careful handling. Before handling any equipment containing static sensitive components, read and follow the instructions contained on the Static Warning Page. Vertiv | NetSure V200D50 DC Power Retrofit Installation & User Manual (UM486527803) | Rev. F... -
Page 6: Static Warning
If necessary to repair equipment containing static sensitive components, wear an appropriately grounded wrist strap, work on a conductive surface, use a grounded soldering iron, and use grounded test equipment. Vertiv | NetSure V200D50 DC Power Retrofit Installation & User Manual (UM486527803) | Rev. F... -
Page 7: Introduction
Power and Current, One (1) V200 Retrofit: 10,500W, maximum (180.9A @ 58 VDC to 218.7A @ 48 VDC). Figure 1 shows the relationship between output voltage and output current at maximum power. Vertiv | NetSure V200D50 DC Power Retrofit Installation & User Manual (UM486527803) | Rev. F... - Page 8 Dynamic Response (at rated input and output voltage values): Response time is ≤200 µs, and the overshoot is ≤5% for load changes at 50%-25%-50% and 50%-75%- 50%. Vertiv | NetSure V200D50 DC Power Retrofit Installation & User Manual (UM486527803) | Rev. F...
-
Page 9: Ac Input Ratings
Inrush Current: Peak does not exceed 1.5 times the steady state peak value of the input current at full load, nominal input voltage, and for any duration of AC input interrupts. Under the above conditions, standard AC distribution circuit breakers will not trip. Vertiv | NetSure V200D50 DC Power Retrofit Installation & User Manual (UM486527803) | Rev. F... - Page 10 Maximum Input Current: at 100% of full load with output adjusted to 58 volts DC as measured at the Retrofit output terminals, and input voltage as shown. Nominal Input Input Current Input Voltage Voltage (Amperes) 208/240 36.47 Vertiv | NetSure V200D50 DC Power Retrofit Installation & User Manual (UM486527803) | Rev. F...
- Page 11 Maximum Input Current: at 100% of full load with output adjusted to 58 volts DC as measured at the Retrofit output terminals, and input voltage as shown. Nominal Input Input Current Input Voltage Voltage (Amperes) 208/240 36.33 Vertiv | NetSure V200D50 DC Power Retrofit Installation & User Manual (UM486527803) | Rev. F...
-
Page 12: Environmental Ratings
V200 Retrofit installed and fans operating, does not exceed the following typical levels. A Sound Level Meter conforming to ANSI S1.4 was used. Fan at Low Speed: < 59 dBA Fan at High Speed: < 67 dBA Vertiv | NetSure V200D50 DC Power Retrofit Installation & User Manual (UM486527803) | Rev. F... -
Page 13: Standard Features
Over Voltage Inhibit: If AC input voltage increases to approximately 295 volts, the PCU power conversion circuitry inhibits, disabling system output. When AC input voltage decreases to Vertiv | NetSure V200D50 DC Power Retrofit Installation & User Manual (UM486527803) | Rev. F... - Page 14 120 hours in any given year, but no more than 15 occurrences in that one year period.) Figure 4: Typical Thermal Power Limit Curve Vertiv | NetSure V200D50 DC Power Retrofit Installation & User Manual (UM486527803) | Rev. F...
- Page 15 Cooling: Each rectifier contains one fan for front-to-back forced convection cooling. Fan Control: • When input voltage is within normal range, the fan’s speed is controlled based on the internal temperature of the rectifier. Vertiv | NetSure V200D50 DC Power Retrofit Installation & User Manual (UM486527803) | Rev. F...
-
Page 16: Installation
Following this installation procedure will minimize the possibility of personal injury or equipment damage. Refer to the documentation provided with your Power System for any installation or maintenance procedures beyond the scope of this upgrade procedure. Vertiv | NetSure V200D50 DC Power Retrofit Installation & User Manual (UM486527803) | Rev. F... -
Page 17: Remove Style Strips From Power Bay
PCU. Refer to Figure 5 for latch and release location. Depress and hold the latch release, and remove the PCU from the Power Bay. Support the bottom of the PCU as you pull it out. Vertiv | NetSure V200D50 DC Power Retrofit Installation & User Manual (UM486527803) | Rev. F... - Page 18 Figure 5: Right Side View of V200 PCU Showing Location of Safety Latch and Latch Release LATCH SAFETY RELEASE LATCH Vertiv | NetSure V200D50 DC Power Retrofit Installation & User Manual (UM486527803) | Rev. F...
-
Page 19: Install The Mounting Frame
Rectifier AC/Data connectors without springs, perform the following procedure. Figure 6: Identifying Older Style Bays Spring Newer Style Bays Have the Springs, Older Style Bays Do Not Have Springs Rectifier AC/Data Connector Spring Vertiv | NetSure V200D50 DC Power Retrofit Installation & User Manual (UM486527803) | Rev. F... - Page 20 Directly to the right of the two Philips screws is a single 1/4” inch hex bolt which also must be loosened for lower adjustment. See Figure 8. Vertiv | NetSure V200D50 DC Power Retrofit Installation & User Manual (UM486527803) | Rev. F...
- Page 21 Torque the top and bottom 1/4” screws (2 each) and bottom 1/4” bolt to 84 in-lbs. Recheck the measurements by performing the previous procedure to verify the proper measurements. Vertiv | NetSure V200D50 DC Power Retrofit Installation & User Manual (UM486527803) | Rev. F...
-
Page 22: Install The Rectifiers
Click the handle on the Rectifier in order to pop it forward out of the front panel (this will also retract the latch mechanism located on the underside of the Rectifier). See Figure 11. Gently push the Rectifier completely into the frame. Vertiv | NetSure V200D50 DC Power Retrofit Installation & User Manual (UM486527803) | Rev. F... - Page 23 Install the front cover on the Mounting Frame. Secure by tightening the two captive fasteners. Refer to Figure 12. Figure 12: Securing Front Cover Panel (3) R48-3500 Rectifiers Installed Mounting Frame Front Cover Panel Captive Fasteners Vertiv | NetSure V200D50 DC Power Retrofit Installation & User Manual (UM486527803) | Rev. F...
-
Page 24: Install Remaining Retrofits In Power Bay
Repeat the entire installation procedure for any remaining Power Bays in the Power System that are to receive the V200 Retrofit. Final Step Enable the external alarms, or notify appropriate personnel that this procedure is finished. Vertiv | NetSure V200D50 DC Power Retrofit Installation & User Manual (UM486527803) | Rev. F... -
Page 25: Operation
Rectifier output disabled for any reason, including overvoltage shutdown and internal output fuse open. Rectifier addresses Alarm contradictory. (Red) Flashing Faulty fan (Rectifier shuts down). Vertiv | NetSure V200D50 DC Power Retrofit Installation & User Manual (UM486527803) | Rev. F... -
Page 26: Rectifier High Voltage Shutdown And Lockout Restart
(yellow) ON or FLASHING, and Alarm indicator (red) ON or FLASHING. Refer to Table 2 for a list of possible causes and corrective actions. Vertiv | NetSure V200D50 DC Power Retrofit Installation & User Manual (UM486527803) | Rev. F... -
Page 27: Replacement Procedures
Rectifier handle when pushing the Rectifier into the Mounting Frame. CAUTION! In a system with NO redundant Rectifier, battery must have sufficient reserve to power the load(s) while the Rectifier is removed. Vertiv | NetSure V200D50 DC Power Retrofit Installation & User Manual (UM486527803) | Rev. F... -
Page 28: Replacing The Rectifier Interface Circuit Card
Warning page at the front of this document before performing the following procedure. NOTE! When performing any step in this procedure that requires removal of existing hardware, retain all hardware for use in subsequent steps. Vertiv | NetSure V200D50 DC Power Retrofit Installation & User Manual (UM486527803) | Rev. F... - Page 29 Refer to Figure Locate the interface circuit card, Part No. 547568. Refer to Figure 14. Figure 14: Replacing the Rectifier Interface Circuit Card Vertiv | NetSure V200D50 DC Power Retrofit Installation & User Manual (UM486527803) | Rev. F...
-
Page 30: Replacing A Fan In A Rectifier
Performing this procedure may activate external alarms. Do one of the following. If possible, disable these alarms. If these alarms cannot be easily disabled, notify the appropriate personnel to disregard any future alarms associated with this system. Vertiv | NetSure V200D50 DC Power Retrofit Installation & User Manual (UM486527803) | Rev. F... - Page 31 Ensure that there are no local or remote alarms active on the system. Install the front cover on the Mounting Frame, and secure by tightening the two captive fasteners. Figure 15: Rectifier Fan Replacement Vertiv | NetSure V200D50 DC Power Retrofit Installation & User Manual (UM486527803) | Rev. F...
- Page 32 VertivCo.com | Vertiv Headquarters, 1050 Dearborn Drive, Columbus, OH, 43085, USA UM486527803 (RF 10/17)
