Audio Integration

Various classroom multimedia audio sources would typically be connected directly into
the audio amplifier to then be played through the classroom speakers. However, there is
an additional 3.5mm audio input directly on Access Link. That audio is passed through
Access Link and back out to the amplifier.
AUDIO INPUT

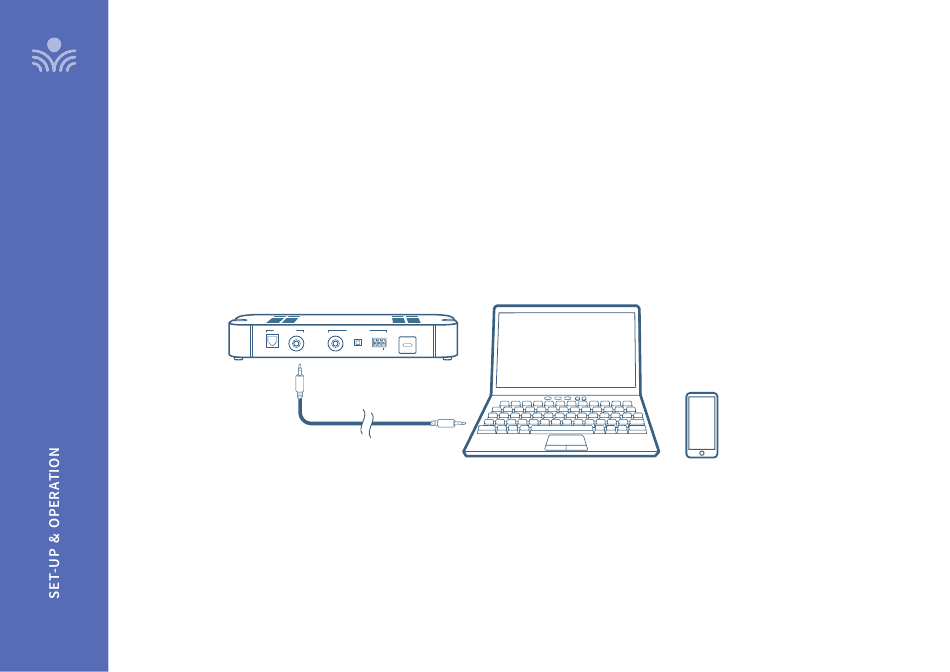

Access Link has one AUDIO INPUT with volume control for connecting to classroom
audio sources. Use a patch cable (not included) to connect a computer, cellular device,
or other audio source.
13
Audio Inputs Audio Outputs
USB
Unbalanced Balanced 5VDC/0.2A
Mic/Line
-40dB / 0dB
Optical +
