Emulex Host Bus Adapters Installation Guide

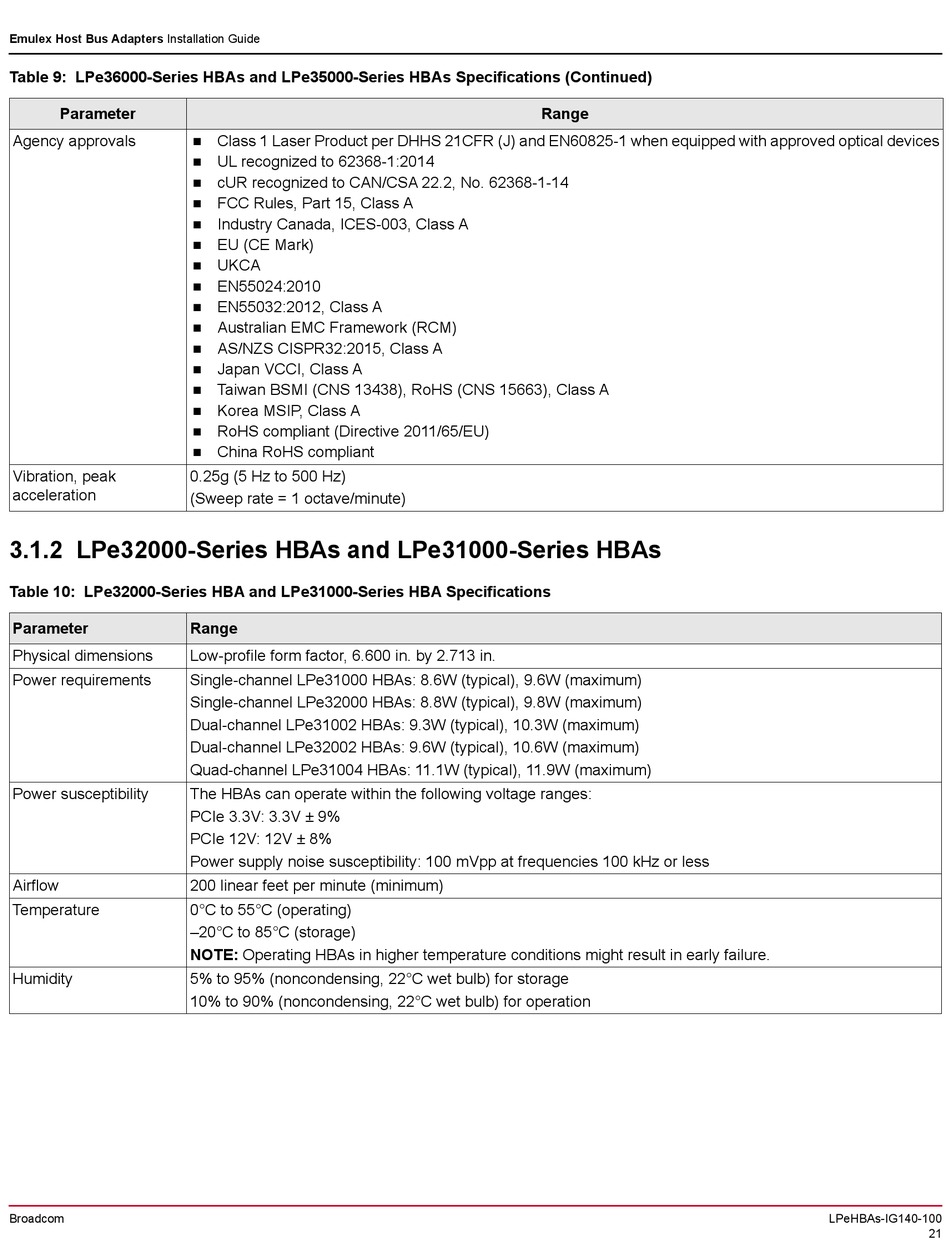

Table 9: LPe36000-Series HBAs and LPe35000-Series HBAs Specifications (Continued)
Parameter
Agency approvals
Vibration, peak
acceleration

3.1.2 LPe32000-Series HBAs and LPe31000-Series HBAs

Table 10: LPe32000-Series HBA and LPe31000-Series HBA Specifications
Parameter
Physical dimensions
Power requirements
Power susceptibility
Airflow
Temperature
Humidity
Broadcom
Class 1 Laser Product per DHHS 21CFR (J) and EN60825-1 when equipped with approved optical devices

UL recognized to 62368-1:2014

cUR recognized to CAN/CSA 22.2, No. 62368-1-14

FCC Rules, Part 15, Class A

Industry Canada, ICES-003, Class A

EU (CE Mark)

UKCA

EN55024:2010

EN55032:2012, Class A

Australian EMC Framework (RCM)

AS/NZS CISPR32:2015, Class A

Japan VCCI, Class A

Taiwan BSMI (CNS 13438), RoHS (CNS 15663), Class A

Korea MSIP, Class A

RoHS compliant (Directive 2011/65/EU)

China RoHS compliant

0.25g (5 Hz to 500 Hz)
(Sweep rate = 1 octave/minute)
Range
Low-profile form factor, 6.600 in. by 2.713 in.
Single-channel LPe31000 HBAs: 8.6W (typical), 9.6W (maximum)
Single-channel LPe32000 HBAs: 8.8W (typical), 9.8W (maximum)
Dual-channel LPe31002 HBAs: 9.3W (typical), 10.3W (maximum)
Dual-channel LPe32002 HBAs: 9.6W (typical), 10.6W (maximum)
Quad-channel LPe31004 HBAs: 11.1W (typical), 11.9W (maximum)
The HBAs can operate within the following voltage ranges:
PCIe 3.3V: 3.3V ± 9%
PCIe 12V: 12V ± 8%
Power supply noise susceptibility: 100 mVpp at frequencies 100 kHz or less
200 linear feet per minute (minimum)
0°C to 55°C (operating)
–20°C to 85°C (storage)
NOTE: Operating HBAs in higher temperature conditions might result in early failure.
5% to 95% (noncondensing, 22°C wet bulb) for storage
10% to 90% (noncondensing, 22°C wet bulb) for operation
Range
LPeHBAs-IG140-100
21
