Emulex Host Bus Adapters Installation Guide

Chapter 3: References

3.1 Specifications

3.1.1 LPe36000-Series HBAs and LPe35000-Series HBAs

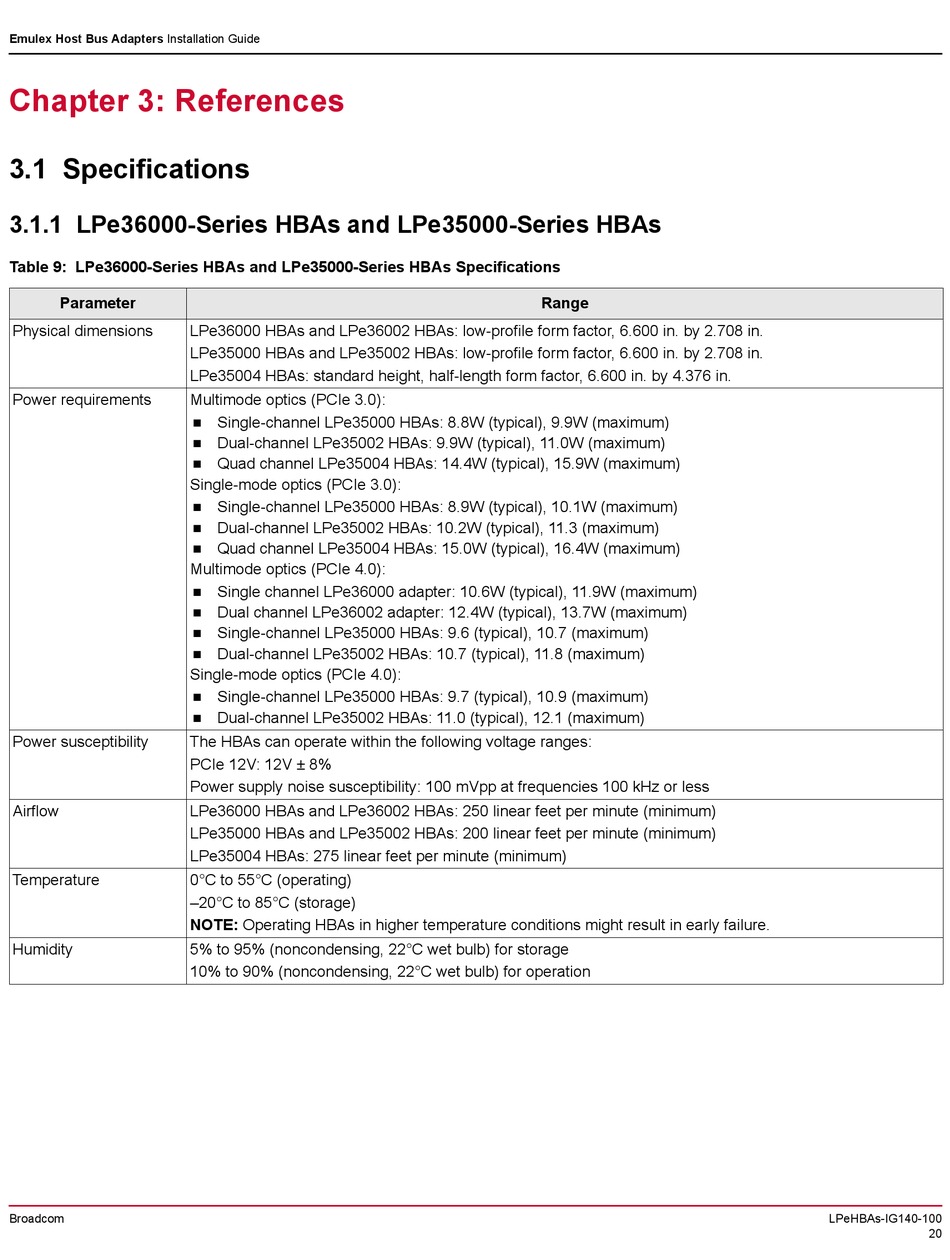

Table 9: LPe36000-Series HBAs and LPe35000-Series HBAs Specifications
Parameter
Physical dimensions
Power requirements
Power susceptibility
Airflow
Temperature
Humidity
Broadcom
LPe36000 HBAs and LPe36002 HBAs: low-profile form factor, 6.600 in. by 2.708 in.
LPe35000 HBAs and LPe35002 HBAs: low-profile form factor, 6.600 in. by 2.708 in.
LPe35004 HBAs: standard height, half-length form factor, 6.600 in. by 4.376 in.
Multimode optics (PCIe 3.0):
Single-channel LPe35000 HBAs: 8.8W (typical), 9.9W (maximum)

Dual-channel LPe35002 HBAs: 9.9W (typical), 11.0W (maximum)

Quad channel LPe35004 HBAs: 14.4W (typical), 15.9W (maximum)

Single-mode optics (PCIe 3.0):
Single-channel LPe35000 HBAs: 8.9W (typical), 10.1W (maximum)

Dual-channel LPe35002 HBAs: 10.2W (typical), 11.3 (maximum)

Quad channel LPe35004 HBAs: 15.0W (typical), 16.4W (maximum)

Multimode optics (PCIe 4.0):
Single channel LPe36000 adapter: 10.6W (typical), 11.9W (maximum)

Dual channel LPe36002 adapter: 12.4W (typical), 13.7W (maximum)

Single-channel LPe35000 HBAs: 9.6 (typical), 10.7 (maximum)

Dual-channel LPe35002 HBAs: 10.7 (typical), 11.8 (maximum)

Single-mode optics (PCIe 4.0):
Single-channel LPe35000 HBAs: 9.7 (typical), 10.9 (maximum)

Dual-channel LPe35002 HBAs: 11.0 (typical), 12.1 (maximum)

The HBAs can operate within the following voltage ranges:
PCIe 12V: 12V ± 8%
Power supply noise susceptibility: 100 mVpp at frequencies 100 kHz or less
LPe36000 HBAs and LPe36002 HBAs: 250 linear feet per minute (minimum)
LPe35000 HBAs and LPe35002 HBAs: 200 linear feet per minute (minimum)
LPe35004 HBAs: 275 linear feet per minute (minimum)
0°C to 55°C (operating)
–20°C to 85°C (storage)
NOTE: Operating HBAs in higher temperature conditions might result in early failure.
5% to 95% (noncondensing, 22°C wet bulb) for storage
10% to 90% (noncondensing, 22°C wet bulb) for operation
Range
