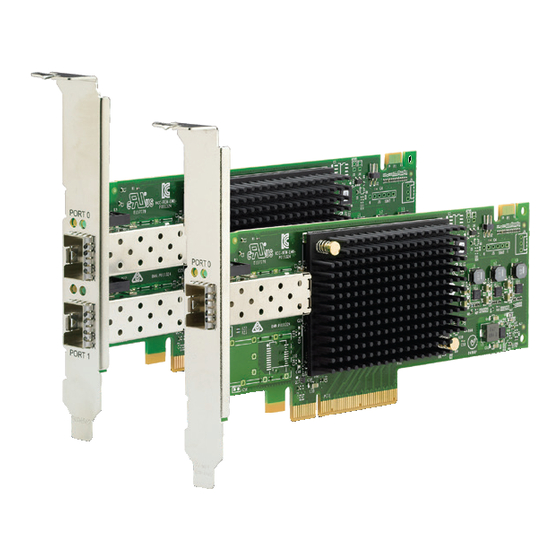

- Page 1 ® Emulex LPe12000-Series Host Bus Adapters Installation Guide Release 12.4 Broadcom LPe-120XX-IG124-100 August 26, 2019...
- Page 2 The term “Broadcom” refers to Broadcom Inc. and/or its subsidiaries. For more information, please visit www.broadcom.com. Broadcom reserves the right to make changes without further notice to any products or data herein to improve reliability, function, or design. Information furnished by Broadcom is believed to be accurate and reliable. However, Broadcom does not assume any liability arising out of the application or use of this information, nor the application or use of any product or circuit described herein, neither does it convey any license under its patent rights nor the rights of others.
-
Page 3: Table Of Contents
3.2.3 Notice for Taiwan and Translations (BSMI) ....................13 3.2.4 Notice for South Korea and Translations (MSIP) ....................13 3.3 Laser Safety Notice..............................14 3.4 Declarations of Conformity ............................15 3.4.1 LPe12002 and LPe12000 Adapters........................15 3.4.2 LPe12004 Adapters ............................16 3.5 Taiwan RoHS Notice ...............................17 Broadcom LPe-120XX-IG124-100... -
Page 4: Chapter 1: Introduction
Built-in temperature sensor. 1.3 Compatibility Table 1: Software and Hardware Environments Software Environments ® Refer to the Broadcom website at www.broadcom.com for compatible operating systems. Hardware Environments Adapters are compatible with PCIe 2.0 and CEM 2.0-compliant computers, and are backwards compatible with 1.0a and 1.1-compliant computers. -
Page 5: Adapter Identification
Each adapter ships with several numbers clearly marked on the circuit board. Record the following numbers before installation. Serial number – Assigned by Emulex. Use this number when communicating with Broadcom Technical Support. IEEE address – An IEEE unique 64-bit identifier used for system configuration. -
Page 6: Chapter 2: Installing The Hba
This is a delicate operation. Take care not to damage the optical transceiver. To remove a transceiver, pull the bail (handle) out and down to release the latch, and gently pull out the transceiver. Do not force it. After the latch is released, the transceiver slides out easily. Broadcom LPe-120XX-IG124-100... - Page 7 Figure 3: Removing an Optical Transceiver 2. Observing ESD precautions, store the transceiver in an ESD-safe place. 3. Remove the mounting bracket screws and washers from the adapter. Figure 4 shows the screws that are removed from the bracket. Broadcom LPe-120XX-IG124-100...
-
Page 8: Changing The Pci Device Id Jumper Setting
The LPe12000 adapter has one six-post jumper block that controls the adapter’s device ID. The LPe12002 and LPe12002-X8 adapters have two six-post jumper blocks that control the adapter’s device ID for ports 0 and 1. Broadcom LPe-120XX-IG124-100... -
Page 9: Installing The Adapter
Make sure that the adapter is in an appropriate PCIe slot that does not interfere with other components or with the case to prevent damage to the adapter. 5. Secure the adapter mounting bracket to the case with a panel screw or clip. 6. Replace the computer case and tighten the case screws. Broadcom LPe-120XX-IG124-100... -
Page 10: Attaching Media
4.25Gb/s: 0.5m to 10 km 8.5Gb/s 0.5m to 10 km To attach media to the adapter, follow these steps: 1. Insert an appropriate optical cable into the LC connectors on the adapter. Figure 6: Connecting a Fiber-Optic Cable Broadcom LPe-120XX-IG124-100... -
Page 11: Applying Power
You can view the yellow and green LEDs through openings in the adapter’s mounting bracket. The yellow LED indicates port activity, and the green LED indicates firmware operation. Each port has a corresponding set of yellow and green LEDs. Figure 7: Adapter LED Indicators Broadcom LPe-120XX-IG124-100... -
Page 12: Post Conditions And Results
Normal (link up at 8GFC) Slow blink Normal (link down) or not started Slow blink Slow blink Offline for download Fast blink Slow blink Restricted offline mode (waiting for restart) Flashing Slow blink Restricted offline mode (test active) Broadcom LPe-120XX-IG124-100... -
Page 13: Chapter 3: References
NOTE: Because of differences in the SFP+ transceivers (short-wave vs. long-wave), the power is slightly higher (by 100 mW) on the +3.3V power for the long-wave product. Airflow 150 linear feet per minute (minimum) Temperature 0°C to 55°C (operating) –40°C to 70°C (storage) Humidity 5% to 95% noncondensing Broadcom LPe-120XX-IG124-100... -
Page 14: Regulatory Notices
Responsible party: Jeff Hoogenboom, VP and General Manager of ECD Emulex Corporation c/o Broadcom Inc, (408) 433-8000 1320 Ridder Park Drive, San Jose, CA 95131 USA NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. -
Page 15: Notice For Japan And Translations (Vcci)
3.2.4 Notice for South Korea and Translations (MSIP) Class A Equipment: Sellers and users of this equipment take note that this equipment is EMC approved for Class A industrial use, and as such is not intended for residential use. Broadcom LPe-120XX-IG124-100... -
Page 16: Laser Safety Notice
The use of non-Emulex approved optical transceivers, or transceivers which do not comply with the Class 1 radiation performance requirements defined in DHHS/CDRH 21CFR Sub-chapter J and IEC 60825-1, may expose the user to hazardous laser radiation, and such devices should not be used with Emulex products. Broadcom LPe-120XX-IG124-100... -
Page 17: Declarations Of Conformity
Emulex LPe12000-Series Host Bus Adapters Installation Guide 3.4 Declarations of Conformity 3.4.1 LPe12002 and LPe12000 Adapters Notice for European Union (CE-Mark): DECLARATION OF CONFORMITY Broadcom LPe-120XX-IG124-100... -
Page 18: Lpe12004 Adapters
Emulex LPe12000-Series Host Bus Adapters Installation Guide 3.4.2 LPe12004 Adapters Notice for European Union (CE-Mark): DECLARATION OF CONFORMITY Broadcom LPe-120XX-IG124-100... -
Page 19: Taiwan Rohs Notice
Note 2: ? g ? › ? h indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence. 備考3. 〝—〞係指該項限用物質為排除項目。 Note 3: The “—” indicates that the restricted substance corresponds to the exemption. Broadcom LPe-120XX-IG124-100...
