Summary of Contents for Broadcom SAS 9305-16i

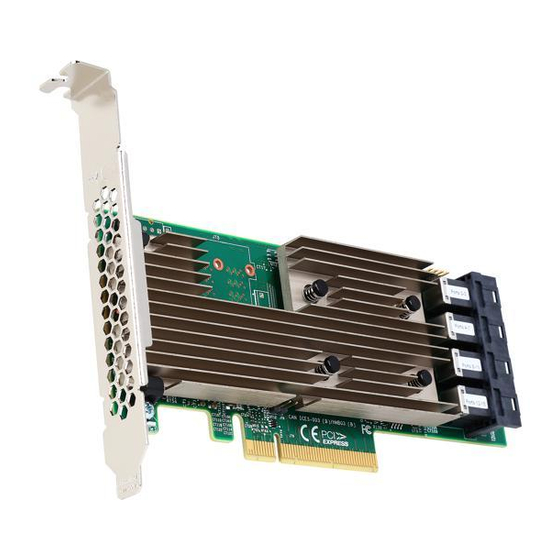

- Page 1 SAS 9305-16i PCI Express® to 12Gb/s Serial Attached SCSI (SAS) Host Bus Adapter User Guide Version 1.1 June 17, 2016 pub-005245...
-
Page 2: June
Information furnished by Broadcom is believed to be accurate and reliable. However, Broadcom does not assume any liability arising out of the application or use of this information, nor the application or use of any product or circuit described herein, neither does it convey any license under its patent rights nor the rights of others.Avago Technologies, the A logo, MegaRAID, CacheCade, CacheVault, and SafeStore are trademarks of Avago... -
Page 3: Table Of Contents
SAS 9305-16i PCI Express to 12Gb/s SAS Host Bus Adapter User Guide Table of Contents June 17, 2016 Table of Contents Chapter 1: Avago SAS 9305-16i Host Bus Adapter User Guide ..............4 1.1 Overview . -
Page 4: Chapter 1: Avago Sas 9305-16I Host Bus Adapter User Guide
SAS 9305-16i PCI Express to 12Gb/s SAS Host Bus Adapter User Guide Chapter 1: SAS 9305-16i Host Bus Adapter User Guide June 17, 2016 Overview Chapter 1: SAS 9305-16i Host Bus Adapter User Guide Overview The PCI Express (PCIe)-to-Serial Attached SCSI (SAS) host bus adapter (HBA), referred to as the Avago 12Gb/s SAS HBA, provides high-performance internal storage connectivity for servers and workstations. -
Page 5: Led Management
SAS 9305-16i PCI Express to 12Gb/s SAS Host Bus Adapter User Guide Chapter 1: SAS 9305-16i Host Bus Adapter User Guide June 17, 2016 Operating System Support 1.3.3 LED Management The Avago 12Gb/s SAS HBA offers LED management support for your backplane implementation. This configuration option lets you use the Avago 12Gb/s SAS HBA with backplanes configured for the SGPIO interface. -
Page 6: Physical Characteristics
SAS 9305-16i PCI Express to 12Gb/s SAS Host Bus Adapter User Guide Chapter 1: SAS 9305-16i Host Bus Adapter User Guide 12Gb/s SAS 9305-16i HBA Characteristics June 17, 2016 LED Indicator (LT14). Heartbeat LED. 1.5.4 Physical Characteristics This 12Gb/s SAS HBA is a 6.6 in. × 2.7 in. (167.65 mm × 68.90 mm) board. The component height on the top and bottom of the 12Gb/s SAS HBA complies with the PCIe specification. -
Page 7: 12Gb/S Sas Hba Certifications And Safety Characteristics
SAS 9305-16i PCI Express to 12Gb/s SAS Host Bus Adapter User Guide Chapter 1: SAS 9305-16i Host Bus Adapter User Guide June 17, 2016 12Gb/s SAS HBA Certifications and Safety Characteristics 12Gb/s SAS HBA Certifications and Safety Characteristics All Avago 12Gb/s SAS HBAs meet or exceed the requirements of UL flammability rating 94V-0. Each bare board is marked with the supplier’s name or trademark, type, and UL flammability rating. -
Page 8: Configuring The 9305-16I Hba With Port Widths Greater Than X1
SAS 9305-16i PCI Express to 12Gb/s SAS Host Bus Adapter User Guide Chapter 1: SAS 9305-16i Host Bus Adapter User Guide June 17, 2016 Configuring the 9305-16i HBA with Port Widths Greater than x1 Figure 2 Installing the 12Gb/s SAS 9305-16i HBA in a PCIe Slot... -
Page 9: Replacing The Bracket
SAS 9305-16i PCI Express to 12Gb/s SAS Host Bus Adapter User Guide Chapter 1: SAS 9305-16i Host Bus Adapter User Guide June 17, 2016 Replacing the Bracket Table 2 Board Port to SAS Core Association Board Ports Ports 0-3 Ports 4-7... -
Page 10: Technical Support
SAS 9305-16i PCI Express to 12Gb/s SAS Host Bus Adapter User Guide Chapter 1: SAS 9305-16i Host Bus Adapter User Guide June 17, 2016 Technical Support Keep the board on a level surface to make sure you do not lose any retaining clips. The heat sink is held in place by the same screws that attach the bracket. -
Page 11: Revision History
SAS 9305-16i PCI Express to 12Gb/s SAS Host Bus Adapter User Guide Chapter 1: SAS 9305-16i Host Bus Adapter User Guide June 17, 2016 Revision History 1.11 Revision History 1.11.1 pub-005245, Version 1.1, June 17, 2016 The following document change was made.
