Broadcom Symantec PC-S200 Quick Start Manual

PolicyCenter Quick Start Guide
PC-S200 Appliance

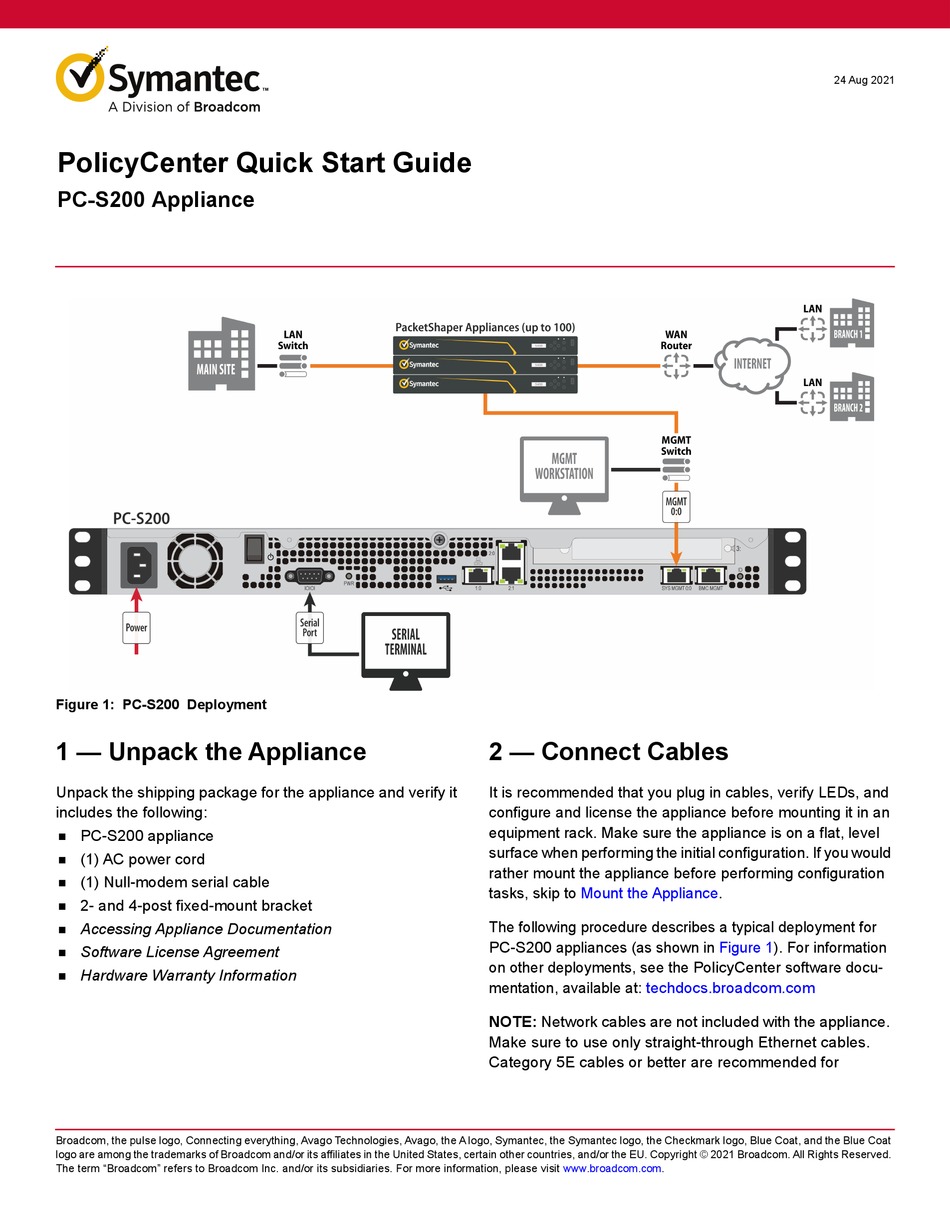

Figure 1: PC-S200 Deployment
1 — Unpack the Appliance
Unpack the shipping package for the appliance and verify it
includes the following:

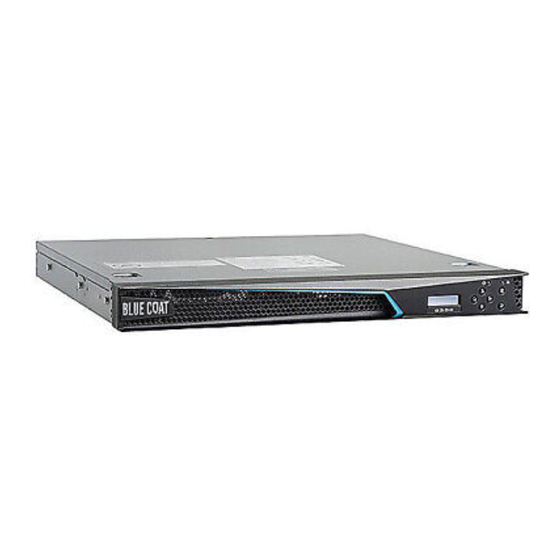

PC-S200 appliance

(1) AC power cord

(1) Null-modem serial cable

2- and 4-post fixed-mount bracket

Accessing Appliance Documentation

Software License Agreement

Hardware Warranty Information

Broadcom, the pulse logo, Connecting everything, Avago Technologies, Avago, the A logo, Symantec, the Symantec logo, the Checkmark logo, Blue Coat, and the Blue Coat
logo are among the trademarks of Broadcom and/or its affiliates in the United States, certain other countries, and/or the EU. Copyright © 2021 Broadcom. All Rights Reserved.
The term "Broadcom" refers to Broadcom Inc. and/or its subsidiaries. For more information, please visit www.broadcom.com.
2 — Connect Cables
It is recommended that you plug in cables, verify LEDs, and
configure and license the appliance before mounting it in an
equipment rack. Make sure the appliance is on a flat, level
surface when performing the initial configuration. If you would
rather mount the appliance before performing configuration
tasks, skip to Mount the Appliance.
The following procedure describes a typical deployment for
PC-S200 appliances (as shown in
on other deployments, see the PolicyCenter software docu-
mentation, available at: techdocs.broadcom.com
NOTE: Network cables are not included with the appliance.
Make sure to use only straight-through Ethernet cables.
Category 5E cables or better are recommended for
24 Aug 2021
Figure 1). For information
