- Page 1 ® Emulex Fibre Channel Host Bus Adapters Installation Guide Release 12.6 Broadcom LPeHBAs-IG126-100 February 11, 2020...
- Page 2 The term “Broadcom” refers to Broadcom Inc. and/or its subsidiaries. For more information, please visit www.broadcom.com. Broadcom reserves the right to make changes without further notice to any products or data herein to improve reliability, function, or design. Information furnished by Broadcom is believed to be accurate and reliable. However, Broadcom does not assume any liability arising out of the application or use of this information, nor the application or use of any product or circuit described herein, neither does it convey any license under its patent rights nor the rights of others.
-
Page 3: Table Of Contents
2.5 Changing the PCI Device ID Jumper Setting ......................20 2.6 Special Features of LPe32000-Series and LPe31000-Series HBAs ..............21 2.6.1 Changing the Speed of the HBA........................21 2.6.2 Setting the Secure Firmware Jumper ......................22 Chapter 3: References ........................24 3.1 Specifications................................24 3.1.1 LPe35000-Series HBAs ..........................24 Broadcom LPeHBAs-IG126-100... - Page 4 3.4 Taiwan RoHS Notices .............................43 3.4.1 LPe35000 HBAs and LPe35002 HBAs ......................43 3.4.2 LPe35004 HBAs .............................44 3.4.3 LPe31000-Series HBAs and LPe32000-Series HBAs ..................45 3.4.4 LPe16000B-Series HBAs, LPe16004 HBAs, and LPe15004 HBAs ...............47 3.4.5 LPe12000-Series HBAs and LPe1250 HBAs ....................48 Broadcom LPeHBAs-IG126-100...
-

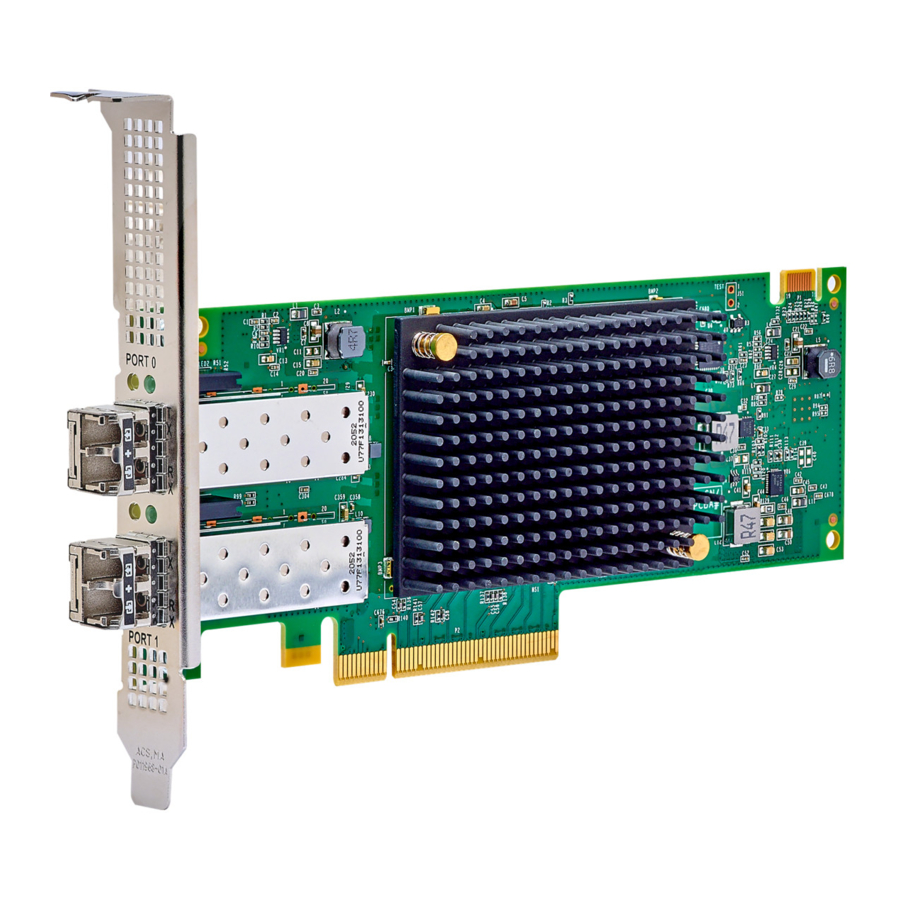

Page 5: Chapter 1: Introduction
(backwards compatible with Rev 3.0) and the PCI Express CEM Specification Rev 4.0 (backwards compatible with Rev 3.0) Packet transfers at 2.5 GT/s, 5 GT/s, 8 GT/s, and 16 GT/s on the PCIe link (autonegotiated with the system), x1 to x8 lane An x8 bus slot physical PCIe connector Broadcom LPeHBAs-IG126-100... -
Page 6: Compatibility
1.1.2 Compatibility Table 1: Software and Hardware Environments Software environments ® Refer to the Broadcom website at www.broadcom.com for compatible operating systems. Hardware environments LPe35000 HBAs and LPe35002 HBAs: PCIe 4.0 and PCIe 3.0 support x8, x4, x2, and x1 bus slots. -
Page 7: Compatibility
Fully featured FC ports compliant to various ANSI FC standards 1.2.2 Compatibility Table 2: Software and Hardware Environments Software environments Refer to the Broadcom website at www.broadcom.com for compatible operating systems. Hardware environments LPe32000-series HBAs: PCIe 3.0 supports x8, x4, and x1 bus slots. -
Page 8: Compatibility
Emulex Host Bus Adapters Installation Guide 1.3.2 Compatibility Table 3: Software and Hardware Environments Software environments Refer to the Broadcom website at www.broadcom.com for compatible operating systems. Hardware environments LPe15004 HBAs: PCIe 3.0 supports x8, x4, x2, and x1 bus slots. -
Page 9: Lpe1250 Hbas
1.6 HBA Identification Each HBA ships with several numbers clearly marked on the board. Record these numbers before installation. Serial number – Assigned by Emulex. Use this number when communicating with Broadcom Technical Support. IEEE address – An IEEE unique 48-bit identifier used for system configuration. -
Page 10: Abbreviations
Emulex Host Bus Adapters Installation Guide 1.7 Abbreviations Table 6: Acronyms and Abbreviations Acronym/Abbreviation Description Card Electromechanical forward error correction Gb/s gigabits per second GT/s giga-transfers per second identification INCITS International Committee for Information Technology Standards regulatory model number Broadcom LPeHBAs-IG126-100... -
Page 11: Chapter 2: Installation
If the HBA does not contain removable optical transceivers, skip to Step 3. Otherwise, follow these steps: 1. Remove the transceivers from their cage assemblies. The HBA uses various types of optical transceivers. Figure 1 shows an example of one type with the bail (handle) extended. Broadcom LPeHBAs-IG126-100... - Page 12 Figure 2 shows a transceiver with the latch released (bail extended) and another transceiver latched in place. Figure 2: Releasing the Latch on an Optical Transceiver Figure 3 shows an extracted transceiver and another transceiver latched in place. Broadcom LPeHBAs-IG126-100...
- Page 13 5. Align the new mounting bracket tabs with the holes in the HBA. CAUTION! Be careful not to push the mounting bracket past the grounding tabs on the transceiver housing. Make sure the LEDs are properly aligned with the holes in the mounting bracket. Broadcom LPeHBAs-IG126-100...
-
Page 14: Installing The Hba
See the table that includes your HBA. NOTE: The following HBAs cannot use single-mode fiber-optic cable with long-wave fibers: LPe16000B LPe16002B LPe16004 LPe15004 LPe12000-M8 LPe12002-M8 LPe1250 Broadcom LPeHBAs-IG126-100... - Page 15 8GFC: 0.5m to 21m 16GFC: 0.5m to 15m 32GFC: N/A OS2 – Single-mode 9/125 micrometer fiber 4GFC: 0.5m to 10km 0.5 meters (0.4 dB/km attenuation, type B1.3) 8GFC: 0.5m to 10km 16GFC: 0.5m to 10 km 32GFC: 0.5m to 10 km Broadcom LPeHBAs-IG126-100...
- Page 16 Table 12: Media Specifications (LPe1250 HBAs) Fiber-Optic Cable Maximum Length Minimum Length Connector OM3 – Multimode 50/125 micrometer fiber 2.125Gb/s: 0.5m to 500m 0.5 meters (2000 MHz × km bandwidth cable) 4.25Gb/s: 0.5m to 380m 8.5Gb/s 0.5m to 150m Broadcom LPeHBAs-IG126-100...
- Page 17 HBAs, can be used as an onsite spare. NOTE: Allows upgrade from LPe31000-series to LPe32000-series. LPe16000-series LPe16100-OPT 16GFC optic (short-wave laser) SFP+ For LPe16000-series HBAs, can be used as an onsite spare. NOTE: LPe15004 HBAs do not support replaceable optics. Broadcom LPeHBAs-IG126-100...
- Page 18 LPe12002-X8, can be used as an onsite spare. NOTE: Only Emulex accessories are warranted and fully supported by Broadcom Technical Support. Figure 5: Installing an Optical Transceiver 2. Insert an appropriate optical cable into the LC connectors on the HBA.
-
Page 19: Applying Power
HBA when it is powered on, and before it runs the operational software. At a minimum, the following tests are performed by POST: Flash boot image checksum test Internal ASIC RAM tests for proper ECC parity operation Loopback test Broadcom LPeHBAs-IG126-100... -
Page 20: Changing The Pci Device Id Jumper Setting
ESD damage, maintain constant contact with any metal grounded surface. A grounding wrist strap is useful for this purpose. Handle the card carefully at all times, preferably by the edges. Avoid touching electronic components, and keep the card in the original packaging until you are ready for installation. Broadcom LPeHBAs-IG126-100... -
Page 21: Special Features Of Lpe32000-Series And Lpe31000-Series Hbas
On some HBAs, you can change the speed of the link from 16GFC to 32GFC, or from 32GFC to 16GFC, by replacing the optical transceivers. The transmission speed of the LPe31000-series and LPe32000-series HBAs can be changed in this way. Broadcom LPeHBAs-IG126-100... -
Page 22: Setting The Secure Firmware Jumper
The next two figures provide examples of common locations of the Secure Firmware jumper. Figure 9: Secure Firmware Jumper Location J2 on LPe31000, LPe31002, LPe32000, and LPe32002 HBAs Header J2 with jumper installed To disable Secure (Secure Firmware Firmware, remove enabled) the jumper from J2 Broadcom LPeHBAs-IG126-100... - Page 23 Emulex Host Bus Adapters Installation Guide Figure 10: Secure Firmware Jumper Location J7 on LPe31004 HBAs Header J7 with jumper To disable Secure installed (Secure Firmware, remove Firmware enabled) the jumper from J7 Broadcom LPeHBAs-IG126-100...
-
Page 24: Chapter 3: References
0°C to 55°C (operating) –20°C to 85°C (storage) NOTE: Operating HBAs in higher temperature conditions might result in early failure. Humidity 5% to 95% (noncondensing, 22°C wet bulb) for storage 10% to 90% (noncondensing, 22°C wet bulb) for operation Broadcom LPeHBAs-IG126-100... -
Page 25: Lpe32000-Series Hbas And Lpe31000-Series Hbas
0°C to 55°C (operating) –20°C to 85°C (storage) NOTE: Operating HBAs in higher temperature conditions might result in early failure. Humidity 5% to 95% (noncondensing, 22°C wet bulb) for storage 10% to 90% (noncondensing, 22°C wet bulb) for operation Broadcom LPeHBAs-IG126-100... -
Page 26: Lpe16000-Series Hbas And Lpe15004 Hbas
5% to 95% (noncondensing, 23°C wet bulb) for storage 10% to 90% (noncondensing, 23°C wet bulb) for operation LPe16000B, LPe16002B, and LPe16004 HBAs: 5% to 95% (noncondensing, 22°C wet bulb) for storage 10% to 90% (noncondensing, 22°C wet bulb) for operation Broadcom LPeHBAs-IG126-100... -
Page 27: Lpe12000-Series Hbas And Lpe1250 Hbas
The controller connects to the physical media through an FC-0 media interface (FC-PI compliant transceiver), and then connects through dual optical-fiber LC connectors. Physical dimensions Low-profile MD2 form factor, 6.600 in. by 2.713 in. HBAs accommodate both full-height and low-profile brackets. Broadcom LPeHBAs-IG126-100... - Page 28 8.3 watts (maximum) at +12V ± 8% 5.9 watts (typical) total 9.6 watts (maximum) total Airflow 150 linear feet per minute (minimum) Temperature 0°C to 55°C (operating) –40°C to 70°C (storage) Humidity 5% to 95% noncondensing Broadcom LPeHBAs-IG126-100...
-
Page 29: Fcc And Regulatory Notices
Taiwan BSMI (CNS 13438), RoHS (CNS 15663), Class A Korea MSIP, Class A RoHS Compliant (Directive 2011/65/EU) China RoHS compliant 3.2 FCC and Regulatory Notices You can download the regulatory notices and certificates for Emulex HBAs at www.broadcom.com/emulex-regulatory. Broadcom LPeHBAs-IG126-100... -
Page 30: Fcc Supplier's Declarations Of Confirmation (Lpe35000-Series Hbas Only)
Emulex Host Bus Adapters Installation Guide 3.2.1 FCC Supplier’s Declarations of Confirmation (LPe35000-Series HBAs Only) 3.2.1.1 LPe35000 HBAs and LPe35002 HBAs Supplier’s Declaration of Confirmation (SDoC) for North America (FCC & ICES): Broadcom LPeHBAs-IG126-100... -
Page 31: Lpe35004 Hbas
Emulex Host Bus Adapters Installation Guide 3.2.1.2 LPe35004 HBAs Supplier’s Declaration of Confirmation (SDoC) for North America (FCC & ICES): Broadcom LPeHBAs-IG126-100... -
Page 32: Regulatory Notices
Responsible Party: Jeff Hoogenboom, VP and General Manager of ECD Emulex Corporation c/o Broadcom Inc. (408) 433-8000 1320 Ridder Park Drive, San Jose, CA 95131 USA NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. -
Page 33: Notice For South Korea And Translations (Msip)
21CFR Sub-chapter J, and the international laser safety standard EN/IEC 60825-1. Class 1 laser devices are not considered to be hazardous. The use of non-Broadcom approved optical transceivers, or transceivers that do not comply with the Class 1 radiation performance requirements defined in DHHS/CDRH 21CFR Sub-chapter J and IEC 60825-1, may expose the user to hazardous laser radiation, and such devices should not be used with Broadcom products. -
Page 34: Declarations Of Conformity
Emulex Host Bus Adapters Installation Guide 3.3 Declarations of Conformity 3.3.1 LPe35000 HBAs and LPe35002 HBAs Notice for European Union (CE-Mark): DECLARATION OF CONFORMITY Broadcom LPeHBAs-IG126-100... -
Page 35: Lpe35004 Hbas
Emulex Host Bus Adapters Installation Guide 3.3.2 LPe35004 HBAs Notice for European Union (CE-Mark): DECLARATION OF CONFORMITY Broadcom LPeHBAs-IG126-100... -
Page 36: Lpe31000 Hbas, Lpe31002 Hbas, Lpe32000 Hbas, And Lpe32002 Hbas
Emulex Host Bus Adapters Installation Guide 3.3.3 LPe31000 HBAs, LPe31002 HBAs, LPe32000 HBAs, and LPe32002 HBAs Notice for European Union (CE-Mark): DECLARATION OF CONFORMITY Broadcom LPeHBAs-IG126-100... -
Page 37: Lpe31004 Hbas
Emulex Host Bus Adapters Installation Guide 3.3.4 LPe31004 HBAs Notice for European Union (CE-Mark): DECLARATION OF CONFORMITY Broadcom LPeHBAs-IG126-100... -
Page 38: Lpe16000B Hbas And Lpe16002B Hbas
Emulex Host Bus Adapters Installation Guide 3.3.5 LPe16000B HBAs and LPe16002B HBAs Notice for European Union (CE-Mark): DECLARATION OF CONFORMITY Broadcom LPeHBAs-IG126-100... -
Page 39: Lpe16004 Hbas
Emulex Host Bus Adapters Installation Guide 3.3.6 LPe16004 HBAs Notice for European Union (CE-Mark): DECLARATION OF CONFORMITY Broadcom LPeHBAs-IG126-100... -
Page 40: Lpe15004 Hbas
Emulex Host Bus Adapters Installation Guide 3.3.7 LPe15004 HBAs Notice for European Union (CE-Mark): DECLARATION OF CONFORMITY Broadcom LPeHBAs-IG126-100... -
Page 41: Lpe12002 Hbas, Lpe12000 Hbas, And Lpe1250 Hbas
Emulex Host Bus Adapters Installation Guide 3.3.8 LPe12002 HBAs, LPe12000 HBAs, and LPe1250 HBAs Notice for European Union (CE-Mark): DECLARATION OF CONFORMITY Broadcom LPeHBAs-IG126-100... -
Page 42: Lpe12004 Hbas
Emulex Host Bus Adapters Installation Guide 3.3.9 LPe12004 HBAs Notice for European Union (CE-Mark): DECLARATION OF CONFORMITY Broadcom LPeHBAs-IG126-100... -
Page 43: Taiwan Rohs Notices
Emulex Host Bus Adapters Installation Guide 3.4 Taiwan RoHS Notices 3.4.1 LPe35000 HBAs and LPe35002 HBAs The following illustration provides the Taiwan RoHS notice for the P011814 RMN. Broadcom LPeHBAs-IG126-100... -
Page 44: Lpe35004 Hbas
Emulex Host Bus Adapters Installation Guide 3.4.2 LPe35004 HBAs The following illustration provides the Taiwan RoHS notice for the P011836 RMN. Broadcom LPeHBAs-IG126-100... -
Page 45: Lpe31000-Series Hbas And Lpe32000-Series Hbas
備考2.〝○〞係指該項限用物質之百分比含量未超出百分比含量基準值。 NOTE: “○” indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence. 備考3.〝—〞係指該項限用物質為排除項目。 NOTE: The “—” indicates that the restricted substance corresponds to the exemption. Broadcom LPeHBAs-IG126-100... - Page 46 備考2.〝○〞係指該項限用物質之百分比含量未超出百分比含量基準值。 NOTE: “○” indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence. 備考3.〝—〞係指該項限用物質為排除項目。 NOTE: The “—” indicates that the restricted substance corresponds to the exemption. Broadcom LPeHBAs-IG126-100...
-
Page 47: Lpe16000B-Series Hbas, Lpe16004 Hbas, And Lpe15004 Hbas
備考2.〝○〞係指該項限用物質之百分比含量未超出百分比含量基準值。 Note 2: “○” indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence. 備考3.〝 〞係指該項限用物質為排除項目。 Note 3: The “—” indicates that the restricted substance corresponds to the exemption. Broadcom LPeHBAs-IG126-100... -
Page 48: Lpe12000-Series Hbas And Lpe1250 Hbas
備考3.〝 〞係指該項限用物質為排除項目。 Note 3: The “—” indicates that the restricted substance corresponds to the exemption. 3.4.5 LPe12000-Series HBAs and LPe1250 HBAs The following table provides the Taiwan RoHS notice for the following RMNs: P001219 P003797 Broadcom LPeHBAs-IG126-100... - Page 49 Note 2: ? g ? › ? h indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence. 備考3. 〝—〞係指該項限用物質為排除項目。 Note 3: The “—” indicates that the restricted substance corresponds to the exemption. Broadcom LPeHBAs-IG126-100...
