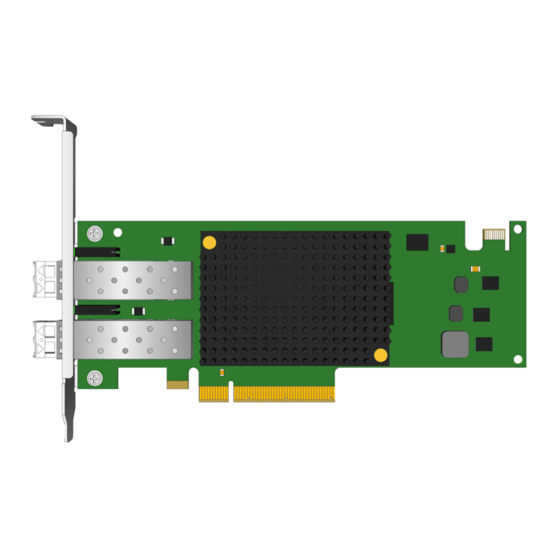

- Page 1 ® Emulex Fibre Channel Host Bus Adapters Installation Guide Release 14.0 Broadcom LPeHBAs-IG140-100 September13, 2021...
- Page 2 The term “Broadcom” refers to Broadcom Inc. and/or its subsidiaries. For more information, please visit www.broadcom.com. Broadcom reserves the right to make changes without further notice to any products or data herein to improve reliability, function, or design. Information furnished by Broadcom is believed to be accurate and reliable. However, Broadcom does not assume any liability arising out of the application or use of this information, nor the application or use of any product or circuit described herein, neither does it convey any license under its patent rights nor the rights of others.
-
Page 3: Table Of Contents
Emulex Host Bus Adapters Installation Guide Table of Contents Chapter 1: Introduction ........................5 1.1 LPe36000-Series HBAs and LPe35000-Series HBAs .....................5 1.1.1 Major Features..............................5 1.1.2 Compatibility ..............................6 1.1.3 Prerequisites ..............................6 1.2 LPe32000-Series HBAs and LPe31000-Series HBAs .....................7 1.2.1 Major Features..............................7 1.2.2 Compatibility ..............................7... - Page 4 Emulex Host Bus Adapters Installation Guide 3.3.3 LPe31000 HBAs, LPe31002 HBAs, LPe32000 HBAs, and LPe32002 HBAs..........31 3.3.4 LPe31004 HBAs .............................33 3.4 Taiwan RoHS Notices .............................35 3.4.1 LPe36000 HBAs, LPe36002 HBAs, LPe35000 HBAs, and LPe35002 HBAs..........35 3.4.2 LPe35004 HBAs .............................36 3.4.3 LPe31000-Series HBAs and LPe32000-Series HBAs ..................37...
-
Page 5: Chapter 1: Introduction
ECC protection of high-density RAM (single-bit correction, double-bit detection) SFP+ interface supporting optics with LC connections and digital diagnostics capability (only Emulex-approved 64Gb/s [LPe36000-series HBAs] and 32Gb/s SFP+ optical modules [LPe36000-series HBAs and LPe 35000-series HBAs] are... -
Page 6: Compatibility
Emulex Host Bus Adapters Installation Guide LPe36000 HBAs and LPe36002 HBAs have the following major features: Multifunction PCIe Gen4 interface controller that is compliant to the PCI Express Base Specification Rev 4.0 (backwards compatible with Rev 3.0) and the PCI Express CEM Specification Rev 4.0 (backwards compatible with Rev 3.0) -
Page 7: Lpe32000-Series Hbas And Lpe31000-Series Hbas
Emulex Host Bus Adapters Installation Guide 1.2 LPe32000-Series HBAs and LPe31000-Series HBAs This section describes the following FC-to-PCIe Emulex LPe32000-series HBAs and LPe31000-series HBAs: LPe32000-series HBAs (32Gb/s, 16Gb/s, or 8Gb/s): – LPe32000 (one port) – LPe32002 (two ports) LPe31000-series HBAs (16Gb/s or 8Gb/s): ... -
Page 8: Hba Identification
1.3 HBA Identification Each HBA ships with several numbers clearly marked on the board. Record these numbers before installation. Serial number – Assigned by Emulex. Use this number when communicating with Broadcom Technical Support. IEEE address – An IEEE unique 48-bit identifier used for system configuration. -
Page 9: Chapter 2: Installation
Emulex Host Bus Adapters Installation Guide Chapter 2: Installation The standard HBAs can be connected to fiber-optic cables. If you do not need to change the HBA’s bracket, skip to Section 2.2, Installing the HBA. Otherwise, continue to Section 2.1, Preparing the HBA for Installation. - Page 10 Emulex Host Bus Adapters Installation Guide Figure 1: Typical Optical Transceiver CAUTION! This is a delicate operation. Take care not to damage the optical transceiver. To remove a transceiver, pull the bail (handle) out and down to release the latch, and gently pull out the transceiver. Do not force it.
- Page 11 Emulex Host Bus Adapters Installation Guide Figure 3: Removing an Optical Transceiver 2. Observing ESD precautions, store the transceiver in an ESD-safe place. 3. Remove the mounting bracket screws and washers from the top of the HBA. Figure 4 shows the screws that are removed from the mounting bracket.
-
Page 12: Installing The Hba
2. Remove the computer case. 3. Remove the blank panel from an empty PCIe bus slot. All Emulex HBAs except LPe36002 HBAs can use x16 PCIe bus slots. All Emulex HBAs except LPe35004 HBAs can use x8 PCIe bus slots. - Page 13 Emulex Host Bus Adapters Installation Guide Table 5: Media Specifications (LPe36000-Series HBAs and LPe35000-Series HBAs) (Continued) Fiber-Optic Cable Maximum Length Minimum Length Connector OM2 – Multimode 50/125 micrometer fiber 8GFC: 0.5m to 50m 0.5 meters (500 MHz × km bandwidth cable) 16GFC: 0.5m to 35m...
- Page 14 LPe32000-series LP32-SW-OPT-2 32GFC optic (short-wave laser) SFP+ For LPe32000-series LPe31000-series HBAs, can be used as an onsite spare. NOTE: Allows upgrade from LPe31000-series to LPe32000-series. NOTE: Only Emulex accessories are warranted and fully supported by Broadcom Technical Support. Broadcom LPeHBAs-IG140-100...
-
Page 15: Applying Power
Emulex Host Bus Adapters Installation Guide Figure 5: Installing an Optical Transceiver 2. Insert an appropriate optical cable into the LC connectors on the HBA. Figure 6: Connecting a Fiber-Optic Cable 3. Connect the other end to the FC device. -
Page 16: Viewing The Leds
2.4.2 POST Conditions and Results POST is the default mode of self-test for Emulex HBAs. No jumpers or connectors are necessary for this test to run. This test performs a quick confidence level check of the HBA when it is powered on, and before it runs the operational software. -
Page 17: Changing The Speed Of The Hba
LPe31000-series HBAs and LPe32000-series HBAs have a jumper that enables or disables the Secure Firmware feature as required. To update the firmware using a tool, such as the Emulex HBA Manager application (formerly the OneCommand™ Manager application), boot utilities, or Elxflash utilities, there is no need to remove the jumper. The Secure Firmware feature can remain enabled as long as the update is from one secure firmware version to another secure firmware version. - Page 18 Emulex Host Bus Adapters Installation Guide Figure 8: Secure Firmware Jumper Location J2 on LPe31000, LPe31002, LPe32000, and LPe32002 HBAs Header J2 with jumper installed To disable Secure (Secure Firmware Firmware, remove enabled) the jumper from J2 Broadcom LPeHBAs-IG140-100...
- Page 19 Emulex Host Bus Adapters Installation Guide Figure 9: Secure Firmware Jumper Location J7 on LPe31004 HBAs Header J7 with jumper To disable Secure installed (Secure Firmware, remove Firmware enabled) the jumper from J7 Broadcom LPeHBAs-IG140-100...
-
Page 20: Chapter 3: References
Emulex Host Bus Adapters Installation Guide Chapter 3: References 3.1 Specifications 3.1.1 LPe36000-Series HBAs and LPe35000-Series HBAs Table 9: LPe36000-Series HBAs and LPe35000-Series HBAs Specifications Parameter Range Physical dimensions LPe36000 HBAs and LPe36002 HBAs: low-profile form factor, 6.600 in. by 2.708 in. -
Page 21: Lpe32000-Series Hbas And Lpe31000-Series Hbas
Emulex Host Bus Adapters Installation Guide Table 9: LPe36000-Series HBAs and LPe35000-Series HBAs Specifications (Continued) Parameter Range Agency approvals Class 1 Laser Product per DHHS 21CFR (J) and EN60825-1 when equipped with approved optical devices UL recognized to 62368-1:2014 ... -
Page 22: Fcc And Regulatory Notices
RoHS compliant (Directive 2011/65/EU) China RoHS compliant Vibration, peak 0.25g (5 Hz to 500 Hz) acceleration (Sweep rate = 1 octave/minute) 3.2 FCC and Regulatory Notices You can download the regulatory notices and certificates for Emulex HBAs at www.broadcom.com/emulex-regulatory. Broadcom LPeHBAs-IG140-100... -
Page 23: Fcc Supplier's Declarations Of Confirmation (Lpe36000-Series And Lpe35000-Series Hbas)
Shielded cables must be used between this equipment and attached peripheral devices. The reader is cautioned that changes or modifications made to the equipment not expressly approved by Broadcom could void the user’s authority to operate this equipment... -
Page 24: Lpe35004 Hbas
Shielded cables must be used between this equipment and attached peripheral devices. The reader is cautioned that changes or modifications made to the equipment not expressly approved by Broadcom could void the user’s authority to operate this equipment... -
Page 25: Regulatory Notices
Shielded cables must be used between this equipment and attached peripheral devices. The reader is cautioned that changes or modifications made to the equipment not expressly approved by Emulex could void the user's authority to operate this equipment. -
Page 26: Notice For South Korea And Translations (Msip)
21CFR Sub-chapter J, and the international laser safety standard EN/IEC 60825-1. Class 1 laser devices are not considered to be hazardous. The use of non-Broadcom approved optical transceivers, or transceivers that do not comply with the Class 1 radiation performance requirements defined in DHHS/CDRH 21CFR Sub-chapter J and IEC 60825-1, may expose the user to hazardous laser radiation, and such devices should not be used with Broadcom products. -
Page 27: Declarations Of Conformity
Emulex Host Bus Adapters Installation Guide 3.3 Declarations of Conformity 3.3.1 LPe36000 HBAs, LPe36002 HBAs, LPe35000 HBAs, and LPe35002 HBAs Notice for European Union (CE-Mark): DECLARATION OF CONFORMITY Manufacturer: Broadcom Inc. 1320 Ridder Park Drive San Jose, CA 95131 USA... - Page 28 Emulex Host Bus Adapters Installation Guide Notice for UKCA: Broadcom Inc. 1320 Ridder Park Drive San Jose, CA 95131 USA www.broadcom.com DECLARATION OF CONFORMITY for UKCA Supplier: Broadcom UK Ltd. Address: 910 Hempton Court, Aztec West Almondsbury, Bristol BS32 4SR United Kingdom Product Name: Emulex®...
-
Page 29: Lpe35004 Hbas
Emulex Host Bus Adapters Installation Guide 3.3.2 LPe35004 HBAs Notice for European Union (CE-Mark): DECLARATION OF CONFORMITY Manufacturer: Broadcom Inc. 1320 Ridder Park Drive San Jose, CA 95131 USA declares under sole responsibility that the product: Product Name: Emulex® HBA... - Page 30 Emulex Host Bus Adapters Installation Guide Notice for UKCA: Broadcom Inc. 1320 Ridder Park Drive San Jose, CA 95131 USA www.broadcom.com DECLARATION OF CONFORMITY for UKCA Supplier: Broadcom UK Ltd. Address: 910 Hempton Court, Aztec West Almondsbury, Bristol BS32 4SR United Kingdom Product Name: Emulex®...
-
Page 31: Lpe31000 Hbas, Lpe31002 Hbas, Lpe32000 Hbas, And Lpe32002 Hbas
Emulex Host Bus Adapters Installation Guide 3.3.3 LPe31000 HBAs, LPe31002 HBAs, LPe32000 HBAs, and LPe32002 HBAs Notice for European Union (CE-Mark): DECLARATION OF CONFORMITY Manufacturer: Broadcom Inc. 1320 Ridder Park Drive San Jose, CA, 95131 USA declares under sole responsibility that the product: Product Name: Emulex®... - Page 32 Emulex Host Bus Adapters Installation Guide Notice for UKCA: Broadcom Inc. 1320 Ridder Park Drive San Jose, CA 95131 USA www.broadcom.com DECLARATION OF CONFORMITY for UKCA Supplier: Broadcom UK Ltd. Address: 910 Hempton Court, Aztec West Almondsbury, Bristol BS32 4SR United Kingdom Product Name: Emulex®...
-
Page 33: Lpe31004 Hbas
Emulex Host Bus Adapters Installation Guide 3.3.4 LPe31004 HBAs Notice for European Union (CE-Mark): DECLARATION OF CONFORMITY Manufacturer: Broadcom Inc. 1320 Ridder Park Drive San Jose, CA 95131 USA declares under sole responsibility that the product: Product Name: Emulex® HBA... - Page 34 Emulex Host Bus Adapters Installation Guide Notice for UKCA: Broadcom Inc. 1320 Ridder Park Drive San Jose, CA 95131 USA www.broadcom.com DECLARATION OF CONFORMITY for UKCA Supplier: Broadcom UK Ltd. Address: 910 Hempton Court, Aztec West Almondsbury, Bristol BS32 4SR United Kingdom Product Name: Emulex®...
-
Page 35: Taiwan Rohs Notices
Emulex Host Bus Adapters Installation Guide 3.4 Taiwan RoHS Notices 3.4.1 LPe36000 HBAs, LPe36002 HBAs, LPe35000 HBAs, and LPe35002 HBAs The following illustration provides the Taiwan RoHS notice for the P011814 RMN. Broadcom LPeHBAs-IG140-100... -
Page 36: Lpe35004 Hbas
Emulex Host Bus Adapters Installation Guide 3.4.2 LPe35004 HBAs The following illustration provides the Taiwan RoHS notice for the P011836 RMN. Broadcom LPeHBAs-IG140-100... -
Page 37: Lpe31000-Series Hbas And Lpe32000-Series Hbas
Emulex Host Bus Adapters Installation Guide 3.4.3 LPe31000-Series HBAs and LPe32000-Series HBAs The following table provides the Taiwan RoHS notice for the following RMNs: 5189-1403 P011324 P011687 P011712 設備名稱： 型號（型式） Equipment name : LightPulse Fibre Channel Adapter Card Type designation (Type) : Board Assemblies 限用物質及其化學符號... - Page 38 Emulex Host Bus Adapters Installation Guide The following table provides the Taiwan RoHS notice for the 5067-5396 RMN. 設備名稱： 型號（型式） Equipment name : LightPulse Fibre Channel Adapter Card Type designation (Type) : Board Assemblies 限用物質及其化學符號 Restricted substances and their chemical symbols 多溴二苯醚...
