- Page 1 ® Emulex LPe31000-Series and LPe32000-Series Adapters Quick Installation Guide Release 11.4 Broadcom LPe3X00X-IG114-101 July 5, 2018...
- Page 2 The term “Broadcom” refers to Broadcom Inc. and/or its subsidiaries. For more information, please visit www.broadcom.com. Broadcom reserves the right to make changes without further notice to any products or data herein to improve reliability, function, or design. Information furnished by Broadcom is believed to be accurate and reliable. However, Broadcom does not assume any liability arising out of the application or use of this information, nor the application or use of any product or circuit described herein, neither does it convey any license under its patent rights nor the rights of others.
-
Page 3: Table Of Contents
Chapter 2: Installation ........................7 2.1 Preparing the Adapter for Installation........................7 2.2 Installing the Adapter ...............................9 2.3 Attaching the Media ..............................10 ® 2.4 Broadcom LightPulse Accessories........................12 2.5 Applying Power ...............................12 2.6 Viewing the LEDs ..............................13 2.6.1 POST Conditions and Results ........................13 2.7 Changing the Speed of the Adapter ........................14... -

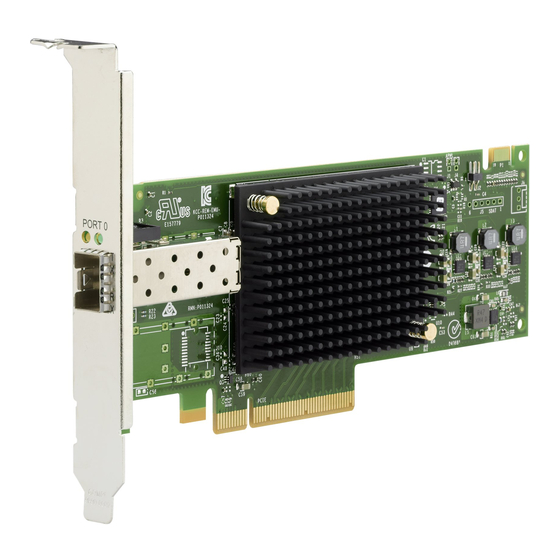

Page 4: Chapter 1: Introduction
Section 2.7, Changing the Speed of the Adapter. The core technology of these adapters is Broadcom's 6th generation FC controller. The controller is a multi-function PCIe Gen3 interface controller that is compliant to the PCI Express Base Specification, Rev 3.0 and PCI Express CEM Specification, Rev 3.0. -
Page 5: Compatibility
Emulex LPe31000-Series and LPe32000-Series Adapters Quick Installation Guide 1.1.2 Compatibility Table 1: Software and Hardware Environments Software Environments Refer to the Product section of the Broadcom website at www.broadcom.com for compatible operating systems. Hardware Environments LPe31000-series: PCIe 3.0 supports x8, x4, x2, and x1. -
Page 6: Adapter Identification
Emulex LPe31000-Series and LPe32000-Series Adapters Quick Installation Guide 1.1.3.1 Adapter Identification Each adapter ships with several numbers clearly marked on the board. Broadcom recommends recording these numbers before installation. Serial number – Assigned by Broadcom. Use this number when communicating with Broadcom. -
Page 7: Chapter 2: Installation
2.1 Preparing the Adapter for Installation The Broadcom Emulex LPe31000-series and LPe32000-series adapters use removable optical transceivers. If you need to change the bracket for an adapter installation, you must first remove the optical transceivers, if installed, from the housing (cage). - Page 8 Figure 3: Removing an Optical Transceiver 3. Observing precautions, store the transceiver in an ESD-safe place. 4. Remove the mounting bracket screws from the top of the adapter. Figure 4 shows the screws that are removed from the bracket. Broadcom LPe3X00X-IG114-101...
-
Page 9: Installing The Adapter
4. Insert the adapter into an empty PCIe x8 or x16 slot. Press firmly until the adapter is seated. NOTE: Make sure that the adapter is in an appropriate PCIe slot that does not interfere with other components or with the computer case to prevent damage to the adapter. Broadcom LPe3X00X-IG114-101... -
Page 10: Attaching The Media
Table 4: Single-mode Media Specifications Fiber-Optic Cable Length Connector Connector OS1 – Single-mode 9/125 micrometer fiber – NOTE 1 4GFC: 2m to 10 km 8GFC: 2m to 10 km 16GFC: 0.5m to 10 km 32GFC: 0.5m to 10 km Broadcom LPe3X00X-IG114-101... - Page 11 When connecting an optical cable, ensure that the cages have optical transceivers installed in them (see Figure Figure 5: Installing an Optical Transceiver After the optical transceivers are installed, insert the optical cable into the LC connectors on the adapter (see Figure Broadcom LPe3X00X-IG114-101...
-
Page 12: Broadcom Lightpulse ® Accessories
LP32-SW-OPT-2 LP, 32GFC, SW, SFP+, OptTcvr, 2 pieces SFP+ NOTE: Only Broadcom accessories are warranted and fully supported by Broadcom Technical Support. 2.5 Applying Power To apply power: 1. Verify that the adapter is securely installed in the system. 2. Verify that the correct media is attached. -
Page 13: Viewing The Leds
Table 6: POST Conditions and Results Green LED Yellow LED State No SFP modules installed or boot failure (dead board) POST failure (dead board) Slow blink Boot failure after POST Fast blink Not defined Flashing POST processing in progress Broadcom LPe3X00X-IG114-101... -
Page 14: Changing The Speed Of The Adapter
Replace the jumper after the firmware update is complete. The following illustrations (Figure 8 Figure 9) provide examples of common locations of the Secure Firmware jumper. Broadcom LPe3X00X-IG114-101... - Page 15 Emulex LPe31000-Series and LPe32000-Series Adapters Quick Installation Guide Figure 8: Secure Firmware Jumper Location J2 on LPe31000, LPe31002, LPe32000, and LPe32002 Adapters Header J2 with jumper To disable Secure installed (Secure) Firmware, remove the jumper from J2 Broadcom LPe3X00X-IG114-101...
- Page 16 Emulex LPe31000-Series and LPe32000-Series Adapters Quick Installation Guide Figure 9: Secure Firmware Jumper Location J7 on LPe31004 Adapter Header J7 with jumper To disable Secure installed (Secure Firmware Firmware, remove the enabled) jumper from J7 Broadcom LPe3X00X-IG114-101...
-
Page 17: Chapter 3: References
Taiwan BSMI (CNS 13438), RoHS (CNS 15663), Class A Korea KCC, Class A RoHS compliant (Directive 2011/65/EU) China RoHS compliant Vibration, peak 0.25g (5 Hz to 500 Hz) acceleration (Sweep rate = 1 octave/minute) Broadcom LPe3X00X-IG114-101... -
Page 18: Fcc And Regulatory Notices
The reader is cautioned that changes or modifications made to the equipment not expressly approved by Broadcom could void the user's authority to operate this equipment. -
Page 19: Notice For South Korea And Translations (Kcc)
3.2.1.3 Notice for South Korea and Translations (KCC) Translation: Class A Equipment: Sellers and users of this equipment take note that this equipment is EMC approved for Class A industrial use, and as such is not intended for residential use. Broadcom LPe3X00X-IG114-101... -
Page 20: Declarations Of Conformity
Emulex LPe31000-Series and LPe32000-Series Adapters Quick Installation Guide 3.3 Declarations of Conformity 3.3.1 LPe31000-Series and LPe32000-Series HBAs Notice for European Union (CE-Mark): DECLARATION OF CONFORMITY Broadcom LPe3X00X-IG114-101... -
Page 21: Lpe31004-Series Hbas
Emulex LPe31000-Series and LPe32000-Series Adapters Quick Installation Guide 3.3.2 LPe31004-Series HBAs Notice for European Union (CE-Mark): DECLARATION OF CONFORMITY Broadcom LPe3X00X-IG114-101... -
Page 22: Lpe3X004-Series Hbas
Emulex LPe31000-Series and LPe32000-Series Adapters Quick Installation Guide 3.3.3 LPe3x004-Series HBAs Notice for European Union (CE-Mark): DECLARATION OF CONFORMITY Broadcom LPe3X00X-IG114-101... -
Page 23: Laser Safety Notice
21CFR Sub-chapter J, and the international laser safety standard EN/IEC 60825-1. Class 1 laser devices are not considered to be hazardous. The use of non-Broadcom approved optical transceivers, or transceivers that do not comply with the Class 1 radiation performance requirements defined in DHHS/CDRH 21CFR Sub-chapter J and IEC 60825-1 may expose the user to hazardous laser radiation, and such devices should not be used with Broadcom products. - Page 24 電路板- ○ ○ ○ ○ ○ ○ Printed Circuit Board 連接器 - ○ ○ ○ ○ ○ ○ Connector/ Mechanical 集成电路- ○ ○ ○ ○ ○ ○ Active Devices — 光纖收發器- ○ ○ ○ ○ ○ Optical Transceiver Broadcom LPe3X00X-IG114-101...
- Page 25 備考2.〝○〞係指該項限用物質之百分比含量未超出百分比含量基準值。 NOTE 2: “○” indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence. 備考3.〝—〞係指該項限用物質為排除項目。 NOTE 3: The “—” indicates that the restricted substance corresponds to the exemption. Broadcom LPe3X00X-IG114-101...
