Emulex Host Bus Adapters Installation Guide

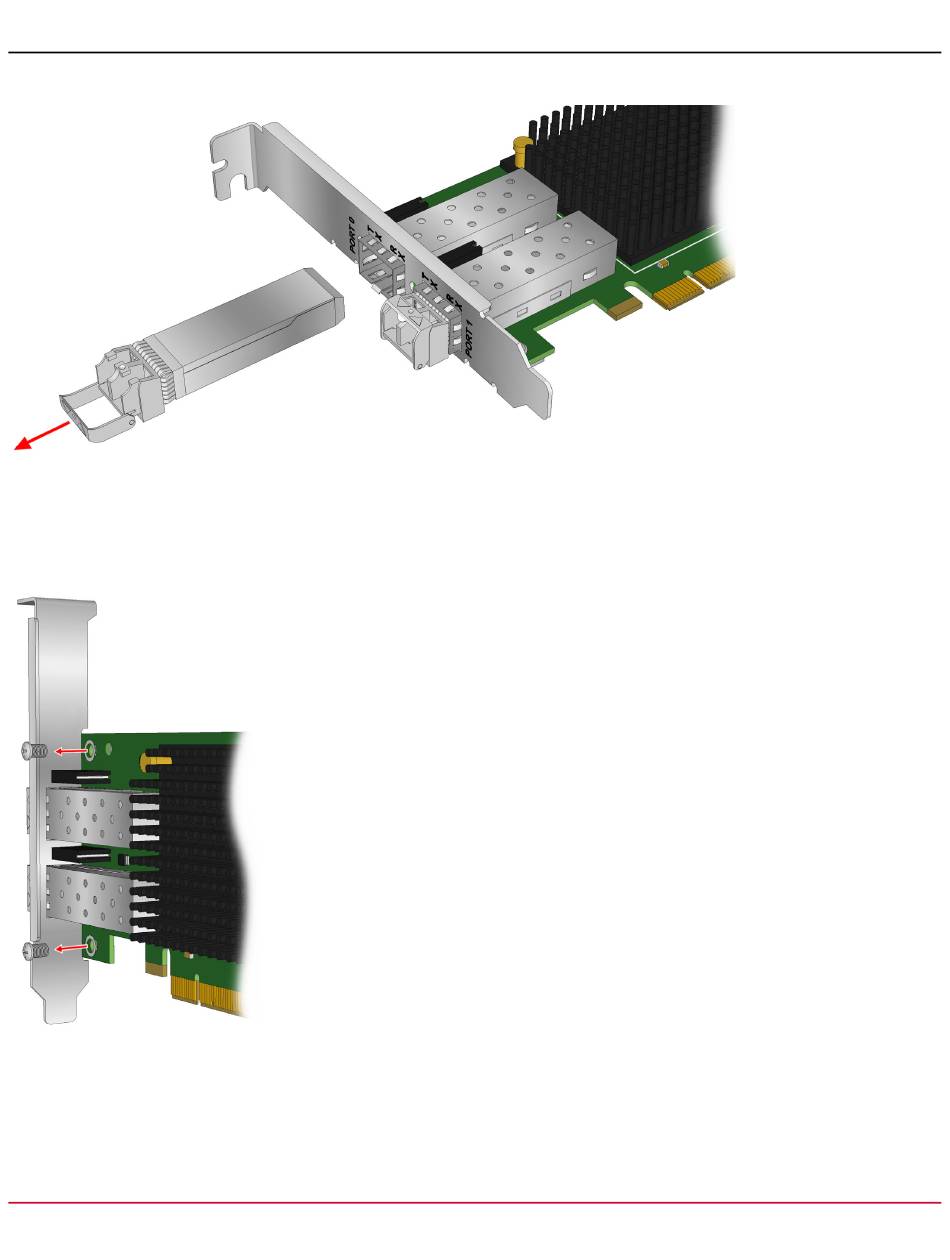

Figure 3: Removing an Optical Transceiver
2. Observing ESD precautions, store the transceiver in an ESD-safe place.
3. Remove the mounting bracket screws and washers from the top of the HBA.
from the mounting bracket.
Figure 4: Removing the Mounting Bracket
4. Remove the mounting bracket, and store it for future use.
5. Align the new mounting bracket tabs with the holes in the HBA.
CAUTION! Be careful not to push the mounting bracket past the grounding tabs on the transceiver housing. Make sure the
LEDs are properly aligned with the holes in the mounting bracket.
Broadcom
Figure 4 shows the screws that are removed
