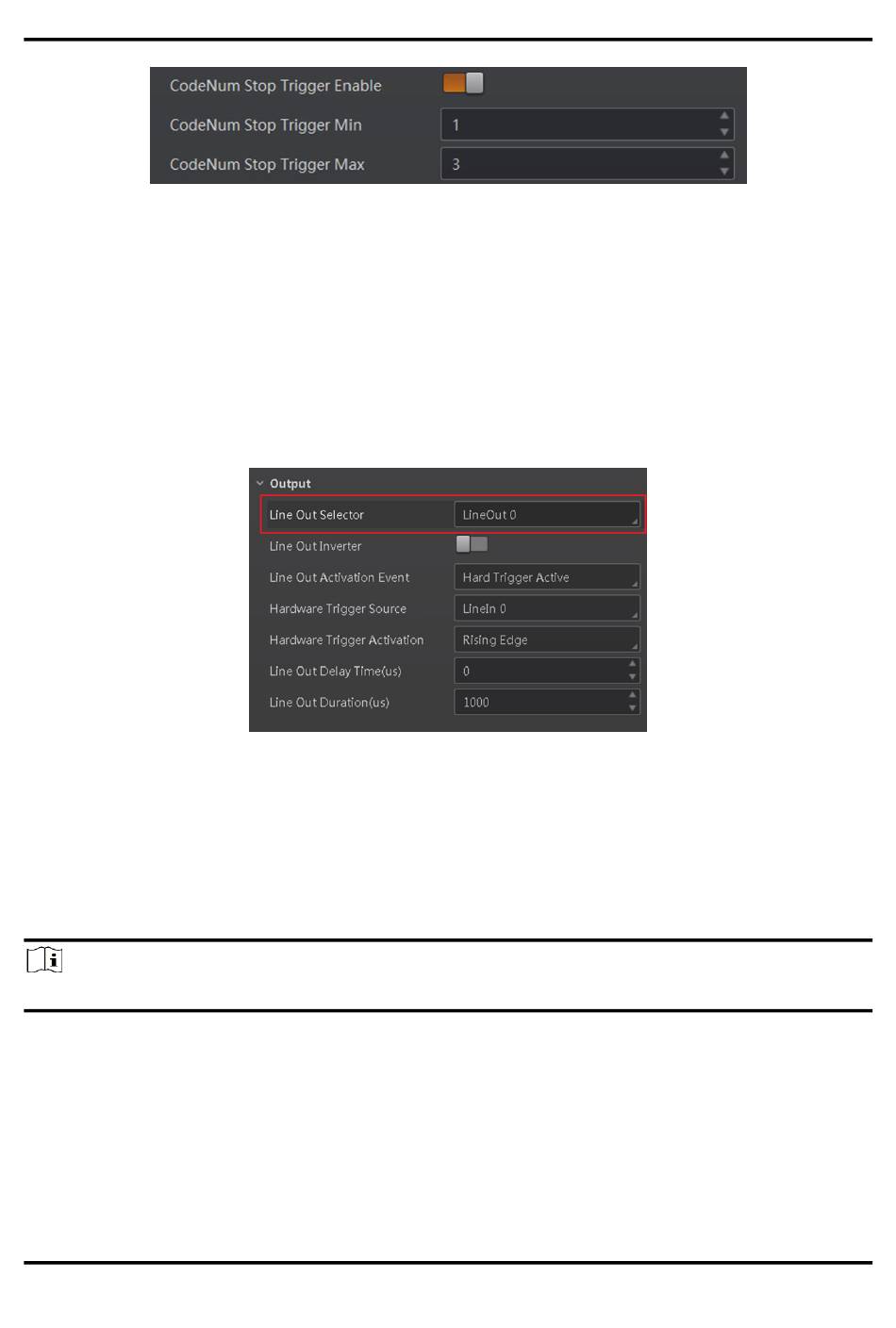

Figure 7-23 Stop Trigger via Max. Code Number

7.6 Signal Output Settings

7.6.1 Select Output Signal

The device has 3 outline lines (LineOut 0, LineOut 1, LineOut 2) that can be used as output signal.
Click I/O Control Settings → Output → Line Out Selector to select output signal.
Figure 7-24 Select Output Signal

7.6.2 Enable Line Inverter

The level inverter function allows the camera to invert the electrical signal level of an I/O line, and
meets requirements of different devices for high or low electrical signal level.
You can go to I/O Control Settings → Output → Line Out Inverterto enable it.
Note
The Line Out Inverter function is disabled by default.
