ID6000 Series Smart Code Reader User Manual

3.3 Input Signal Wiring

The device can receive external input signal via I/O interface, and here we take LineIn 0 as an
example to introduce input signal wiring.
Note
Input signal wiring may differ with different types of external devices.
PNP Device

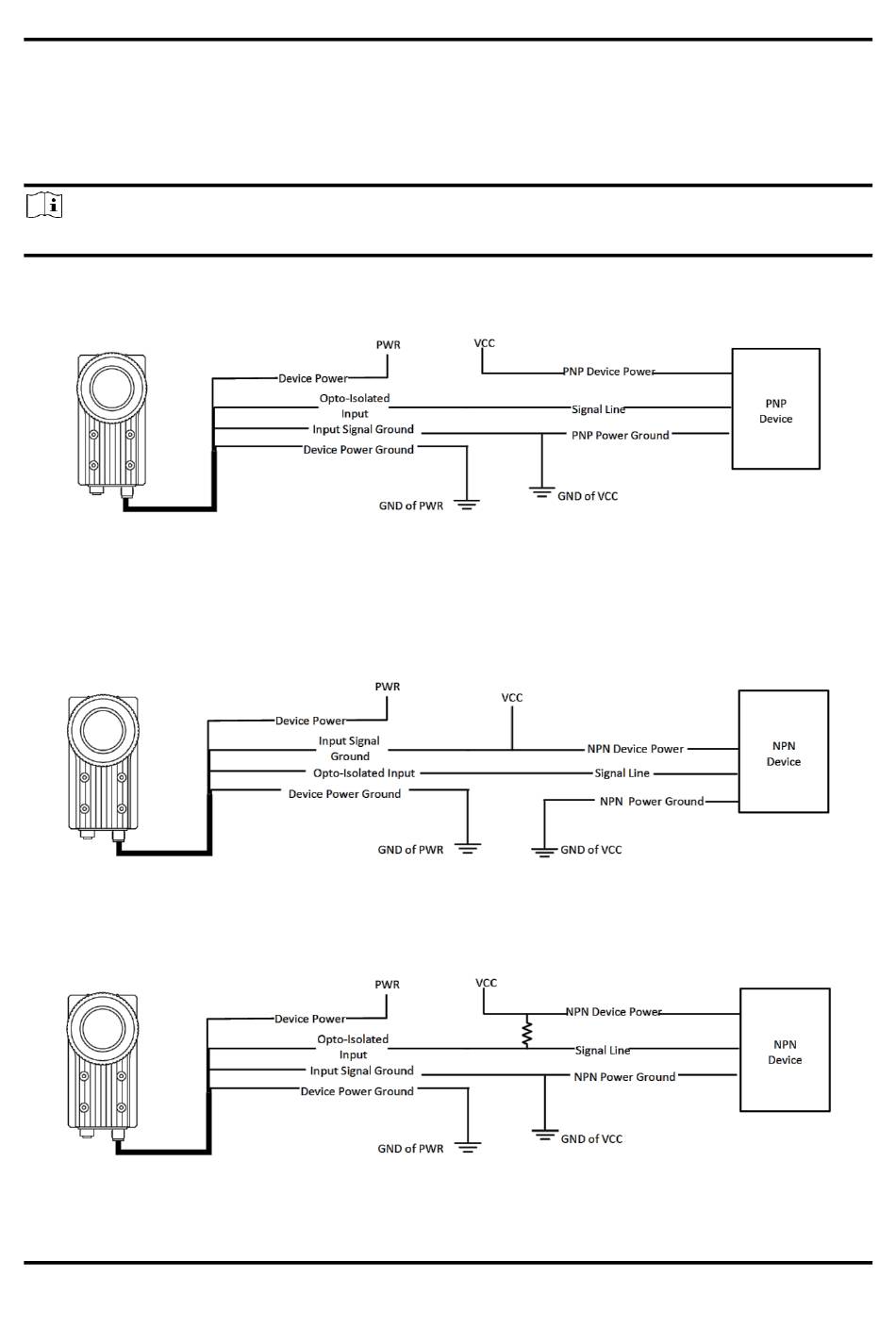

Figure 3-3 Input Signal Connecting to PNP Device
NPN Device
If the VCC of NPN device is 12 VDC or 24 VDC and pull-up resistor is not used, its wiring is as
follows.
Figure 3-4 Input Signal Connecting to NPN Device without Pull-Up Resistor
If the VCC of NPN device is 12 VDC or 24 VDC and 1 KΩ pull-up resistor is used, its wiring is as
follows.
Figure 3-5 Input Signal Connecting to NPN Device with Pull-Up Resistor
