ID6000 Series Smart Code Reader User Manual

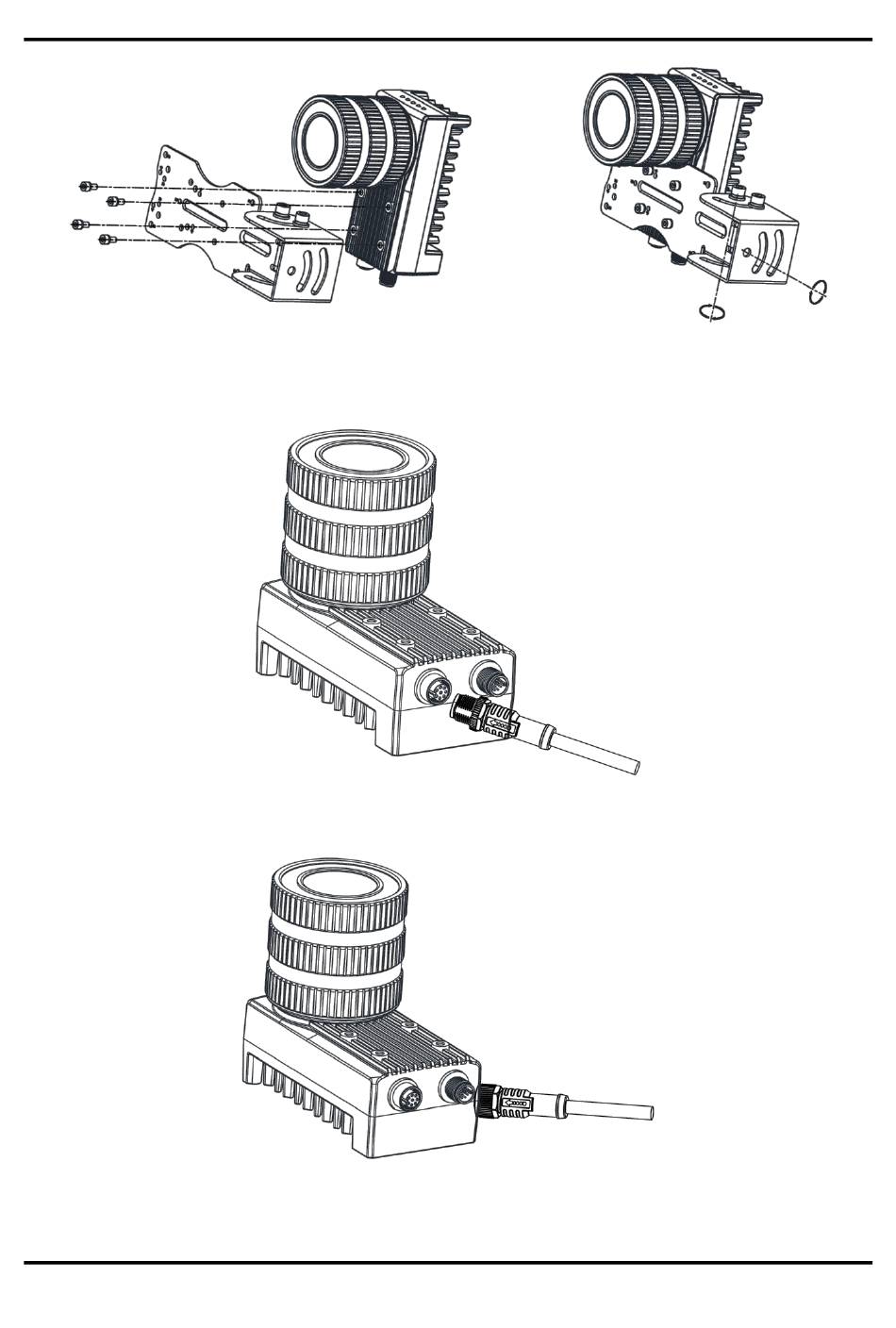

Figure 4-3 Side Installation
2. Use GigE network cable with RJ45 aviation connector to connect the device to a switch or a
network interface card.
Figure 4-4 Gigabit Ethernet Interface Wiring
3. Use power and I/O cable to connect the device to a DC switch power supply.
Figure 4-5 Power and I/O Wiring
