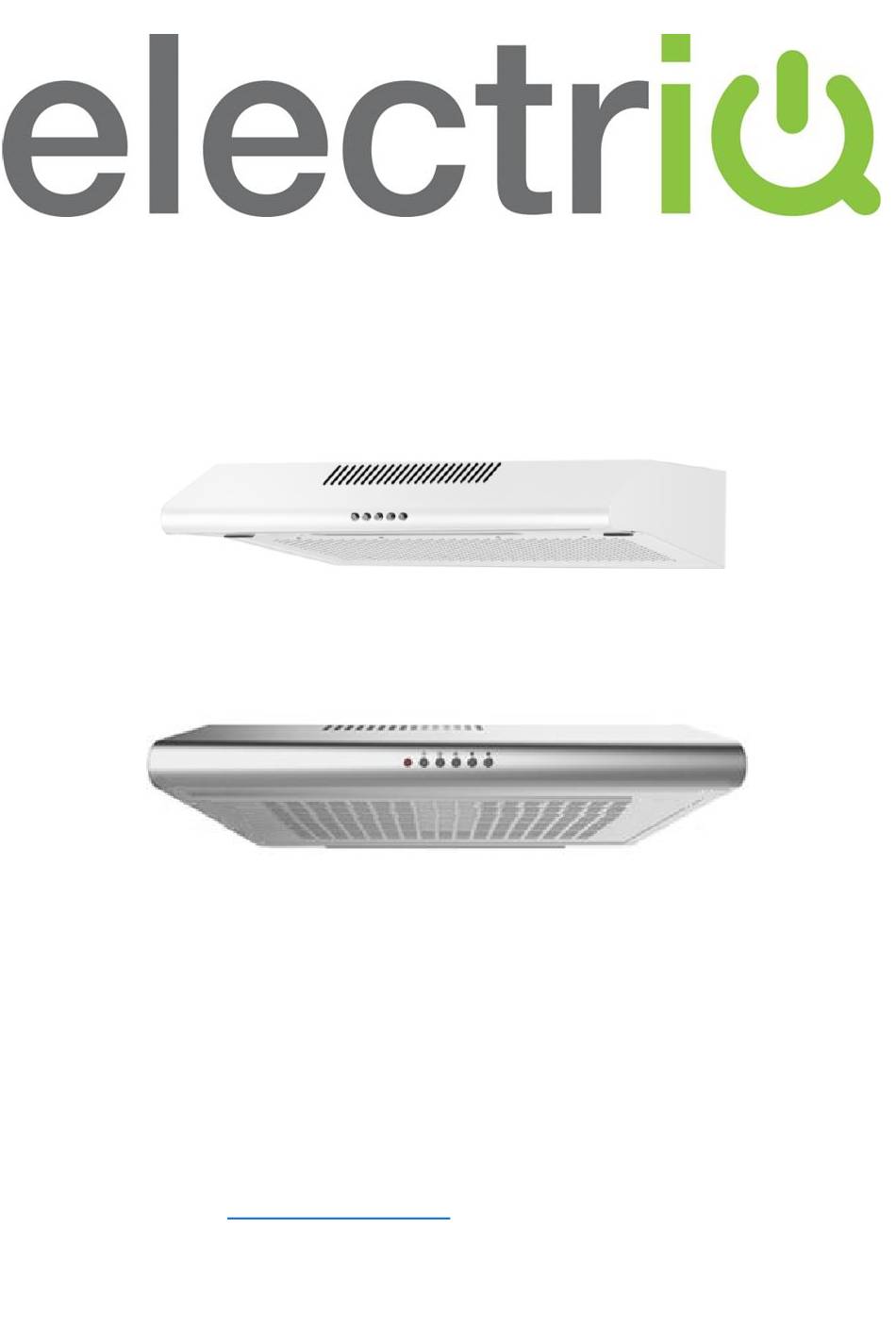

- Page 1 INSTALLATION AND USER MANUAL COOKER HOOD eiQTOPVWHITE eiQTOPVBLACK eiQTOPVSTEEL Please read this manual before using or installing the cooker hood and keep it safe for future reference. Visit our page www.electriQ.co.uk for our entire range of electricals...
-
Page 2: Table Of Contents
CONTENTS IMPORTANT SAFETY INFORMATION PARTS INSTALLATION CHANGING THE VENTILATION METHOD PREPARING FOR INSTALLATION CUPBOARD MOUNTING INSTALLATION WALL MOUNTING INSTALLATION OPERATION REPLACING THE BULB INSTALLING THE OPTIONAL CARBON FILTER CLEANING AND MAINTENANCE TROUBLESHOOTING SPECIFICATION MANUFACTURER SUPPORT... -
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION Please read this instruction manual carefully and retain for future reference. It contains important information concerning the safe operation, installation and maintenance of the appliance. • There must be adequate ventilation of the room when the hood is used at the same time as appliances burning gas or other fuels. - Page 4 • Children must not play with the appliance. • Cleaning and user maintenance must not be carried out by children without supervision. • When the hood is being maintained, cleaned or filters changed, make sure it is switched off at the mains supply. •...
-
Page 5: Parts
PARTS THE COOKER HOOD 1. Main Body 5. Screws 5mm x49mm 2. Venting Control 6. Wall Plugs 3. Filter Assembly 4. V-Flap DIMENSIONS... -
Page 6: Installation
INSTALLATION BEFORE INSTALLING YOUR CANOPY HOOD: • Please read the instructions carefully. • Unpack the hood and check that all functions are working. Ensure that the voltage (V) and the frequency (Hz) indicated on the serial plate match the voltage and frequency at the installation site. -
Page 7: Preparing For Installation
INFORMATION • Sufficient air is needed for proper combustion and exhaustion of gases through the flue (chimney) of fuel burning equipment to prevent back drafting. Ductless fans must always be vented to the outdoors. • When assessing the air pressure, the entire ventilation system in the house/apartment must be taken into account. -
Page 8: Cupboard Mounting Installation
CUPBOARD MOUNTING INSTALLATION: 1. Drill a 130mm diameter and four 3.5mm diameter holes as shown in the diagram. NOTE: If your cooker hood is to be used in recirculating air mode, it is not necessary to cut the 130mm diameter hole. 2. -
Page 9: Wall Mounting Installation
WALL MOUNTING INSTALLATION: Drill two 10mm diameter holes in the correct position on the wall when compared to the hanging holes on the rear of the hood. Make sure the hood is aligned directly over the hob, a minimum of 65cm above the hob surface. -
Page 10: Operation
OPERATION MOTOR OFF BUTTON: Press on this switch to stop operation of the motor. LOW SPEED BUTTON: Press to run the motor at LOW speed. MEDIUM SPEED BUTTON: Press to run the motor at MEDIUM speed. HIGH SPEED BUTTON: Press to run the motor at HIGH speed. LIGHT ON/OFF BUTTON: Press to turn on the lights, press again to turn them off. -
Page 11: Replacing The Bulb
REPLACING THE BULB 1. Switch off the extractor hood and ensure it is also switched off at the mains supply. 2. Remove the grease filter. 3. Unclip the lamp holder using the spring clip on the rear of the holder. 4. -
Page 12: Cleaning And Maintenance
CLEANING AND MAINTENANCE Disconnect range hood from power supply before cleaning or servicing. 1. Clean the hood surface frequently using mild detergent and a warm damp sponge or cloth. 2. Do not use harsh alkalis or abrasives. 3. Avoid the use of scouring powers or dishwasher compounds. 4. -
Page 13: Troubleshooting
TROUBLESHOOTING Fault Cause Solution The fan blade is Light on, but Switch off the unit. Repair to jammed. fan does not be carried out by qualified The motor is work service personnel only. damaged. Both light Power cord loose Plug in to the power supply and fan do again. -
Page 14: Specification
SPECIFICATION Model Identification eiQTOPVWHITE eiQTOPVBLACK eiQTOPVSTEEL Symbol Value Unit Annual Energy Consumption AEChood 41.6 kWh/A Standard Annual Energy SAEChood 52.1 kWh/a Consumption Time increase factor Fluid Dynamic Efficiency FDEhood Energy Efficiency Index EEIhood 79.8 Measured air flow rate at best QBEP 103.9... -
Page 15: Manufacturer Support
UK SUPPORT www.electriQ.co.uk/support Call: 0871 984 4416 Office hours: 9AM - 5PM Monday to Friday www.electriQ.co.uk Unit J6, Lowfields Business Park Lowfields Way, Elland West Yorkshire, HX5 9DA Recycling facilities are now available for all customers at which you can deposit your old electrical products.
