Replaceable parts
TIG 17, TIG 26
9
Replaceable parts
The manufacturer's warranty becomes void if non-genuine parts are used!
•
Only use system components and options (power sources, welding torches, electrode hold-
ers, remote controls, spare parts and replacement parts, etc.) from our range of products!
•
Only insert and lock accessory components into the relevant connection socket when the ma-
chine is switched off.
9.1
TIG 17, TIG 26

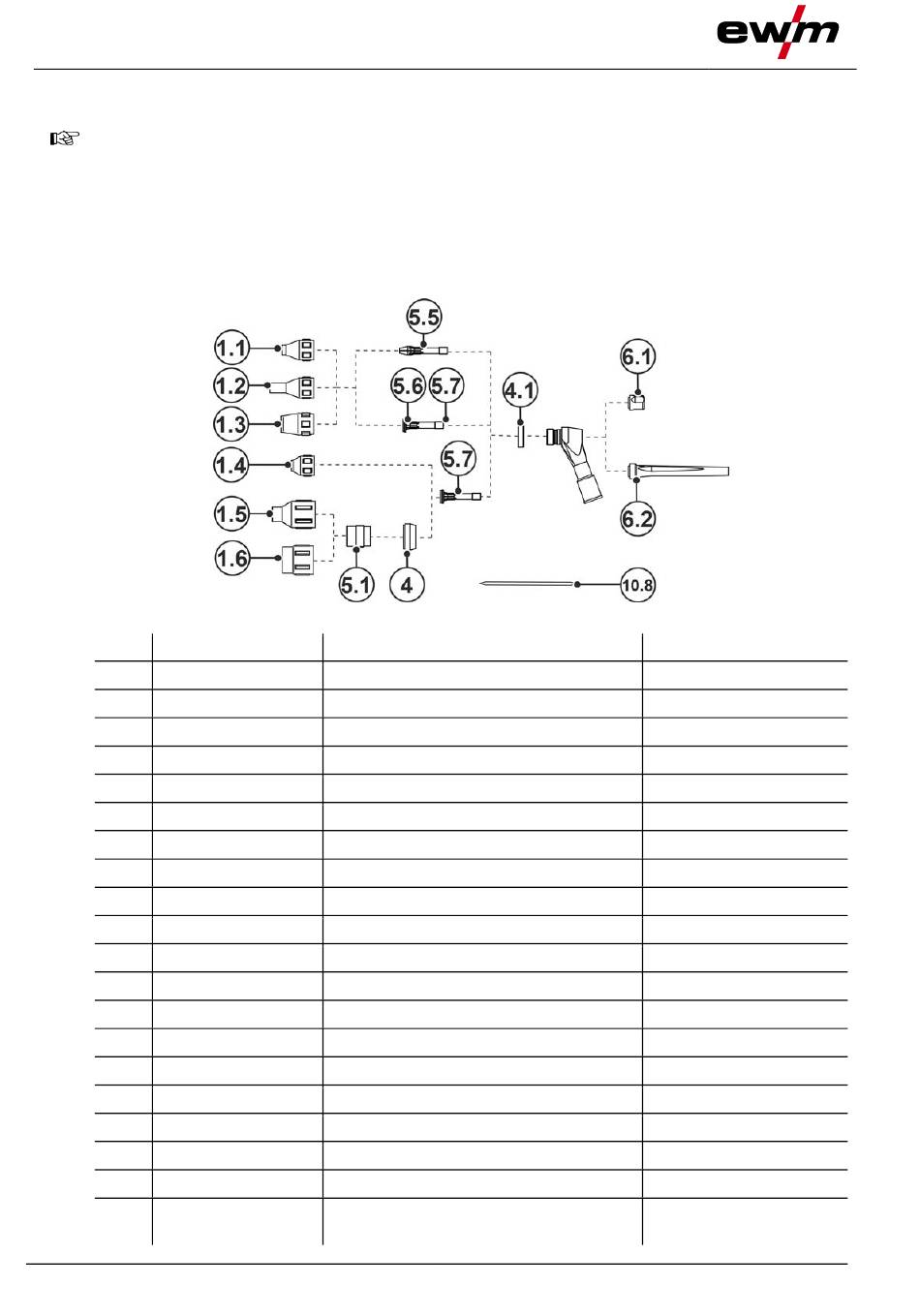

The welding torch shown is an example only. Depending on the type used, torches may vary.
Item
Order number
1.1
094-000926-00000
1.1
094-000927-00000
1.1
094-000929-00000
1.1
094-001316-00000
1.1
094-001317-00000
1.1
094-001318-00000
1.1
094-001319-00000
1.2
094-012691-00000
1.2
094-012692-00000
1.2
094-012693-00000
1.3
094-001195-00000
1.3
094-001196-00000
1.3
094-001320-00000
1.3
094-001321-00000
1.3
094-001322-00000
1.3
094-001323-00000
1.4
094-011135-00000
1.4
094-011136-00000
1.4
094-012694-00000
1.6
094-003136-00000
28
Figure 9-1
Type
GN GD TIG 17/18/26 8.0x47.0mm
GN GD TIG 17/18/26 11x47mm
GN GD TIG 17/18/26 12.5x47mm
GN GD TIG 17/18/26 6.5x47mm
GN GD TIG 17/18/26 9.5x47mm
GN GD TIG 17/18/26 16x47mm
GN GD TIG 17/18/26 19.5x50mm
GN TIG 17/18/26 8.0x76mm
GN TIG 17/18/26 9.5x76mm
GN TIG 17/18/26 11.0x76mm
GNDIF TIG 17/18/26/18SC 11x47mm
GNDIF TIG 17/18/26/18SC 12.5x47mm
GNDIF TIG 17/18/26/18SC 6.5x42mm
GNDIF TIG 17/18/26/18SC 8x42mm
GNDIF TIG 17/18/26/18SC 9.5x42mm
GNDIF TIG 17/18/26/18SC 16x42mm
GNDIF TIG 17/18/26/18SC 8.0x76.0mm
GNDIF TIG 17/18/26/18SC 9.5x76.0mm
GNDIF TIG 17/18/26/18SC 11.0x76.0mm
GNDIFJ TIG 9/17/18/20/26 19.5x48.0mm
Designation
Gas nozzle
Gas nozzle
Gas nozzle
Gas nozzle
Gas nozzle
Gas nozzle
Gas nozzle
Gas nozzle
Gas nozzle
Gas nozzle
Gas nozzle for gas lens
Gas nozzle for gas lens
Gas nozzle for gas lens
Gas nozzle for gas lens
Gas nozzle for gas lens
Gas nozzle for gas lens
Gas nozzle for gas lens
Gas nozzle for gas lens
Gas nozzle for gas lens
Ceramic gas nozzle for gas
lens, JUMBO
099-011623-EW501
09.08.2021
