Replaceable parts

TIG 200

Item Order number
10.08 094-021498-00000
10.08 094-021499-00000
10.08 094-021500-00000
10.08 094-021501-00000
9.3 TIG 200

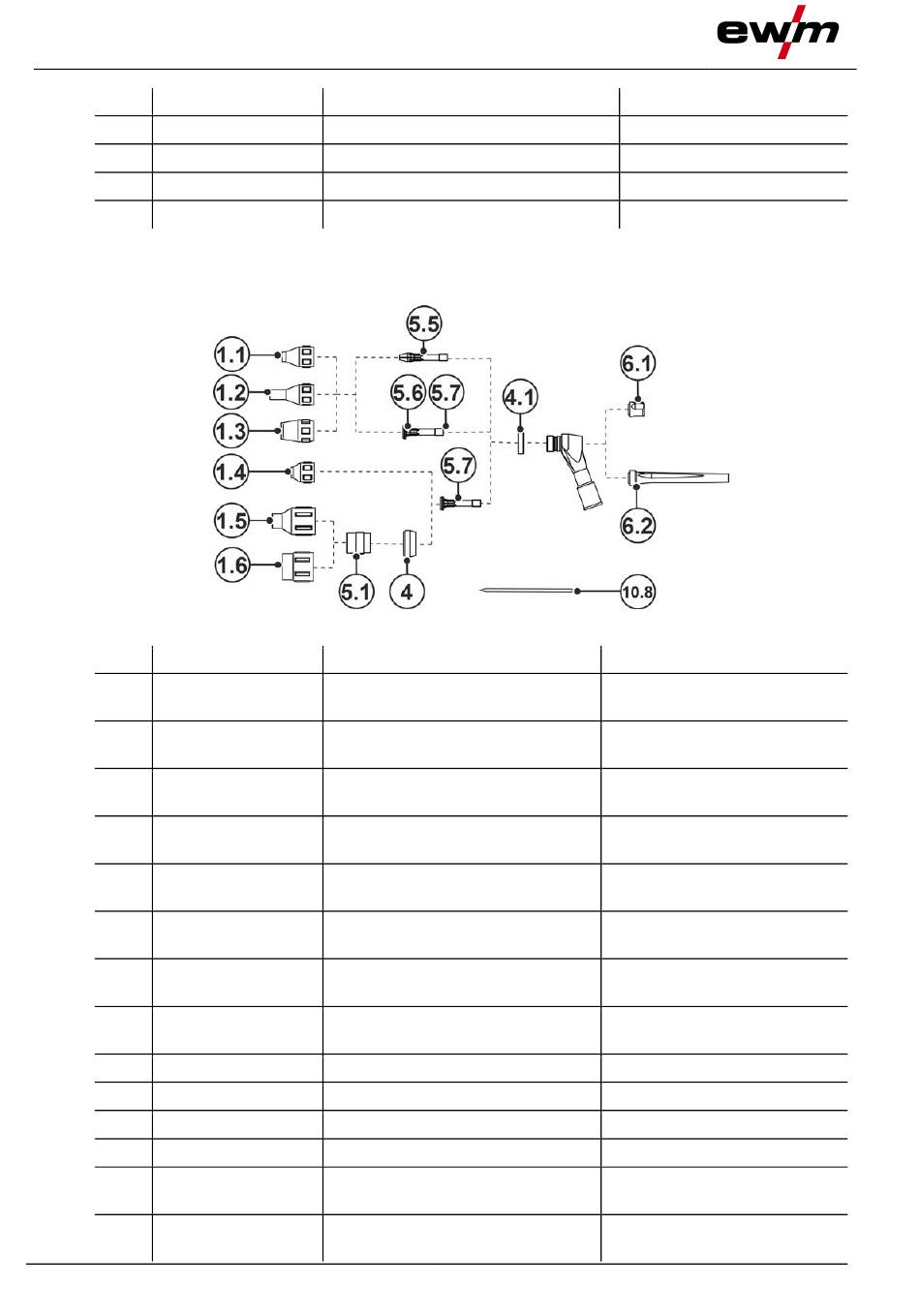

The welding torch shown is an example only. Depending on the type used, torches may vary.
Item Order number
1.1 094-009646-00000
1.1 094-009647-00000
1.1 094-009648-00000
1.1 094-009649-00000
1.2 094-009650-00000
1.2 094-009651-00000
1.2 094-009653-00000
1.2 094-009654-00000
1.3 094-011997-00000
1.3 094-011998-00000
1.4 094-009655-00000
1.4 094-009656-00000
1.5 094-009663-00000
1.5 094-009664-00000
34
Type
Lymox Lux Ø2.4 x 175 mm
Lymox Lux Ø3.2 x 175 mm
Lymox Lux Ø4.0 x 175 mm
Lymox Lux Ø4.8 x 175 mm
Figure 9-3
Type
GN TIG 200/450/450SC, 7,5 x 37,4
mm
GN TIG 200/450/450SC, 10 x 37,4
mm
GN TIG 200/450/450SC, 13 x 37,4
mm
GN TIG 200/450/450SC, 15 x 37,4
mm
GN TIG 200/450/450SC, 7,5 x 51,5
mm
GN TIG 200/450/450SC, 10 x 51,5
mm
GN TIG 200/450/450SC, 13 x 51,5
mm
GN TIG 200/450/450SC, 15 x 51,5
mm
GN TIG 200/450 13.0x37mm RF
GN TIG 200/450 15.0x37mm RF
GN TIG 200/450 S 10.0x26mm
GN TIG 200/450 S 13.0x26mm
GN DIF TIG 150-450/450SC, 12,5 x
50 mm
GN DIF TIG 150-450/450SC, 16 x 50
mm
Designation
Tungsten electrode, pink/grey
Tungsten electrode, pink/grey
Tungsten electrode, pink/grey
Tungsten electrode, pink/grey
Designation
Gas nozzle
Gas nozzle
Gas nozzle
Gas nozzle
Gas nozzle
Gas nozzle
Gas nozzle
Gas nozzle
Gas nozzle, reinforced
Gas nozzle, reinforced
Gas nozzle for gas diffuser
Gas nozzle for gas diffuser
Gas nozzle for gas diffuser,
JUMBO
Gas nozzle for gas diffuser,
JUMBO
