5.4

Equipping the welding torch

5.4.1

TIG 17, 26

Equipping the torch using the example of the TIG 17 torch. Procedure is similar for other models
as appropriate.
Item Symbol
1
2
3
4
5
6
• Insert the collet from above into the collet body.
• Use the tool to screw the collet body with collet into the torch head from below.
• Screw in the gas nozzle by hand.
• Insert the electrode with the pointed side from above into the welding torch and position it.
• Tighten the back cap by hand.
099-011623-EW501
09.08.2021
Description 0
Collet
Collet casing
Torch body
Gas nozzle
Electrode
Back cap
Design and function

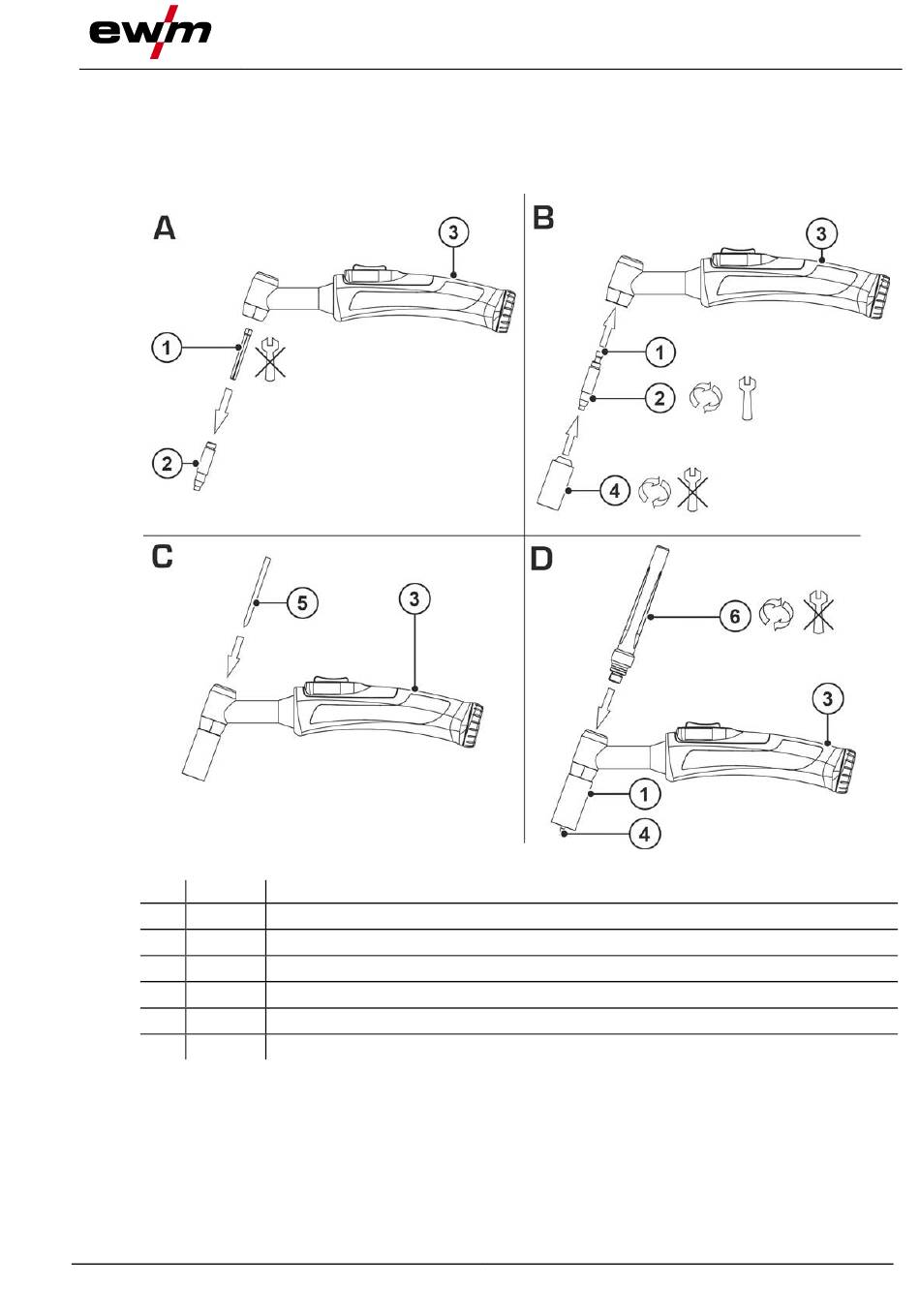

Figure 5-1
Equipping the welding torch
19
