5.5

Function specification

5.5.1

General

TIG torches are connected to the power source via the hose package. The following components are
guided through the hose package:
• welding current lead
• shielding gas supply
• control cable
In TIG welding, the welding consumable is usually added manually in form of a stick. With fully automatic
machines, the welding consumable is usually added as a wire by a separate wire feeder.
5.5.2

Operating elements

5.5.2.1

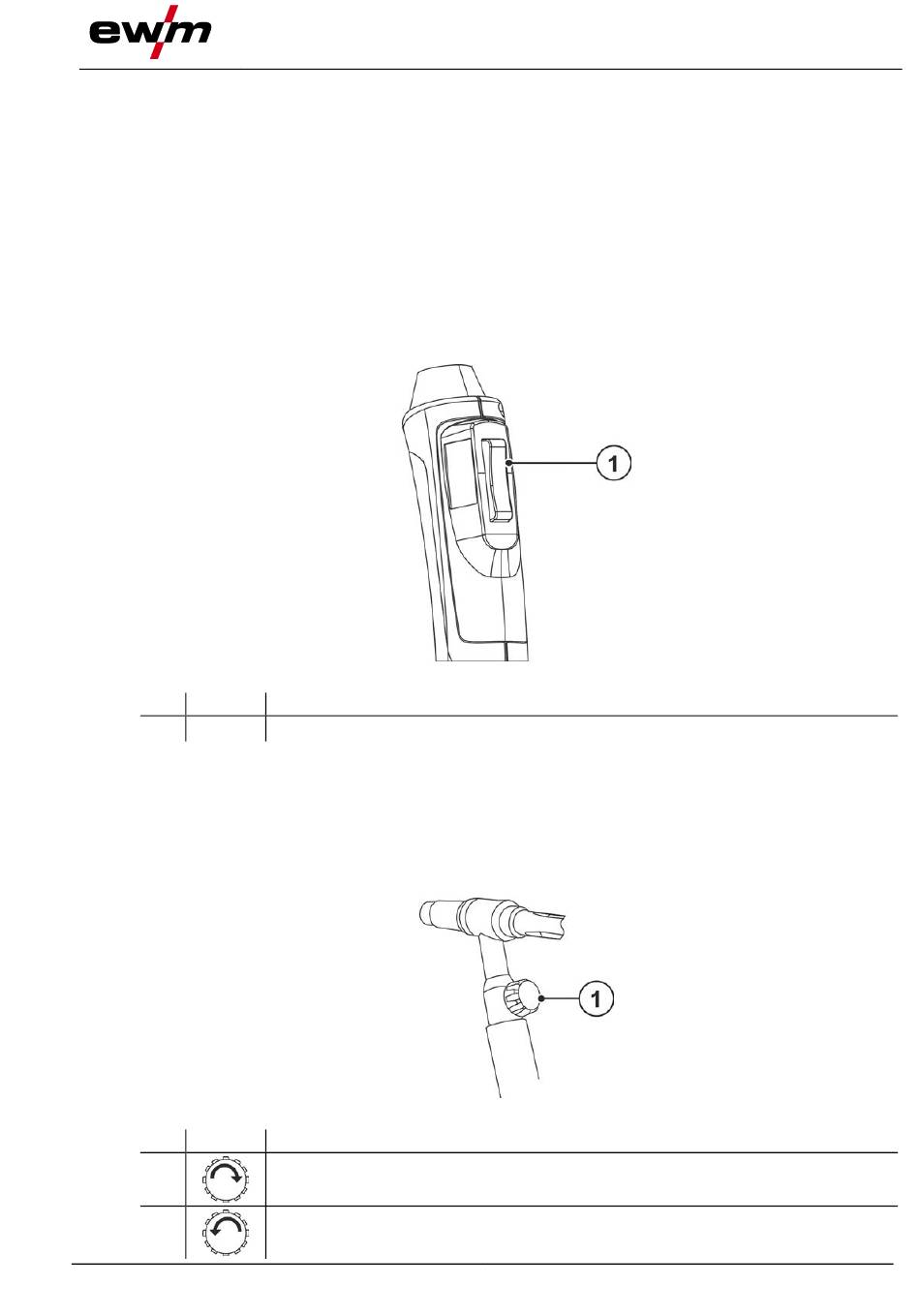

Standard TIG torch (5-pole)

Item Symbol
1
TIG torches are equipped with a torch trigger. This trigger is used to:
• switch the welding current on and off,
• reduce the current during welding to a secondary current by tapping it.
Tapping function: Swiftly tap the torch trigger to change the function. The set torch mode determines the
operating mode.
5.5.2.2

TIG GDV welding torch

Item Symbol
1
099-011623-EW501
09.08.2021
Description 0
Torch trigger
Description 0
Rotary gas valve
Close gas flow
Rotary gas valve
Open gas flow
Design and function
Figure 5-3
Figure 5-4
