Pre-Installation

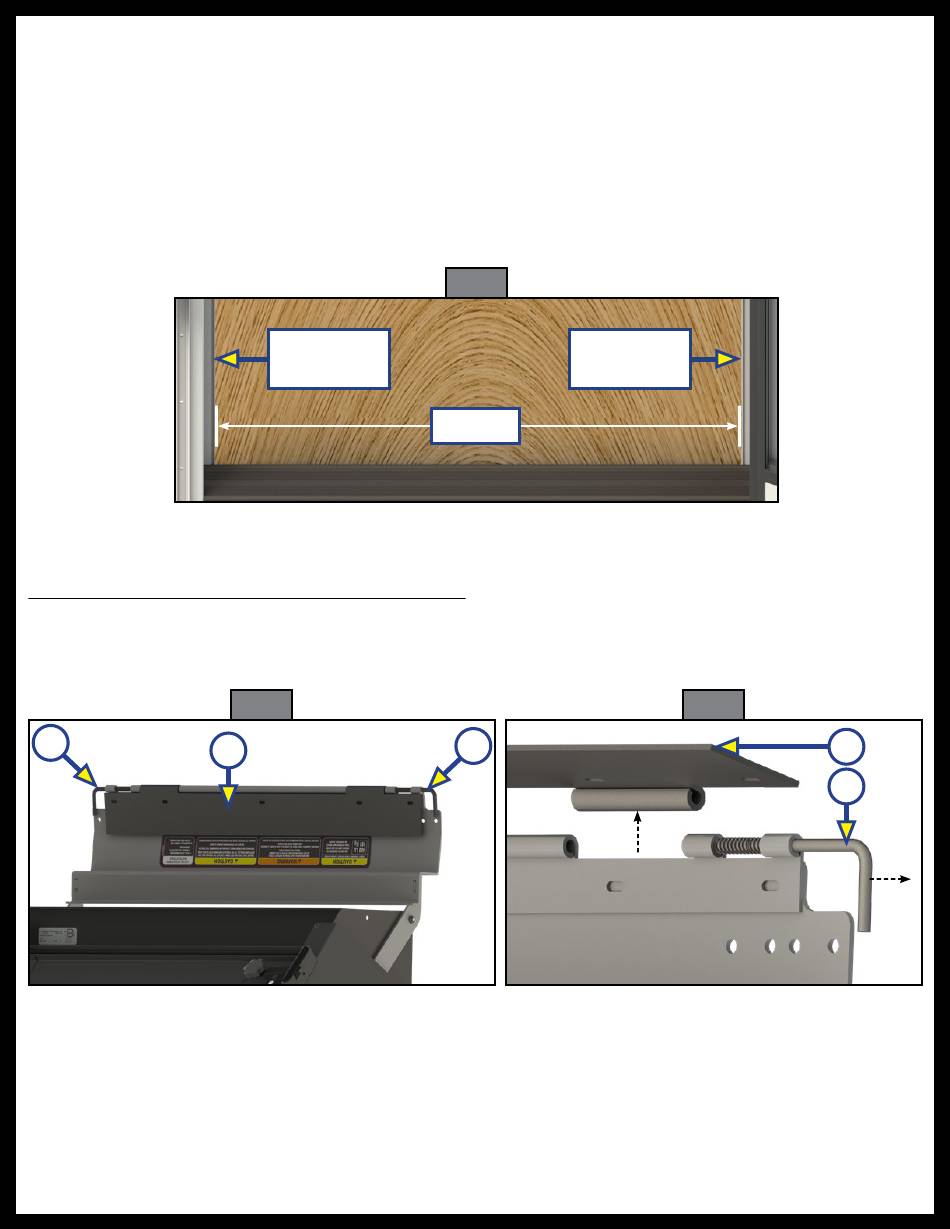

If the measurement of the door frame inner flange (Fig. 2) to opposite door frame inner flange is an even
number, i.e. 28, 30, 30 1/2, etc., center the threshold hinge plate (Fig. 3A) for installation. If the measurement
of the door frame inner flange to opposite door frame inner flange (Fig. 2) is an odd number, i.e. 27, 29,
29 1/4", etc., the threshold hinge plate (Fig. 3A) will be shifted 1" to the left from the center of the threshold
for installation. Record the measurement of the door frame inner flange to door frame inner flange for later
use in installation. The latches (Fig. 10A) on the step assembly will be preset and will additionally account
for any offset of the threshold hinge plate if the inner flange to inner flange measurement is an odd number.
Fine tune adjustments to the latches can be made once the threshold plate is installed and the steps
are attached.
Installation
Securing the SolidStep XF Threshold Hinge Plate
1.
Remove the threshold hinge plate (Fig. 3A and 4A) from the SolidStep XF by pulling both spring
loaded hinge pins (Fig. 3B and 4B) out far enough so that the threshold hinge plate separates
from the SolidStep XF.
B
Rev: 04.27.21
Door Frame
Inner Flange
Fig. 3
A
Fig. 2
Door Frame
Inner Flange
Measure
B
Page 4
Fig. 4
A
B
CCD-0004123
