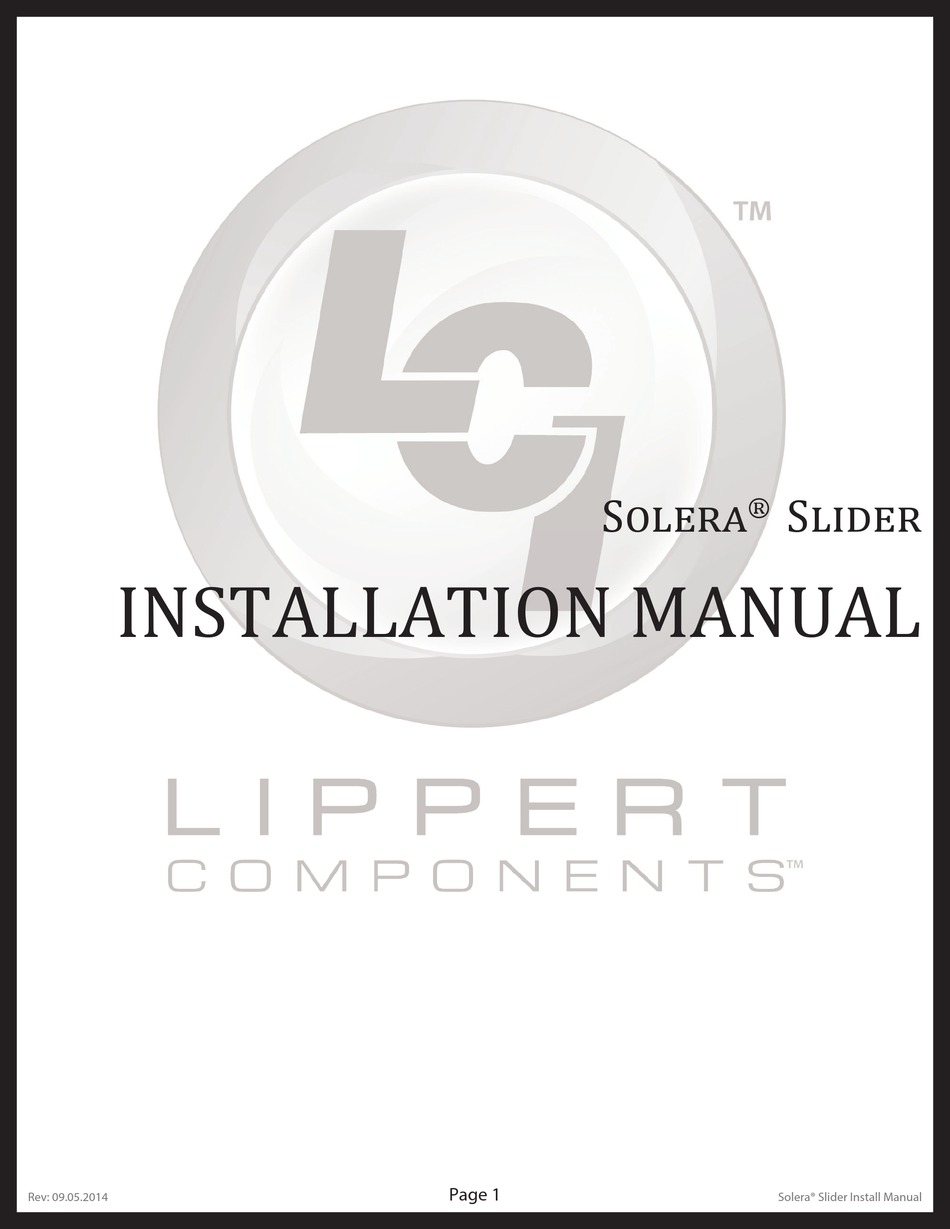

- Page 1 S����� S����� INSTALLATION MANUAL ® Page 1 Rev: 09.05.2014 Solera® Slider Install Manual...
- Page 2 56" to 188" in length and extend up to 58”. The hardware hole pattern is universal and will match most competitive brands, which alleviates the need to patch holes. NOTE: • The Solera Slider® kit comes complete with mounting hardware. • Awning cord rail not included. • All fabric is 5” shorter than the overall slider length.
- Page 3 Prior to Installation Tools Required: • Electric screw gun • 5/16" socket • Square drill bit • Butyl tape • Tape measure Additional Resources Required • One extra person Installation Apply butyl tape to the flat side of the cord rail (Fig. 1A). Place the cord rail parallel to, and centered above, the slide-out (Fig.
- Page 4 Slide hex rod into roll bar arm and align the screw holes (Fig. 3A). Slide end cap into other end of roll bar arm and align all three screw holes. Fasten using a pan head screw (Fig. 3B). Repeat Step 5 for other side. Apply butyl tape to bracket screw holes so that the butyl tape is against the coach when mounting bracket (Fig.
- Page 5 12. Feed one of the hex rods into a bracket. By pulling a hex rod all the way into the bracket, the other hex rod will fit into the other bracket (Fig. 6A). 13. Center the Solera® Slider using a tape measure. 14.
- Page 6 The contents of this manual are proprietary and copyright protected by Lippert Components, Inc. (“LCI”). LCI prohibits the copying or dissemination of portions of this manual unless prior written consent from an authorized LCI representative has been provided. Any unauthorized use shall void any applicable warranty. ...
