Do not overtighten the bolts. Overtightening the bolts may damage the threads or cause the bolt
2.
Once the transport lock mechanism (Fig. 13A) and the transport latch flanges (Figs. 14B and 15B) are in
the correct position, tighten the bolts (Figs. 14A and 15A) with a 7/16" wrench or socket.
3.
Once the transport lock has been adjusted, test its functionality by shaking the step assembly
to simulate road vibration.
4.
Engage and disengage the transport lock (Fig. 14C) to ensure the transport latch flanges (Figs. 14B and 15B)
do not scrape against the door frame (Figs. 14D and 15C).

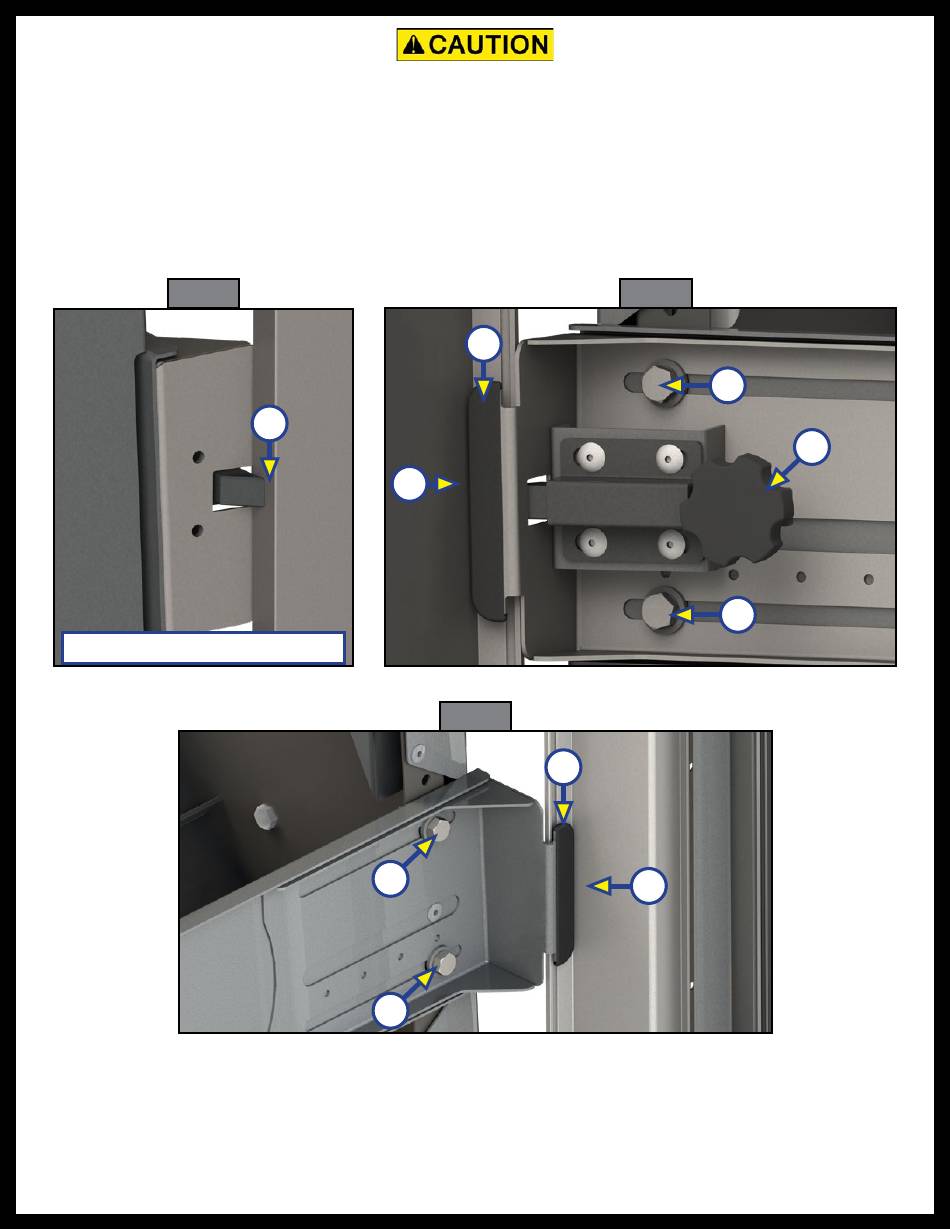

Fig. 13
Transport lock view from inside.
Rev: 04.27.21
heads to break off.
A
D
A
A
B
Fig. 15
B
Page 8
Fig. 14
A
C
A
C
