Preparation

Resources Required

• (4) 1/4" washer hd lag
screws
• (2) #8 x 1" phillips hd
screws
• Screw gun and drill
• #2 phillips screw bit
• 1 1/4" hole saw
• 1" wide butyl tape x 12" long

Installation

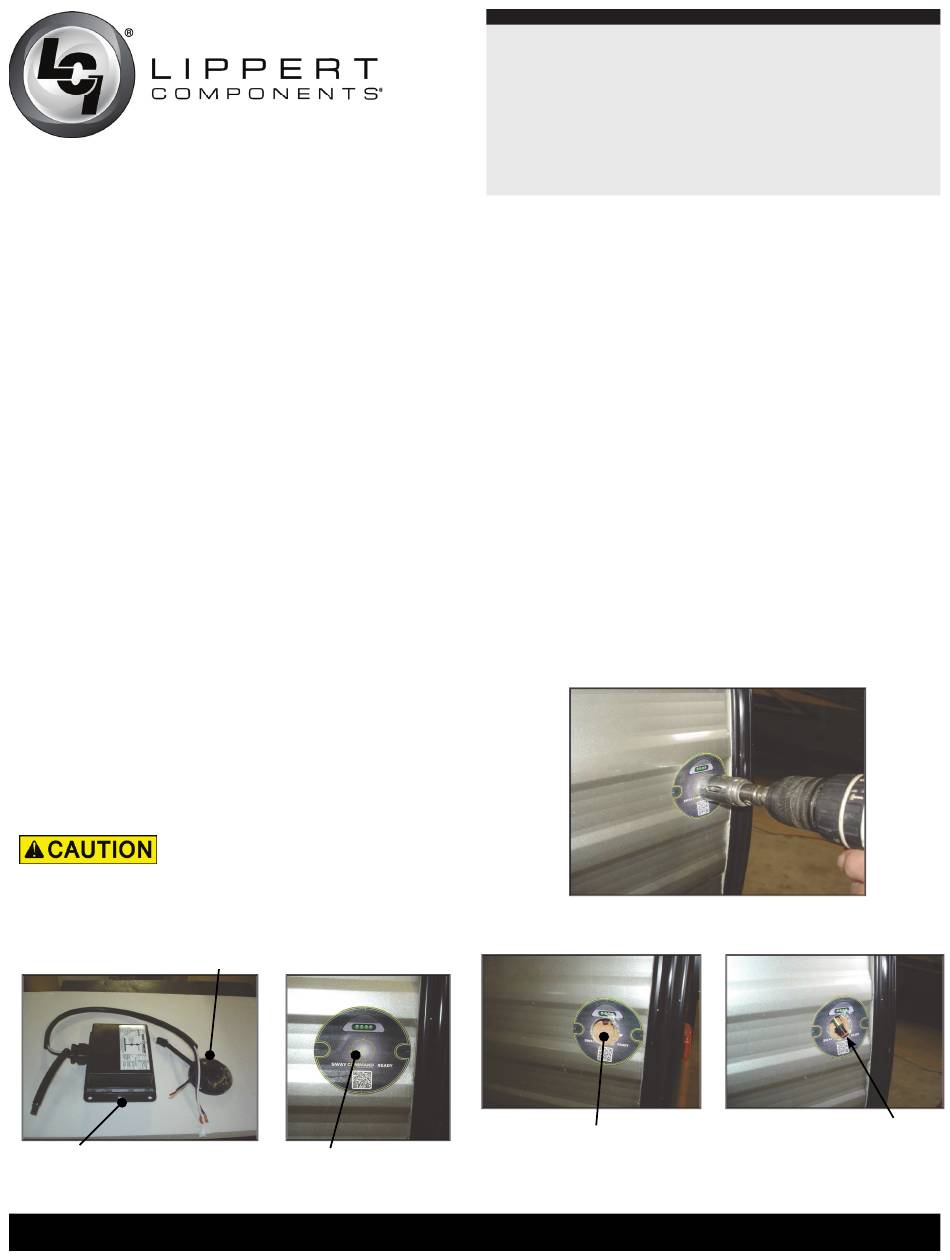

1. (Fig. 1) shows the Sway Command™ controller and the light
pod. Locate the Sway Command™ light pod sticker on the
front of the trailer (Fig. 2).
Note: The Sway Command™ controller will be referred to as
"the controller" for the remainder of these instructions.
2. The sticker (Fig. 2) identifi es the mounting location for the
light pod. A 1 1/4" hole will need to be drilled in this location.
Do not drill the hole completely
through the front wall: drill only
through the sheet metal/fi berglass
and the wood backer immediately
behind it.
Fig.1
Controller
www.lci1.com (574) 537-8900
• Wire Crimpers/Strippers
• 3/8" socket bit for screw gun
• 3/8" socket and ratchet
• Putty stick
• Hook tool or awl with bent
tip
• Red wire nut
• #10 10-12 GA Ring terminal
Light
Pod
Fig.2
Hole
Location
Rev: 02.16
Sway Command™ (Prepped Unit Only)
Aftermarket Install
Manual
3. Drill the 1 1/4" diameter hole using the center circle on the
sticker as your guide (Fig. 3).
4. (Fig. 4) shows the fi nished hole drilled only partially through
the wall. There is a wire and connector inside the front wall
that will be damaged by drilling too deep.
Note: If the coach has an outside storage door (on the
roadside sidewall) at the front of the trailer, look inside to
check for a wire harness with a connector for the light pod.
If there is a harness that connects to the light pod, when
the hole is drilled in Step 3 (Fig. 3), the hole needs to be
drilled completely through the front wall and into the storage
compartment.
5. Fish out the wire and connector inside the front wall (Fig. 5)
using a hooked tool (such as a bent awl) to reach up in the
wall.
Fig.3
Fig.4
Do NOT drill completely
through the front wall
3
Sway Command™ Prepped Unit Aftermarket Install Manual
Fig.5
Connector
