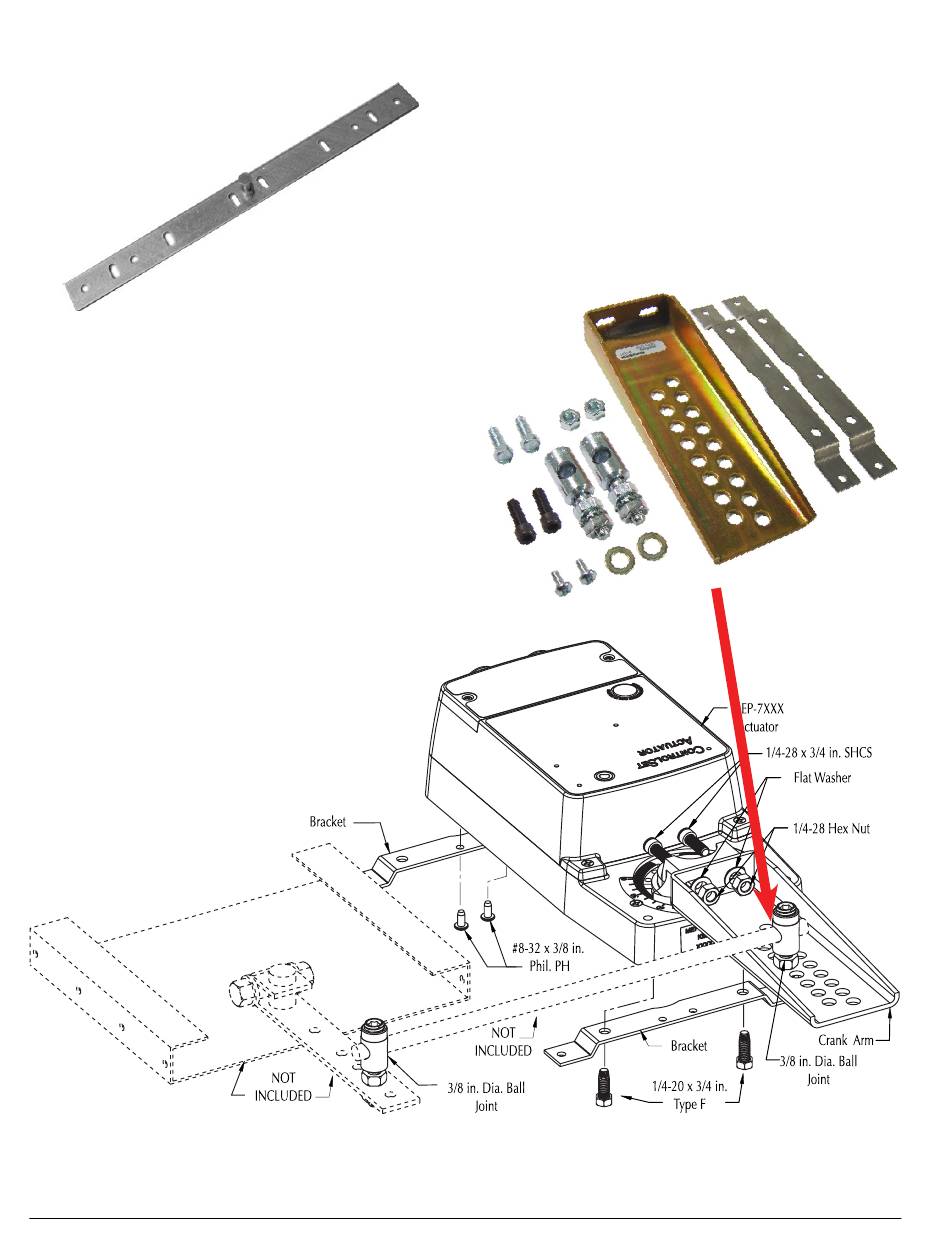

Mounting Brackets and Crank Arm Kit
One
HMO-4535
non-rotation bracket is provided
with each actuator. It can span an open distance, or
be formed (bent) into a shape that increases the dis-
tance between the mounting surface and the actua-
tor.
MEP-7xxx Direct-Coupled Actuators (up to 320 in-lb.)
The
HLO-1020
crank arm kit is used when direct
mounting of the actuator is impractical.
6
Applications Guide, AN1113A Rev. D
