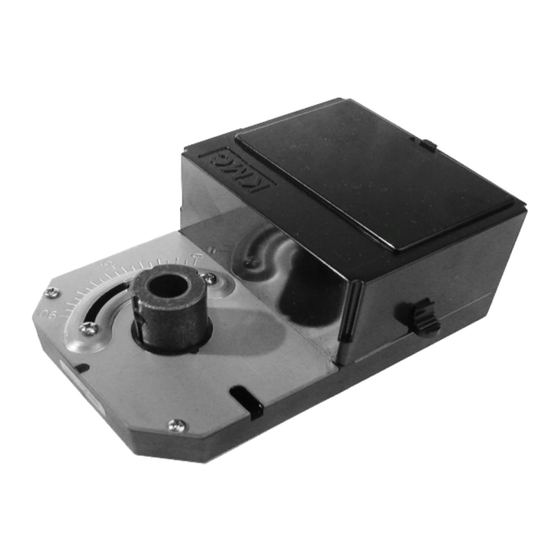

KMC Controls MEP-5062 Installation Manual

Mounting
1. Ensure that the damper can move freely through
its entire range of motion. Fix any binding before
installing the actuator. Turn the damper blade to
its fully closed position.
2. Determine the needed direction of rotation and
relative positions of damper and actuator. See the
Adjustments section on the next page.
2. Press and hold the gear disengagement button
(see the Front View illustration), rotate the
actuator to the fully closed position, and release
the lever.
NOTE: Depending on the damper-seal design,
backing the actuator off its stop
approximately 5° may provide tight
damper shut-off.
3. Align the actuator and slide it onto the standard
1/2" diameter (13 mm) damper or valve shaft.
(For a 3/8" shaft, see the HFO-0011 Shaft Adaptor
section on the next page.)
4. Insert the non-rotation bracket (HMO-1003,
supplied) into the slot at the base of the actuator
and secure the bracket with two (2) #8 or #10
self-tapping screws. (See the Front View and Side
View illustrations.)
5. Leaving a gap between the actuator and
mounting surface to prevent any binding, tighten
the two 5/16-18 setscrews.
Wiring
Connect wiring according to the diagram. See the
Accessories/Repair Parts section for connection
accessories.
Operate with Increasing Voltage
in Clockwise (CW) Direction
Operate with Increasing Voltage in
Counterclockwise (CCW) Direction

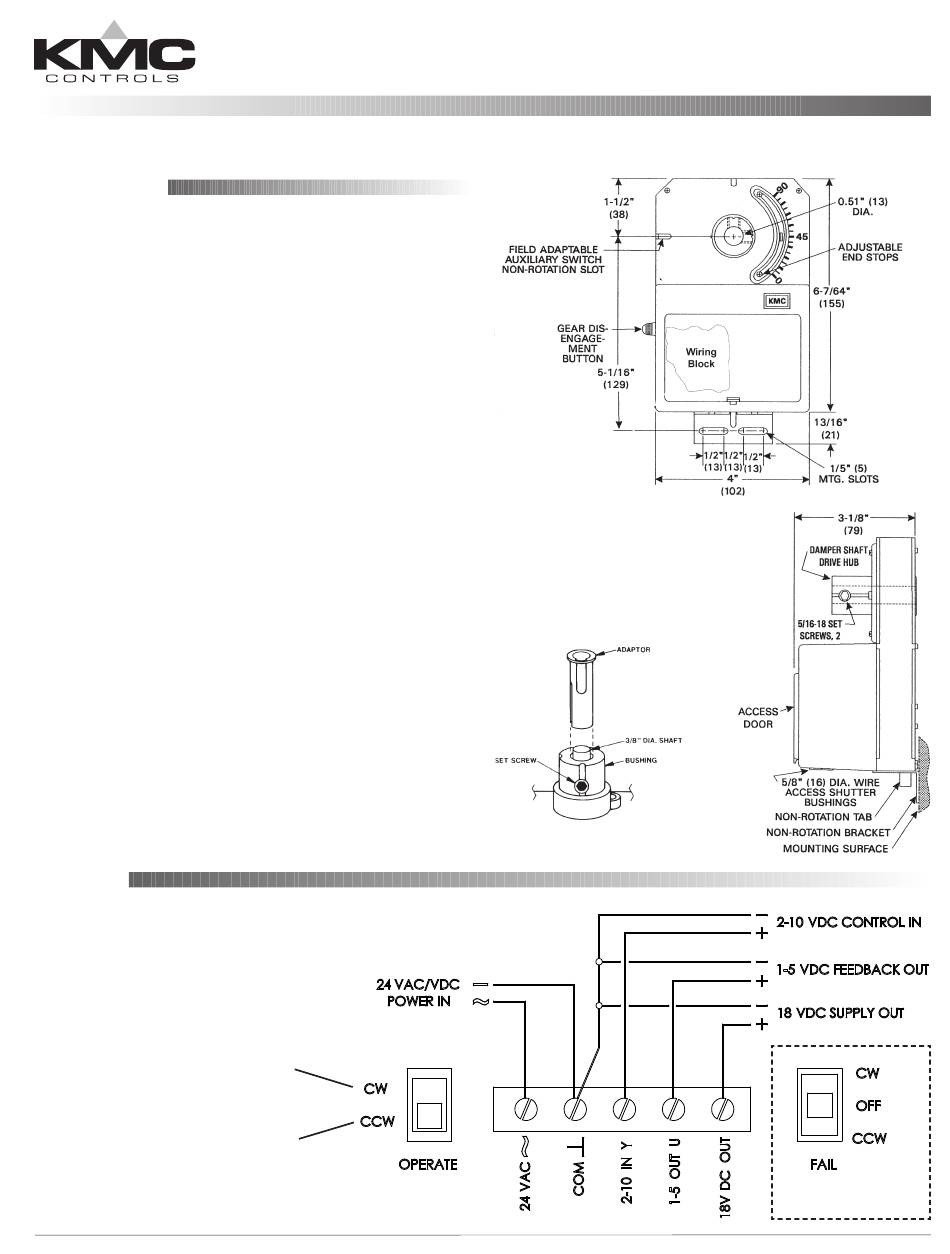

MEP-5062/5072/5372
Direct-Coupled, Proportional, ControlSet
Installation Guide
Front
View
HFO-0011 Shaft Adaptor
1
Actuators
®
MEP-5062/5072/5372
Side
View
Fail-Safe Direction
(on MEP-5372 Only)
Installation Guide
