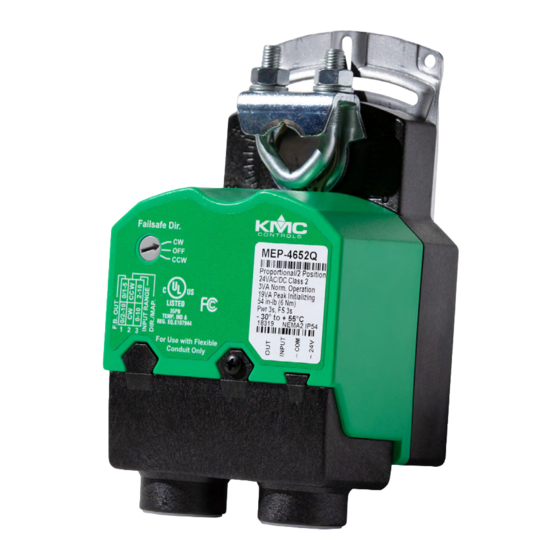

KMC Controls MEP-46 Q Series Quick Start Manual

KMC Controls MEP-46 Q Series Quick Start Manual

Quick-running (3-second) actuators (54 in-lb.)

Advertisement

Quick Links

DESCRIPTION AND APPLICATION
These compact but powerful direct-coupled ControlSet
actuators provide 90° rotation within three seconds. A
minimum torque of 54 in-lb. is available over the 95° angular
rotation. These actuators are designed for dampers or
valves in critical HVAC, laboratory fume hood, and life-safety
applications.
Efficient, durable, capacitor-driven fail-safe operation (in
MEP-4652Q/4672Q) with switch-selectable direction provides
consistent torque in both powered and fail-safe modes.
The actuators offer proportional or two-position control.
Two-position control mode is designed for use with on/off
switches, thermostats, or controller outputs.
Proportional control mode accepts either a 0–10 or 2–10 VDC
control signal input from a thermostat or controller. With an
external 500 ohm resistor, a 0–20 or 4–20 mA control signal
is also accepted. A switch-selectable, 0–5 or 0–10 (or 1–5
or 2–10) VDC voltage feedback output is proportional to the
actuator position and is standard on all models. "Anti-jitter"
circuitry significantly reduces hunting and needless wear
(from unnecessary miniscule position changes caused by
undamped analog input signals) on the actuator, valve, or
damper components. A user-initiated, auto-mapping feature
provides more precise equipment control by reassigning the
input signal range over a reduced rotation range. The feature
also provides "soft stall" protection (from stalling hard against
a physical stop) that extends actuator life.
MEP-4622Q and MEP-4672Q models also have two built-in
SPDT auxiliary switches for remote position indication or an
auxiliary equipment interface. One switch is fully adjustable (0
to 90°) and the other is fixed at 10° from full CW direction. A
three-foot cable is included with the switches.
All actuators mount directly to 1/4- to 5/8-inch (6 to 16
mm) round shafts or 1/4- to 7/16-inch (6 to 11 mm) square
shafts, eliminating the need for expensive and complicated
linkages. A non-rotation bracket, to prevent lateral movement,
is included with each actuator. A gear disengagement button
allows easy manual positioning of the actuator.
Quick-Running (3-Second) Actuators (54 in-lb.)
®
Specifications and design subject to change without notice

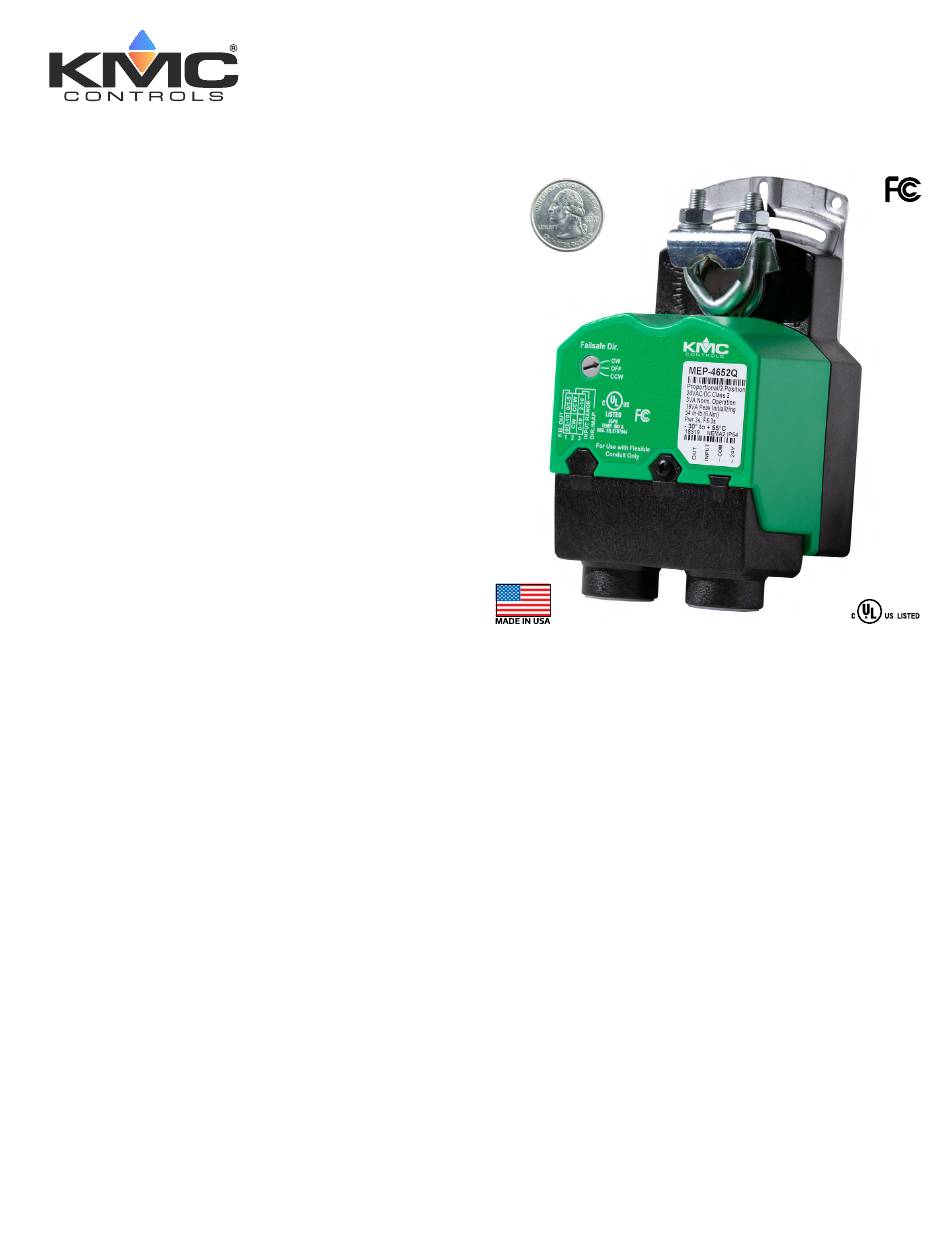

MEP-46xxQ Series
(Size Shown Relative
to a Quarter)
FEATURES
Brushless DC motor technology
Each model provides proportional or two-position control
90° rotation within three seconds (powered or optional
fail-safe)
54 in-lb. is available over the 95° angular rotation
Optional fail-safe (in MEP-4652Q and MEP-4672Q models)
The fail-safe option has switch-selectable direction and
can be turned off temporarily for testing purposes or
permanently if desired
Proportional mode includes "anti-jitter" circuitry
Auto-mapping of the full input-signal range over a reduced
actuator stroke provides a "soft stall" protection feature
that extends actuator life
Switch-selectable 0/1–5 or 0/2–10 VDC feedback is stan-
dard on all models
MEP-4622Q and MEP-4672Q models have one fully adjust-
able and one fixed built-in SPDT auxiliary switches
Direct mounting to standard shaft sizes, gear disengage-
ment button, and adjustable mechanical end stop
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the MEP-46 Q Series and is the answer not in the manual?

Questions and answers

Summary of Contents for KMC Controls MEP-46 Q Series

  • Page 1 MEP-46xxQ Series Quick-Running (3-Second) Actuators (54 in-lb.) DESCRIPTION AND APPLICATION These compact but powerful direct-coupled ControlSet ® actuators provide 90° rotation within three seconds. A minimum torque of 54 in-lb. is available over the 95° angular (Size Shown Relative rotation. These actuators are designed for dampers or to a Quarter) valves in critical HVAC, laboratory fume hood, and life-safety applications.
  • Page 2 MODELS AUXILIARY SPDT ELECTRICAL NON-ROTATION MODEL NUMBER FAIL SAFE SWITCHES* CONNECTIONS** BRACKET MEP-4602Q Terminals HMO-4002 MEP-4622Q Cables HMO-4001 MEP-4652Q Terminals HMO-4002 MEP-4672Q Cables HMO-4001 *One switch is fully adjustable (0 to 90°) and the other is fixed at 10° from full CW direction. **Connections are made on either fixed terminals that accept 12–26 AWG wiring or (on models with auxiliary switches) prewired 3-foot, 18 AWG cables.
  • Page 3 SPECIFICATIONS Gear Disengagement Lever Non-Rotation Bracket (HMO-4002) Mounting Surface 2-Postion Control Proportional Control Power Supply Feedback Out 24 VAC/VDC 0/1–5 or 0/2–10 Contact Position with Contact Position with #2 Switch set for CW: #2 Switch set for CCW: Open = CCW Rotation Open = CW Rotation Closed = CW Rotation Closed = CCW Rotation...
  • Page 4 Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. © 2018 KMC Controls, Inc.; KMC Controls and ControlSet are registered trademarks of KMC Controls 039-035-03B ®...
