Mounting
The MCP-1160 series actuator MUST be mounted on
a rigid surface due to the force generated at, or near,
maximum air pressure.

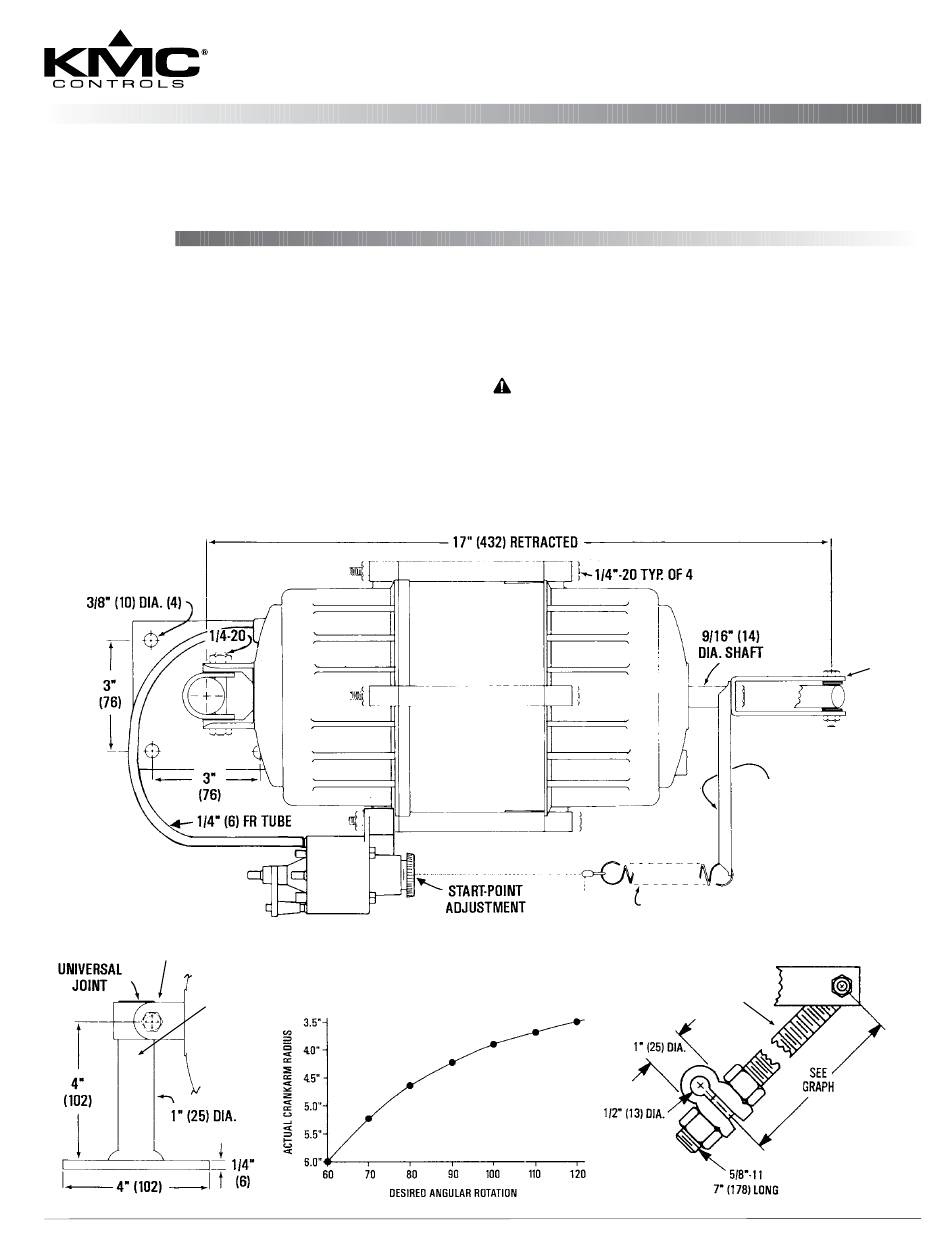

1. Align the actuator with the controlled device. The
mounting joint allows the actuator to be located
in a different plane from the controlled device.
2. Attach the actuator to the rigid surface.
3. Adjust the crank arm assembly length (see the
chart) to provide the (minimum 60° to maximum
120°) rotation as required.
BRACKET
MOUNTING POST
(Not Included)
MCP-1060 Series
Installation Guide
4. Do NOT tighten the universal joint. The actuator
5. See the Connection section on the next page.
1
6" Pneumatic Damper Actuator
must be free to swivel as it operates.
CAUTION
Pneumatic devices must be supplied with clean, dry
control air. Any other medium (e.g., oil or moisture
contamination) will cause the device to fail.
All dimension are in inches (mm)
FEEDBACK SPRING
CRANK ARM
MCP-1060 Series
CLEVIS
ALTERNATE
FEEDBACK
SPRING
Installation Guide
