KMC Controls MCP-1040 Series Installation Manual

KMC Controls MCP-1040 Series Installation Manual

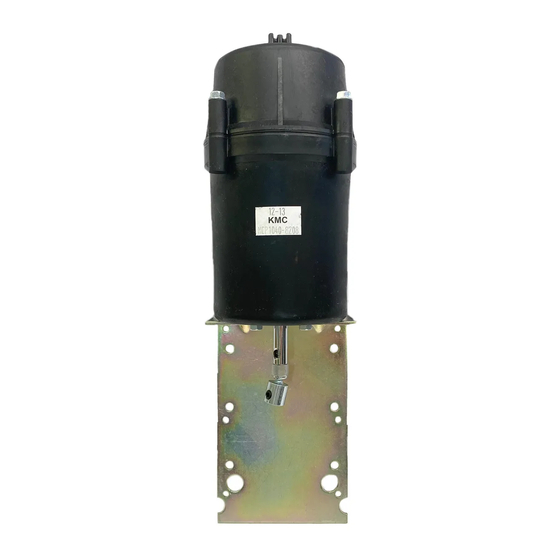

4" pneumatic damper actuator

Advertisement

Quick Links

Mounting
Post
NOTE: Post mounting is typically used for internal
duct mounting.
1. Position the damper for its "normal" position.
2. Connect the damper's blade clip or drive arm
with the clevis pin and cotter pin.
3. Mount the offset bracket to either the damper
frame or the duct.
4. Check that the linkage will not bind as the shaft
extends and retracts.

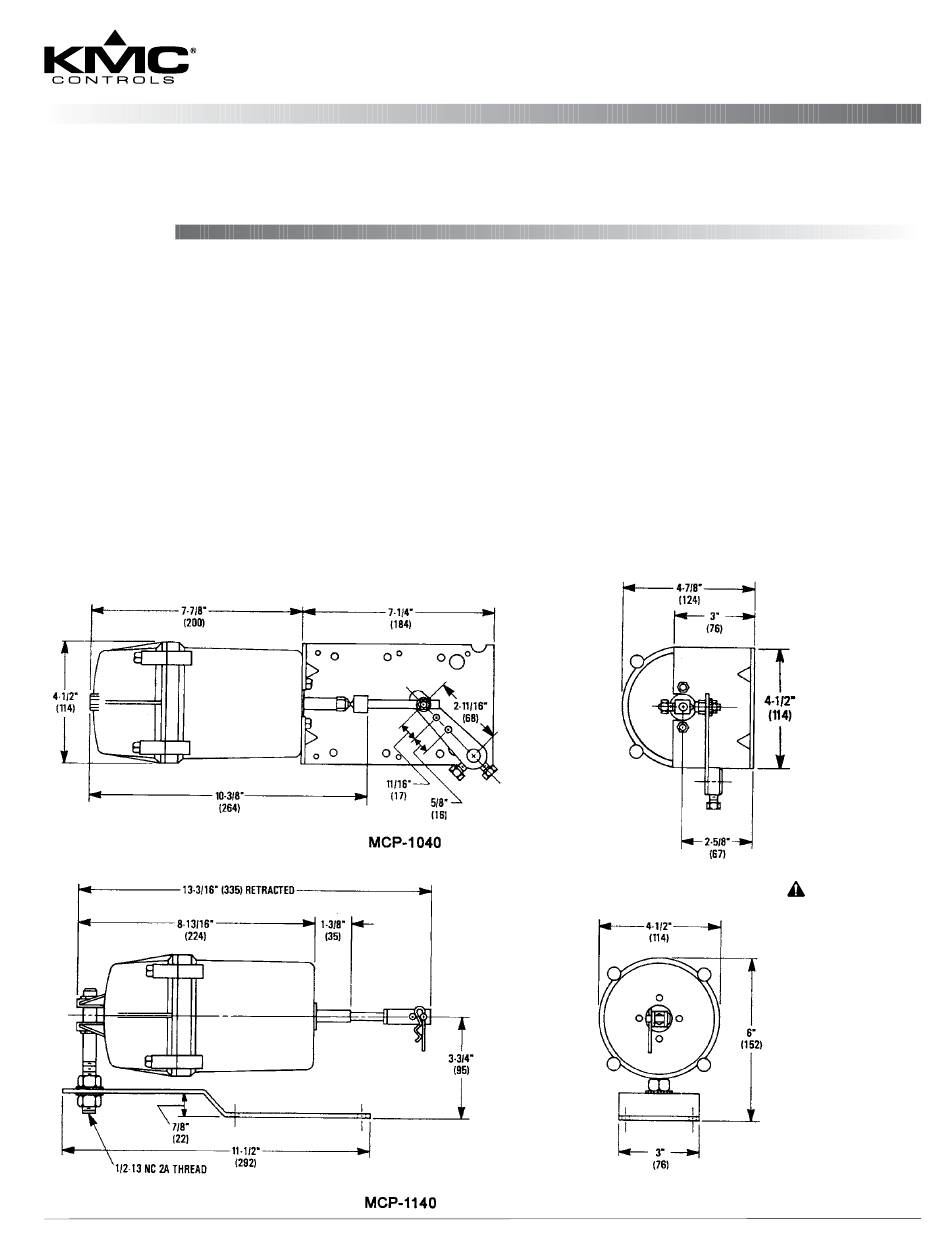

MCP-1040/1140 Series
Installation Guide
Right Angle
NOTE: Right-angle mounting is typically used for
1. Slide the crank arm over the damper shaft.
2. Determine whether the damper shaft must rotate
3. Locate the half-circle cutouts on the outside
4. Place the appropriate half circle cutout over
1
4" Pneumatic Damper Actuator
external duct mounting.
clockwise (CW) or counterclockwise (CCW).
corners of the bracket.
(for clockwise rotation) or under (for counter
clockwise rotation) the damper shaft).
MCP-1040/1140 Series
CAUTION
Pneumatic
devices must
be supplied
with clean,
dry control
air. Any other
medium (e.g.,
oil or moisture
contamination)
will cause the
device to fail.
Installation Guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the MCP-1040 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for KMC Controls MCP-1040 Series

  • Page 1 4" Pneumatic Damper Actuator MCP-1040/1140 Series Installation Guide Mounting Post Right Angle NOTE: Post mounting is typically used for internal NOTE: Right-angle mounting is typically used for duct mounting. external duct mounting. 1. Position the damper for its “normal” position. 1.
  • Page 2 5. Check for any binding. Fine tuning can be Inc. makes no representations or warranties with respect accomplished by adjusting the balljoint on the to this document. In no event shall KMC Controls, Inc. pushrod. be liable for any damages, direct or incidental, arising out of or related to the use of this document.

This manual is also suitable for:

Mcp-1140 series
